Fog Lamp Replacement

REMOVAL
1. Disconnect the fog lamp harness connector.
2. Rotate the bulb socket 1/4 turn counter clockwise.

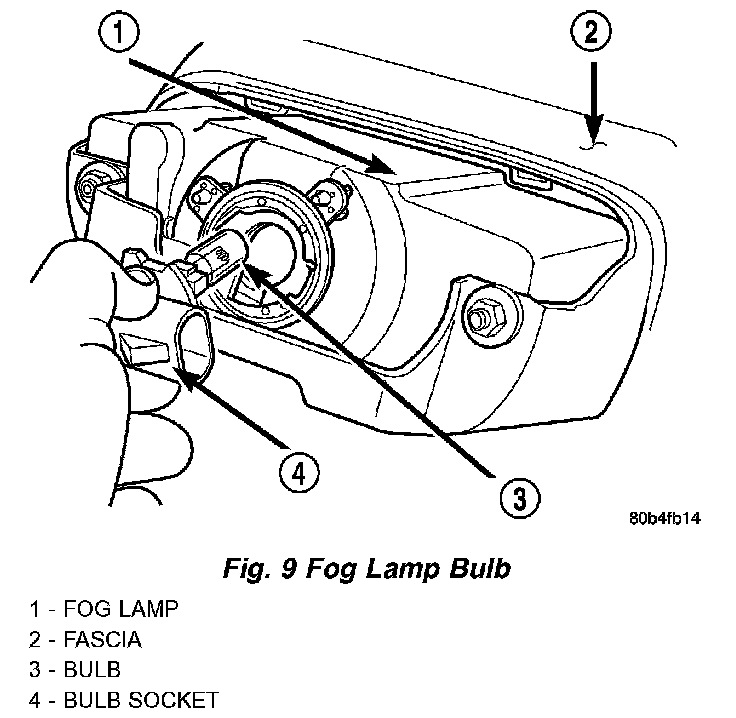

Fig.9 Fog Lamp Bulb:

3. Remove the bulb socket from lamp.

INSTALLATION

CAUTION: Do not touch the bulb glass with fingers or other oily surfaces. Reduced bulb life will result.

1. Position the bulb socket in fog lamp.
2. Rotate the bulb socket 1/4 turn clockwise.
3. Connect the fog lamp harness connector.
