Idle Speed/Throttle Actuator - Electronic: Locations

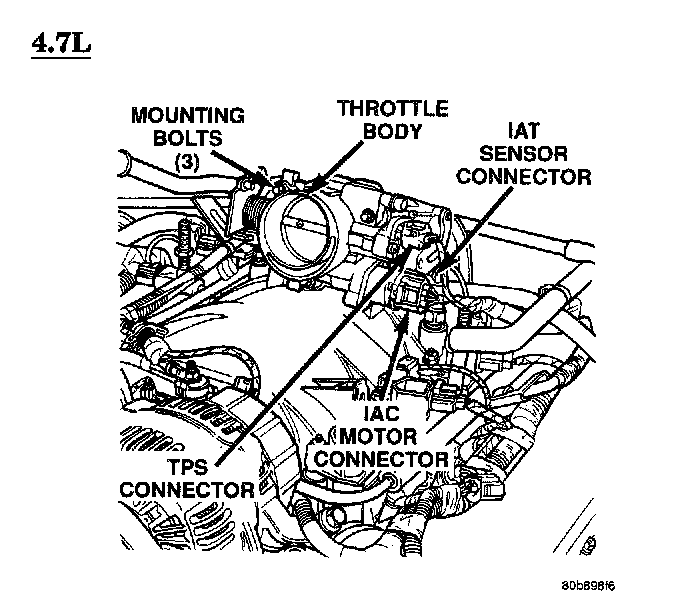

4.7L:




The IAC motor is located on the throttle body.
