Hydraulic Fan Operation
Hydraulic Fan Operation

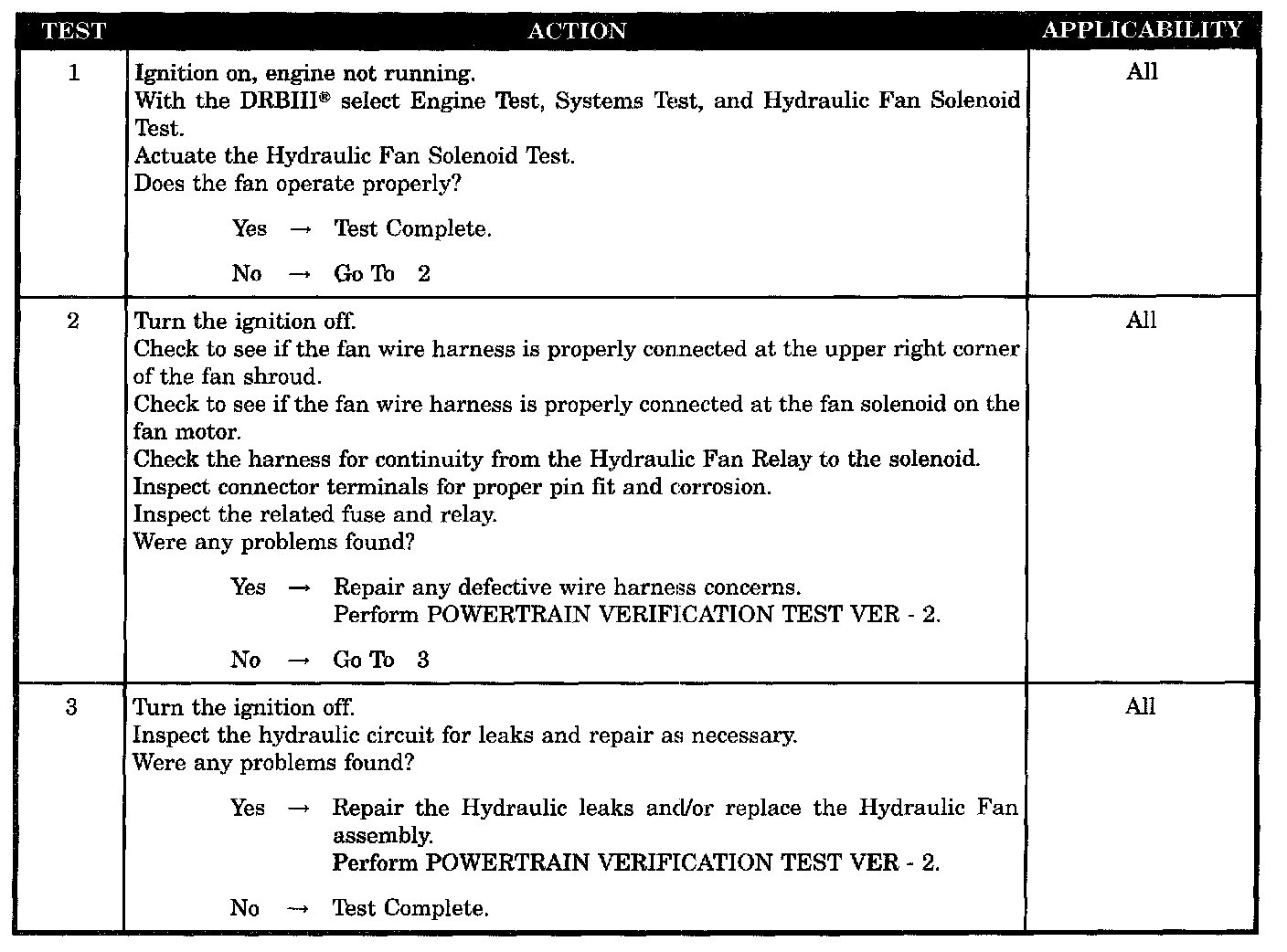

Test 1 - 3:
SYMPTOM
HYDRAULIC FAN OPERATION
POSSIBLE CAUSES
-
Harness inspection
-
Hydraulic fan
