Home >> Jeep Truck >> 2005 >> TJ (CANADA) L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Coolant Temperature Sensor / Switch HVAC >> Locations

Coolant Temperature Sensor / Switch HVAC: Locations

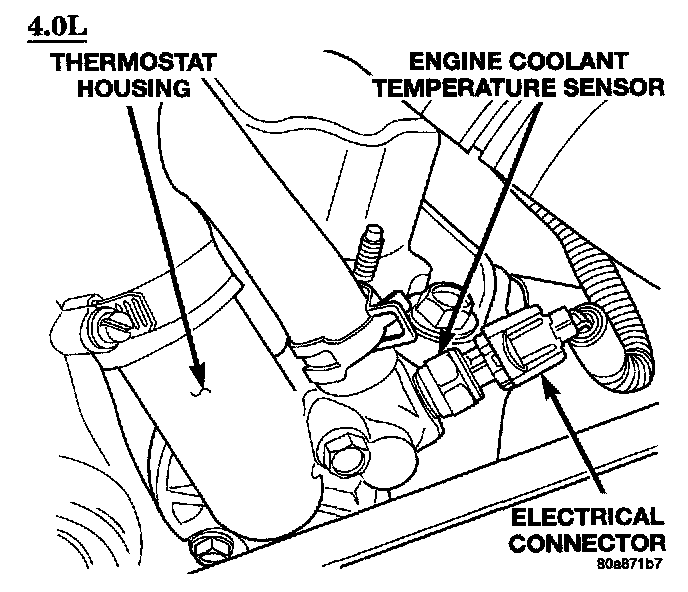

4.0L:

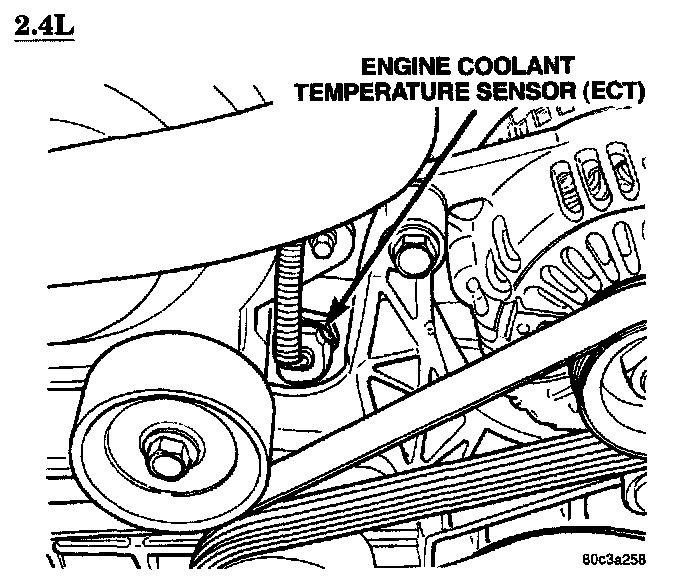

2.4L:
