Power Mirror Switch: Testing and Inspection







Mirror switch
1. Remove the power window main switch.

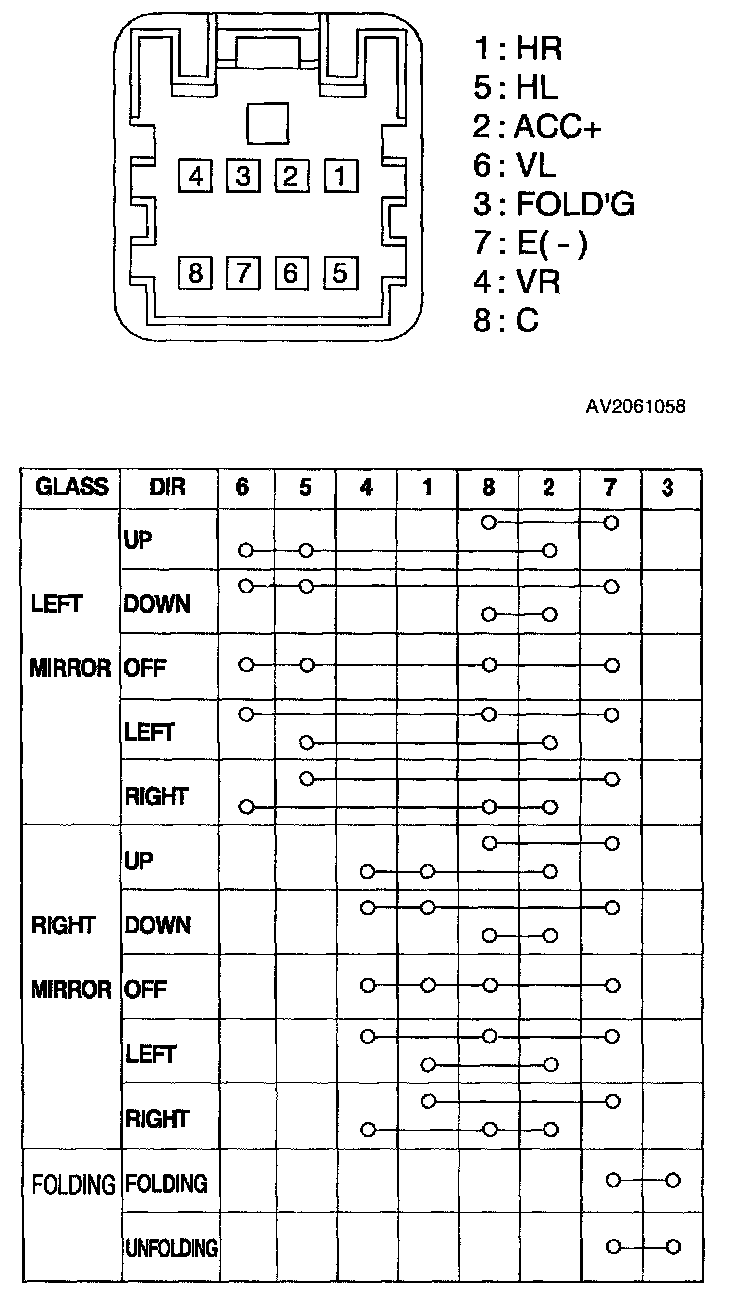

2. Operate the switch and check for continuity between the terminals. If continuity is not as specified, replace the mirror switch.
