Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia Truck
>>
2002
>>
Sedona EX V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Power Outlet
Auxiliary Power Outlet

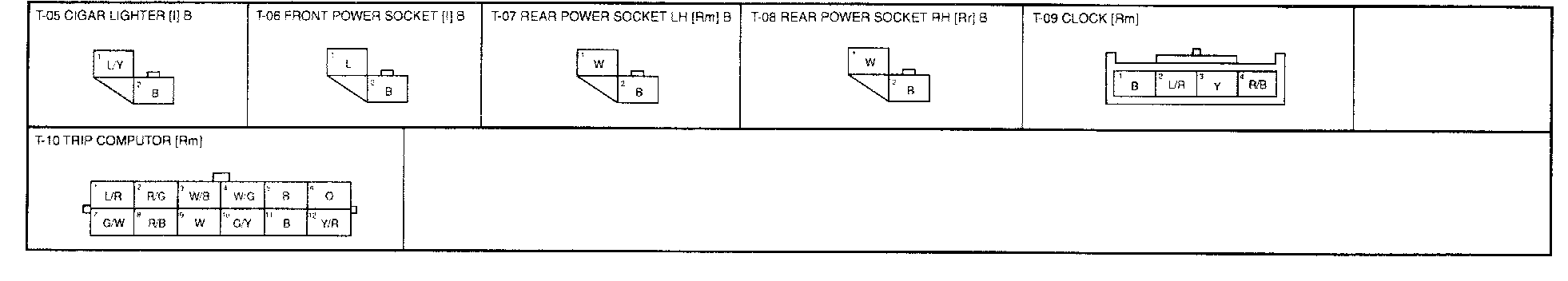

T-2 - Cigar Lighter, Power Socket, Clock Connectors:
