Power Distribution - Passenger Compartment Fuse Box

SOURCE: Kia Technician Times

TITLE: Passenger Compartment Fuse Box

APPLIES TO: Sedona

SERVICE TIP:

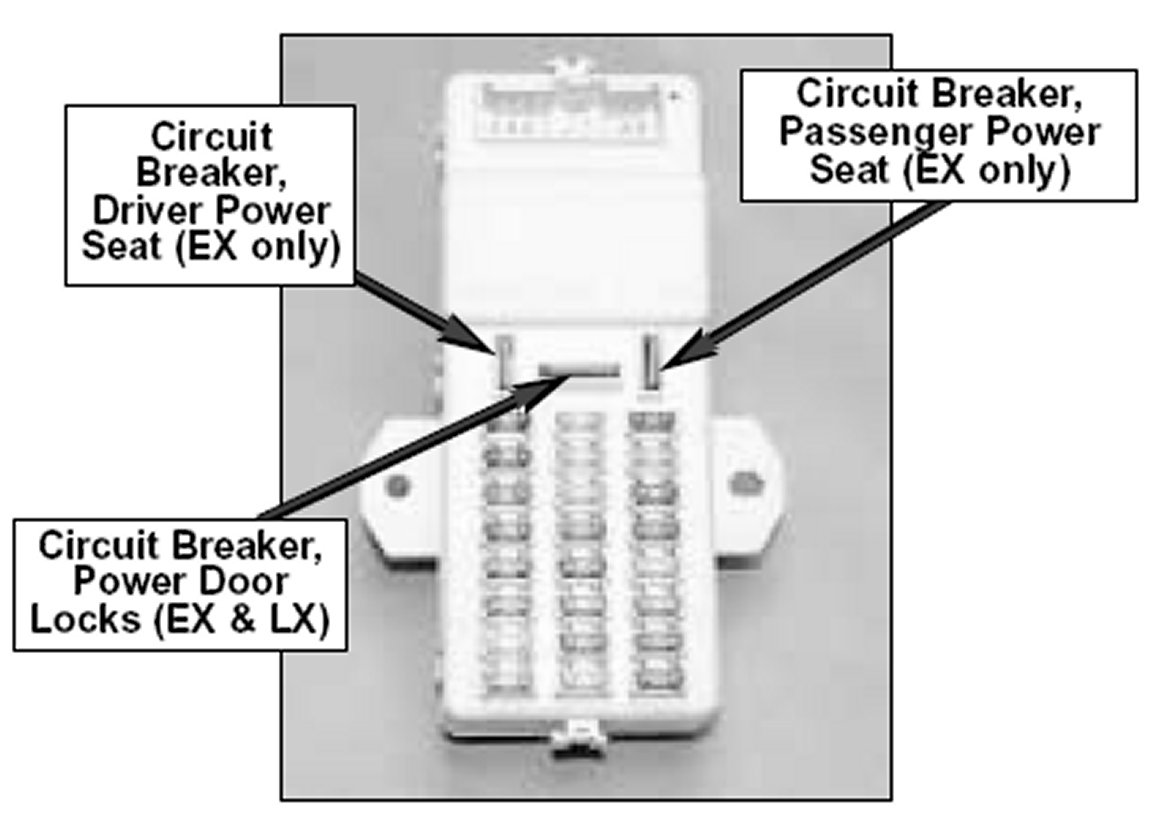

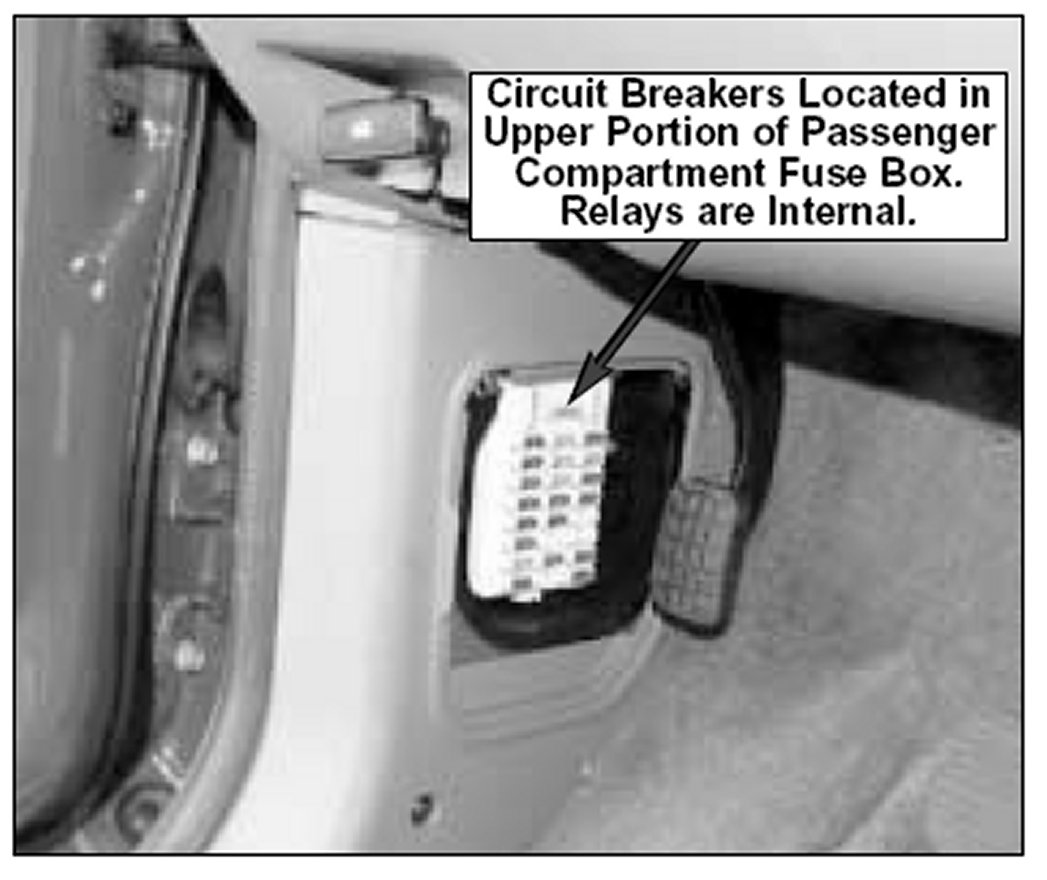

The passenger compartment fuse box in Sedona is a new, integrated type. In addition to the fuses, the box also houses 6 relays and 3 circuit breakers. The solid state, automatic re-setting circuit breakers are for the power seats (EX only) and for the power door locks (LX and EX).

The relays are for Windshield Defroster, Wiper, Cigar lighter/Power outlets and A/T control. Two of the six relays are not used for U.S. spec. vehicles. The ETM identifies the circuit protection (20 Amps) in the same way it would identify a fuse. The circuit breakers and relays are integral parts of the Sedona passenger compartment fuse box; they are soldered in and not available separately.
