Kia Truck
>>
2002
>>
Sedona EX V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

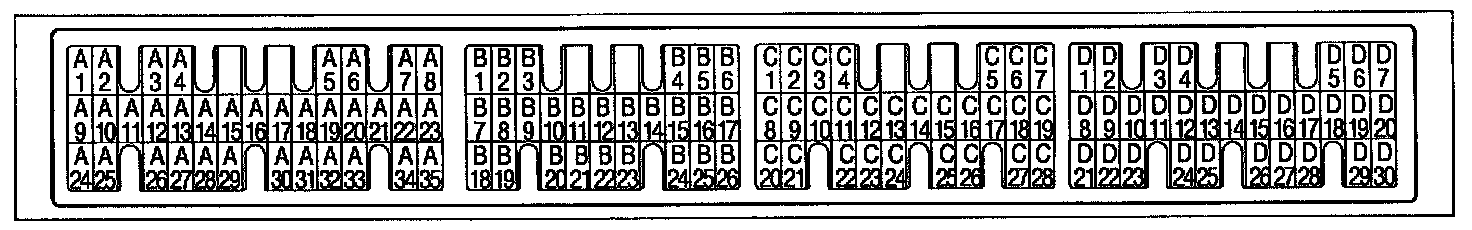

ECM Terminal Layout:

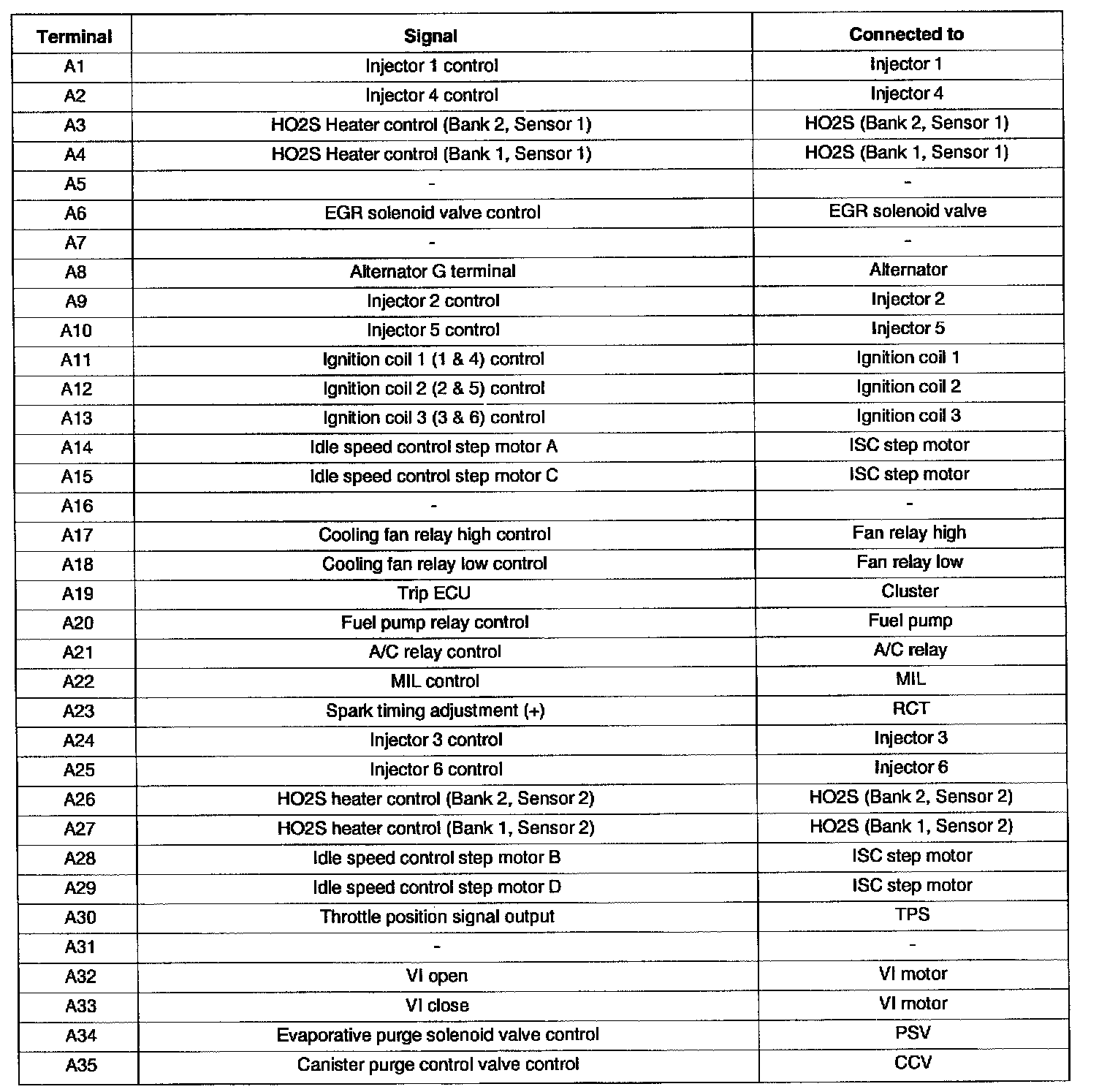

Connector B-01(A) (A1 - A35):

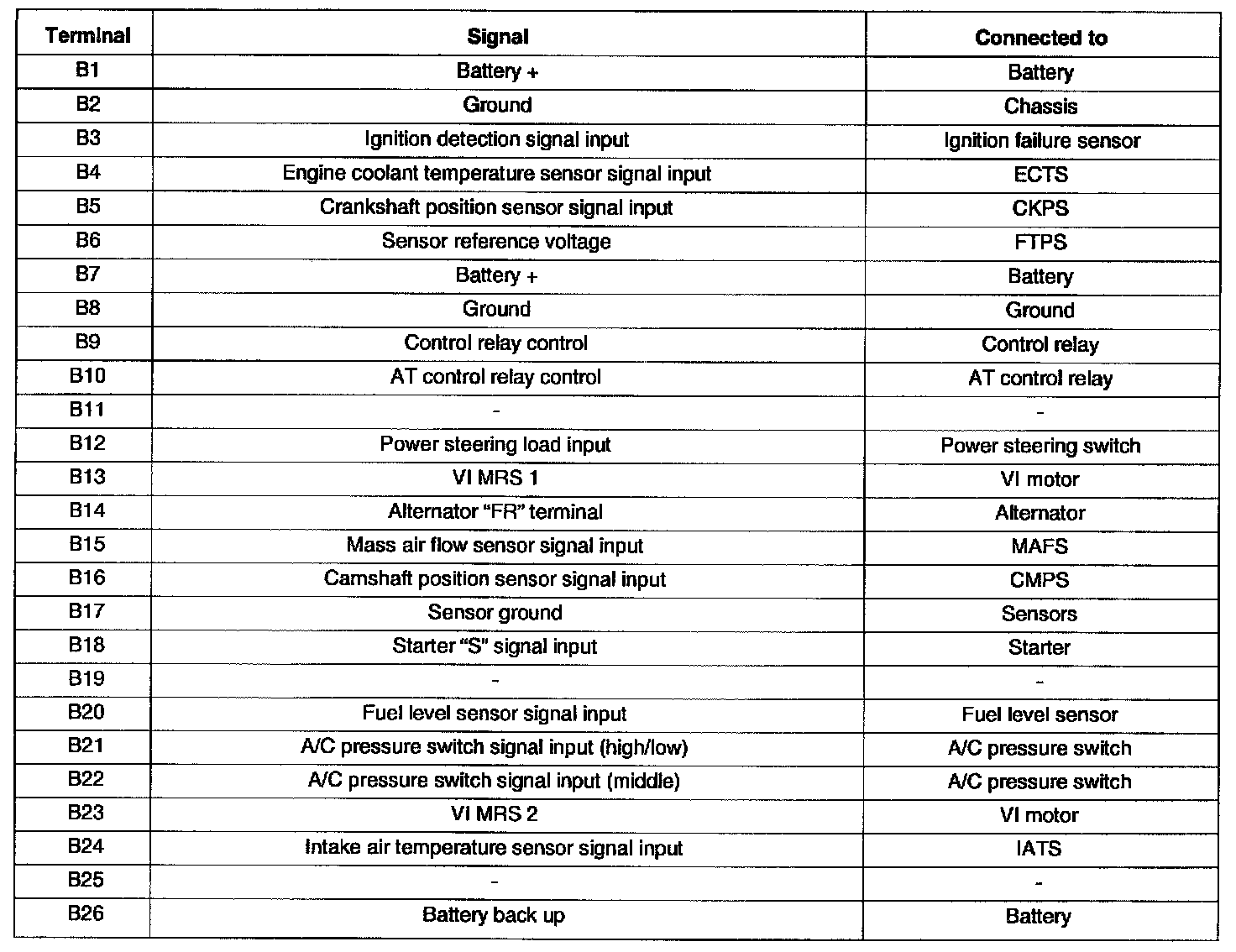

Connector B-01(B) (B1 - B26):

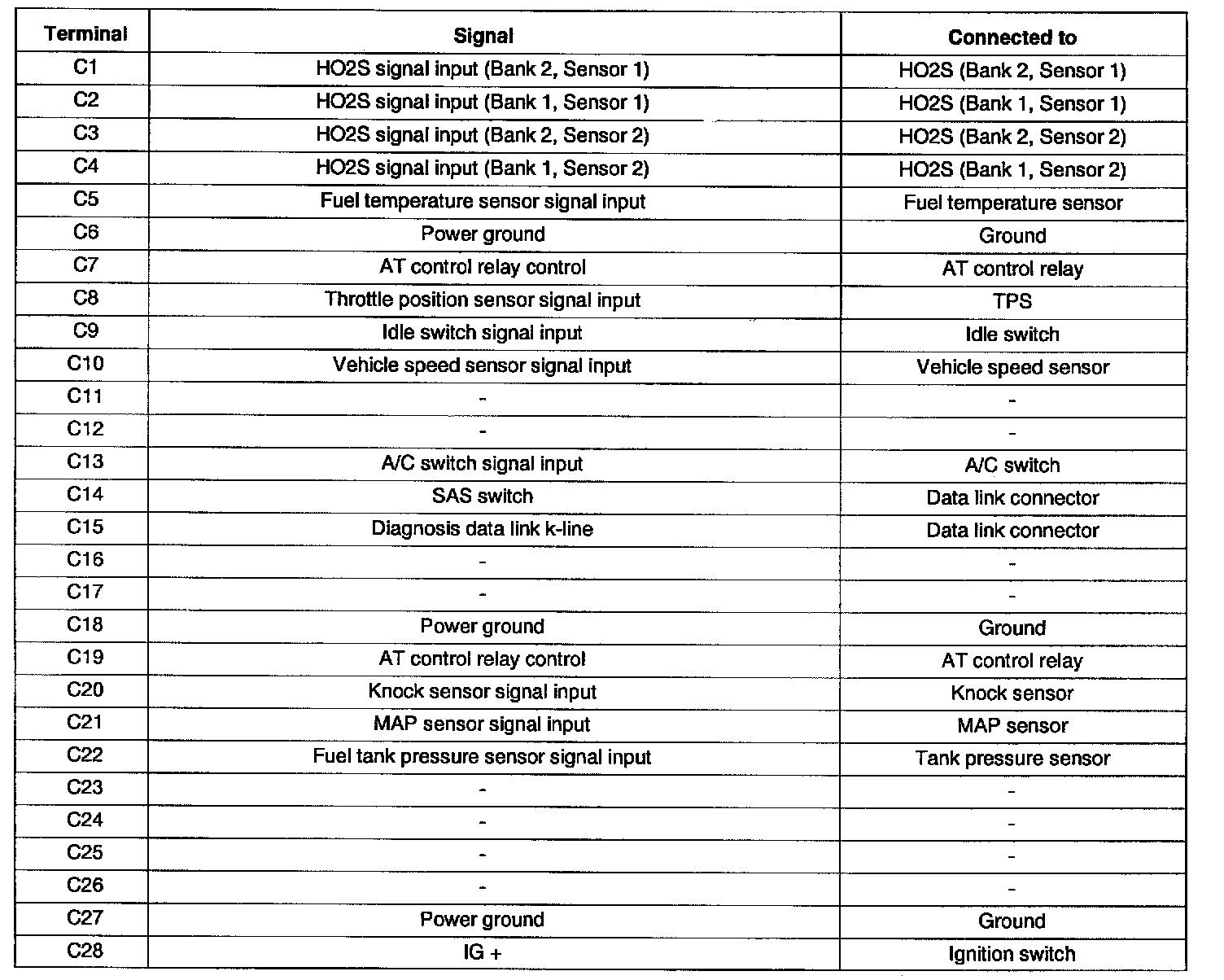

Connector B-01(C) (C1 - C28):

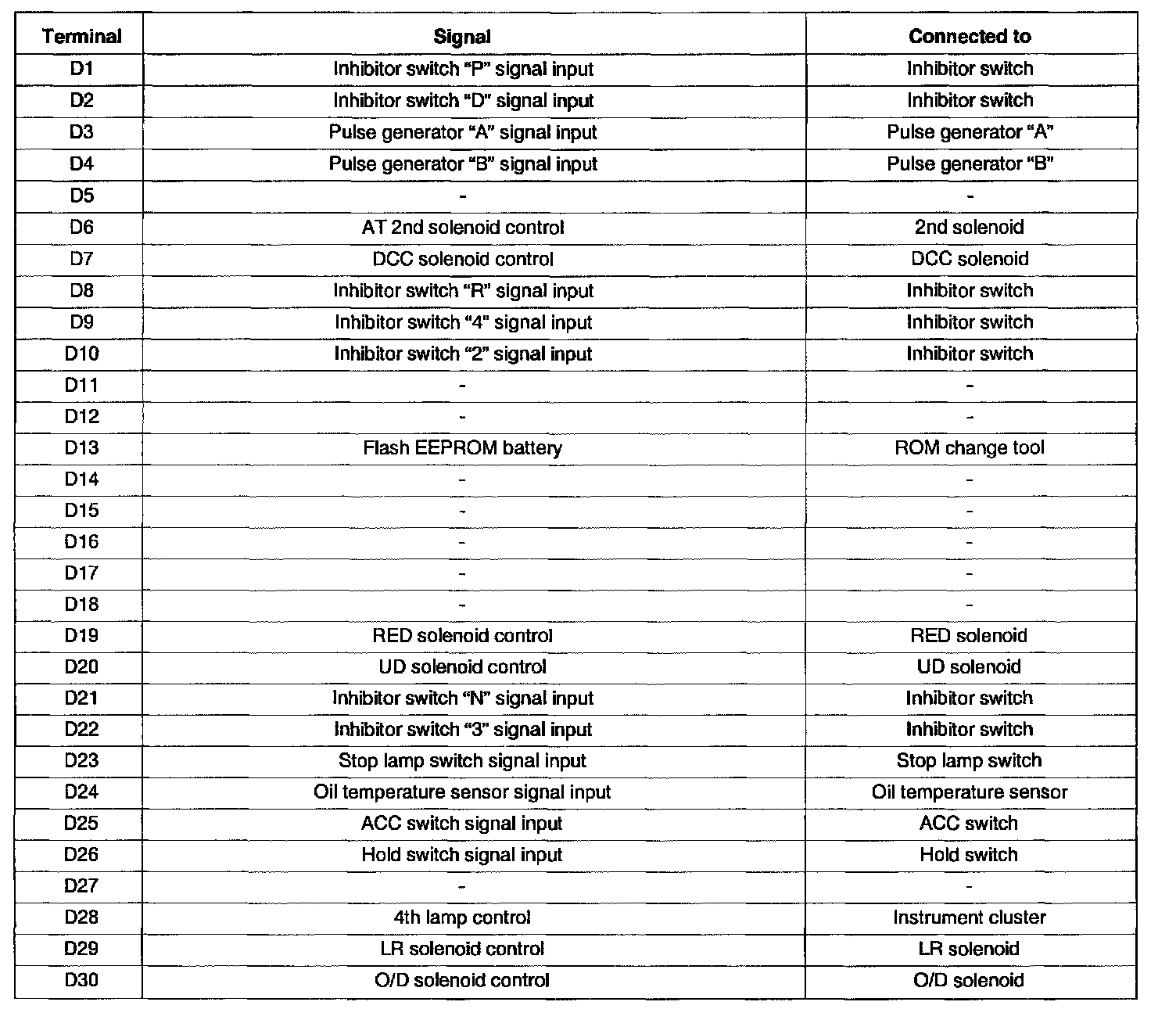

Connector B-01(D) (D1 - D30):
