Engine Coolant Temperature (ECT) Sensor
Engine Coolant Temperature (ECT) Sensor

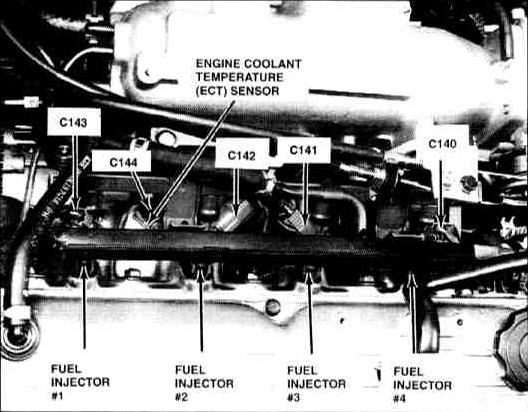

Center of Engine

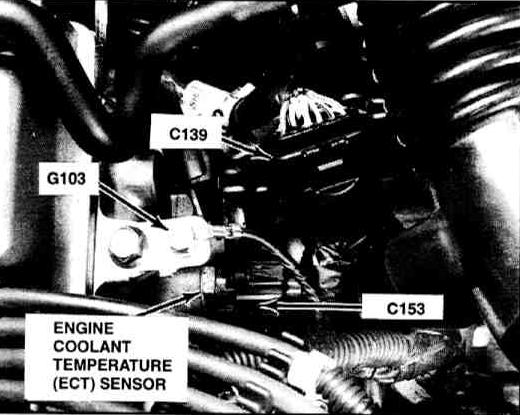

Left Side of Engine Compartment
