ESP (Electronic Stability Program)
>>
Internal Block Diagram
Internal Block Diagram

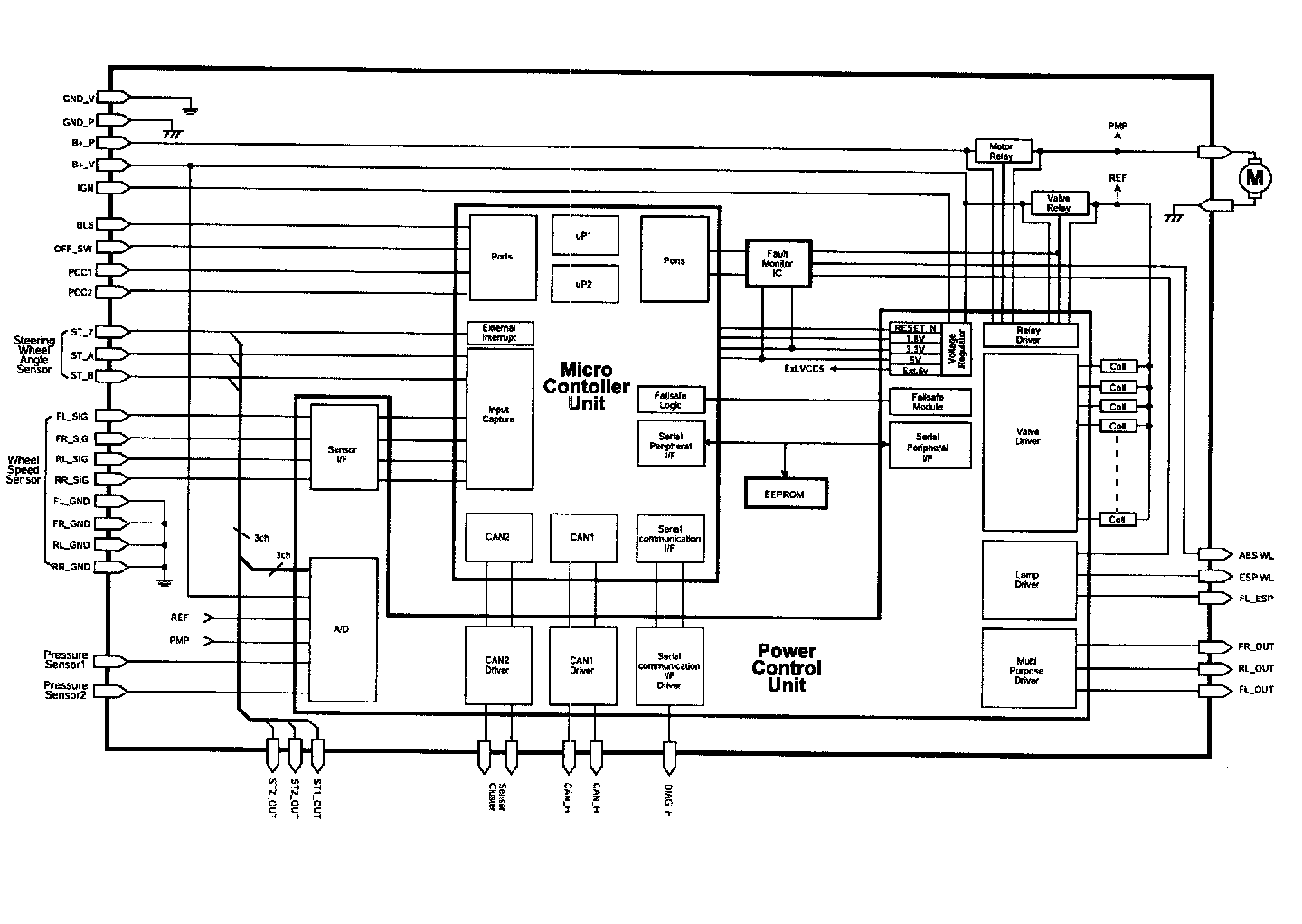

INTERNAL BLOCK DIAGRAM
