Home
>>
Kia
>>
2012
>>
Rio L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Input / Output Jack, Entertainment System
>>
AUX & USB Jack (UVO)
AUX & USB Jack (UVO)

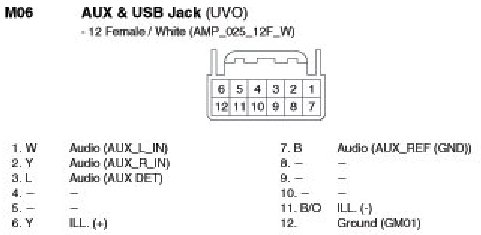

M06 AUX & USB Lack (UVO):
