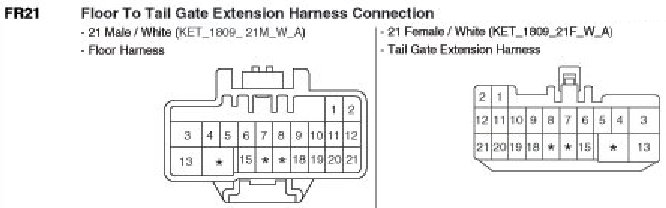

FR21 Floor To Tail Gate Extension Harness Connection

FR21 Floor To Tail Gate Extension Harness Connection:
