Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> RR11 Tail Gate To Tail Gate Extension Harness Connection

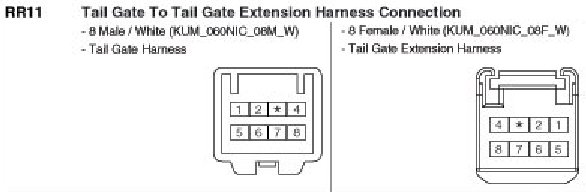

RR11 Tail Gate To Tail Gate Extension Harness Connection

RR11 Tail Gate To Tail Gate Extension Harness Connection:
