System Diagram

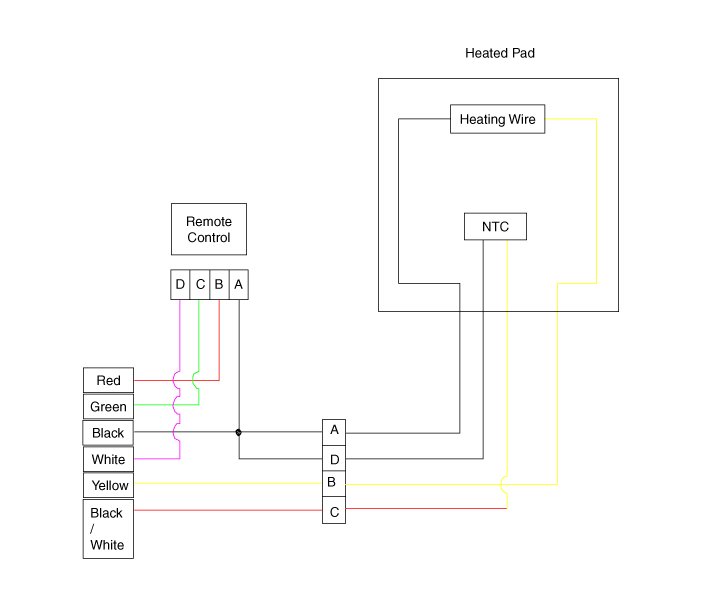

System Circuit Diagram








Terminal Function

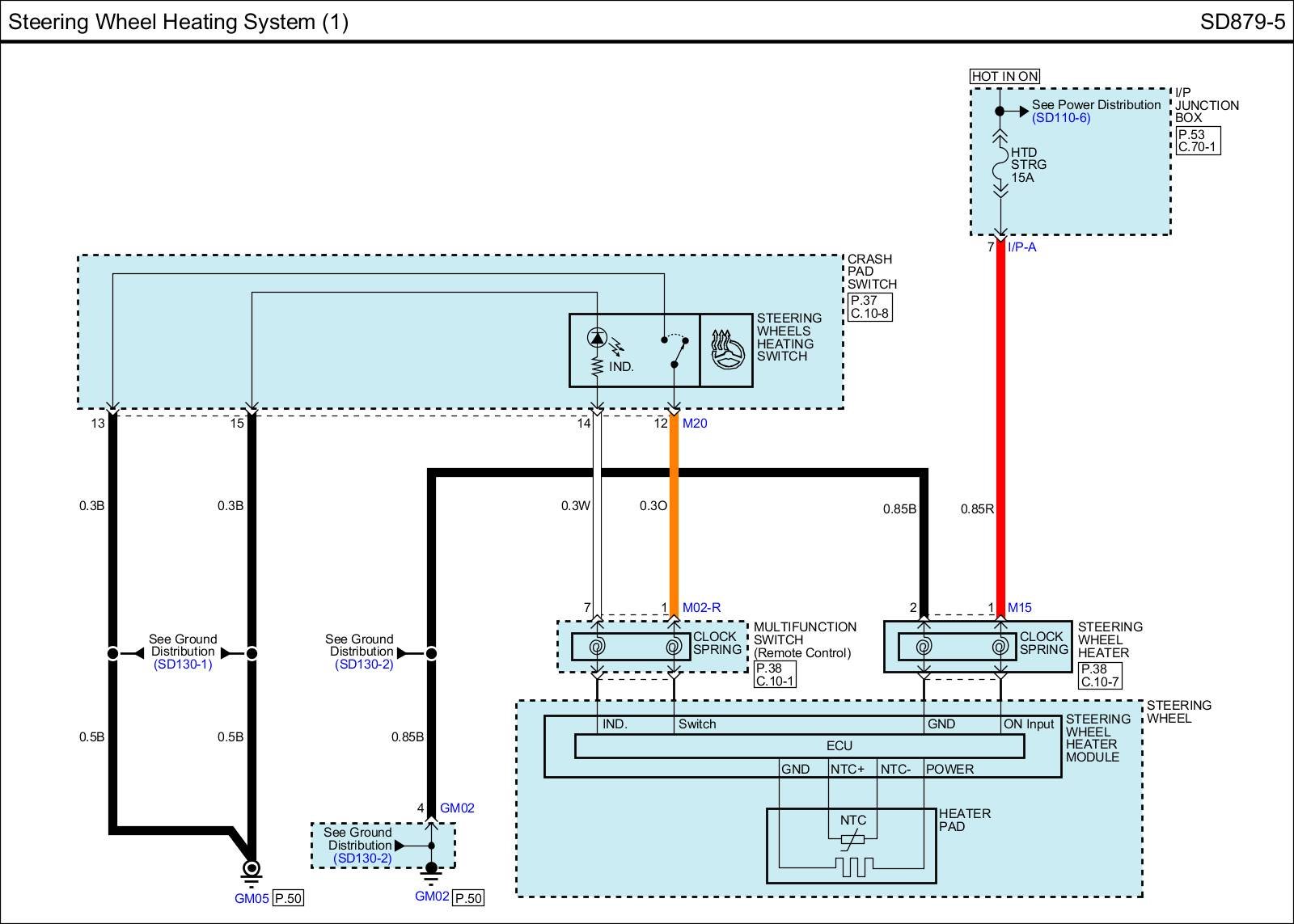

SD879-5 Steering Wheel Heating System (1):
