Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G410
G410

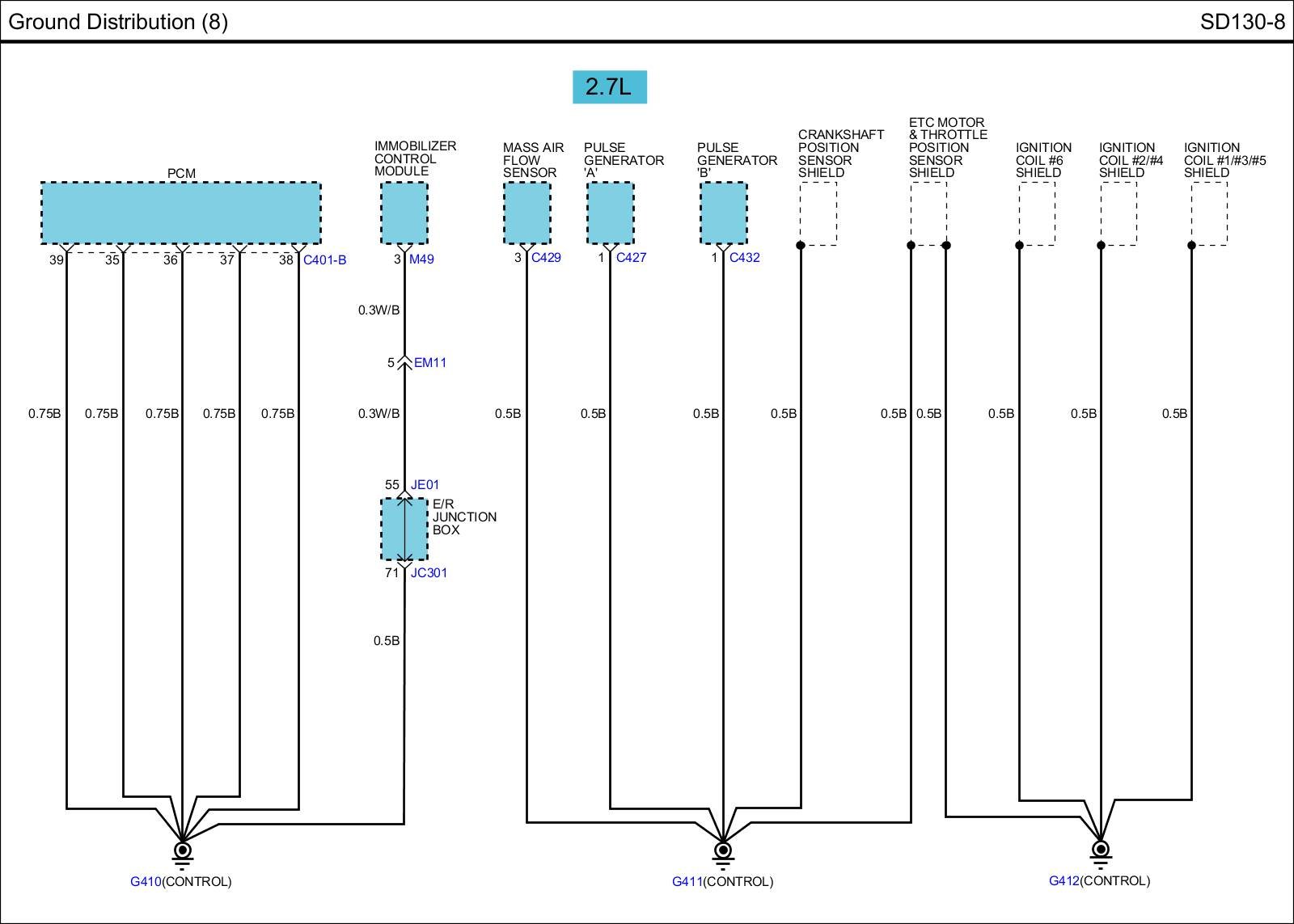

SD130-8 Ground Distribution (8):
