Home >> Kia >> 2012 >> Rondo (CANADA) V6-2.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection

Automatic Transmission/Transaxle: Testing and Inspection

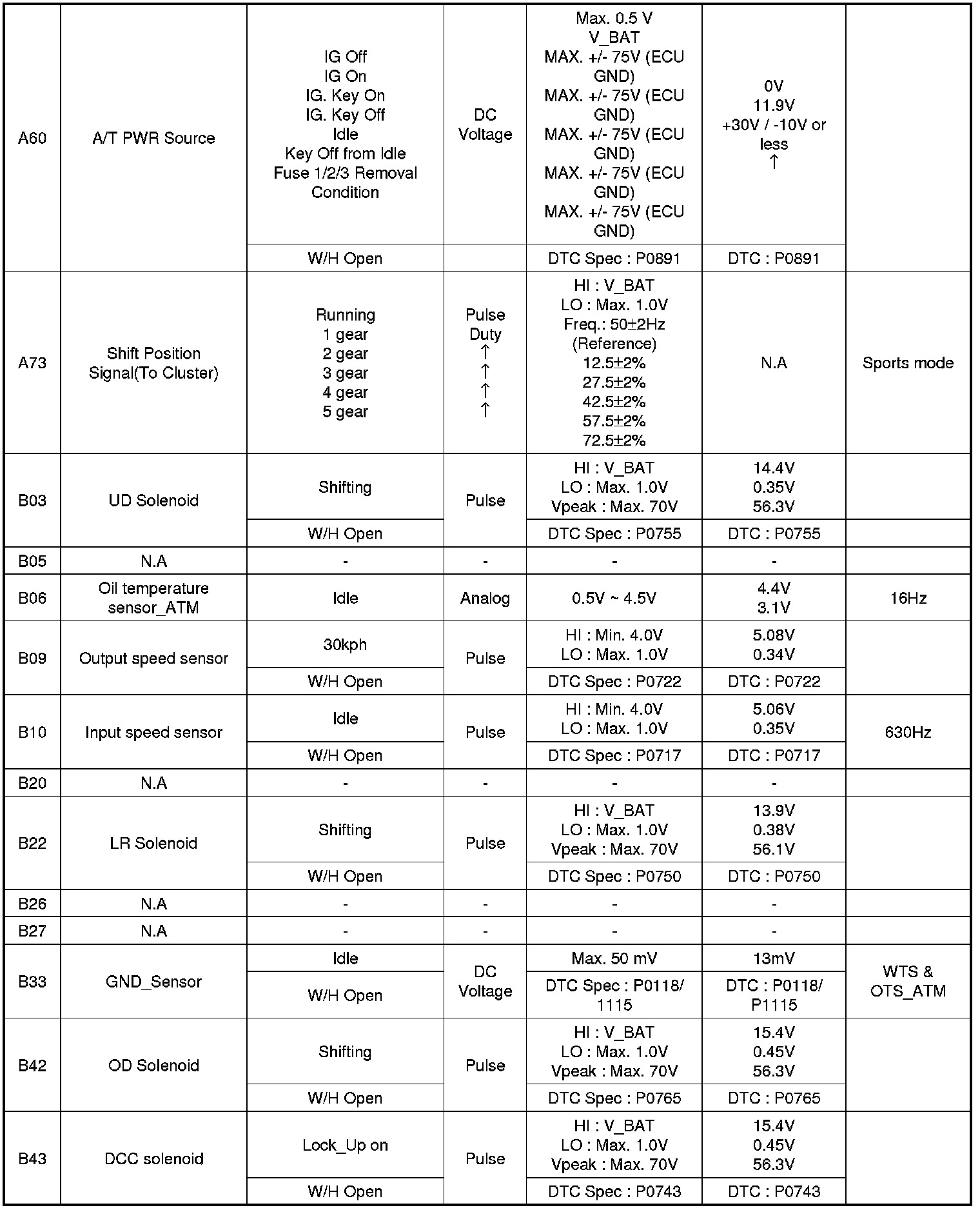

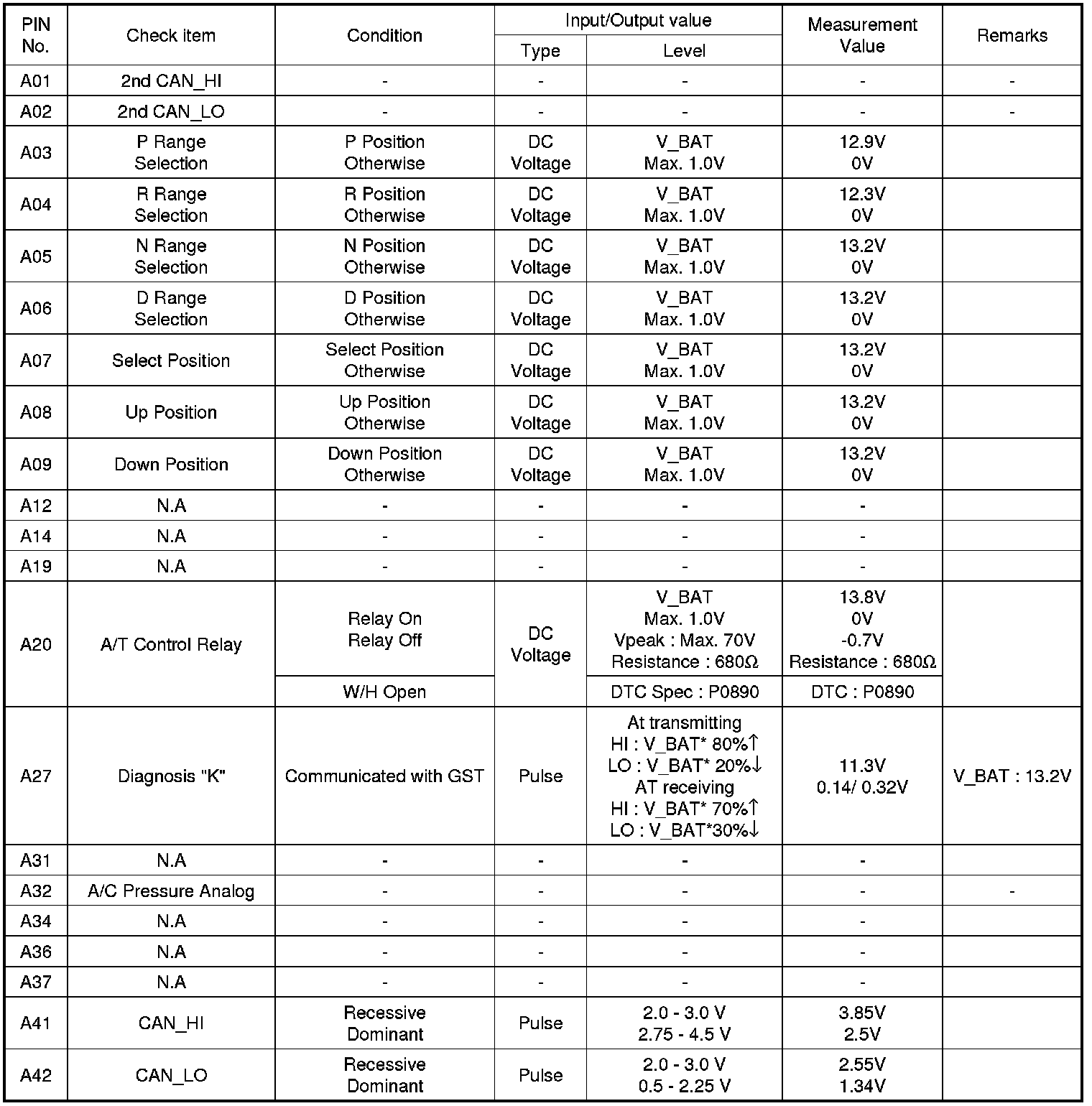

INPUT/OUTPUT SIGNAL VOLTAGE CHECK SHEET
