Electrical Diagrams

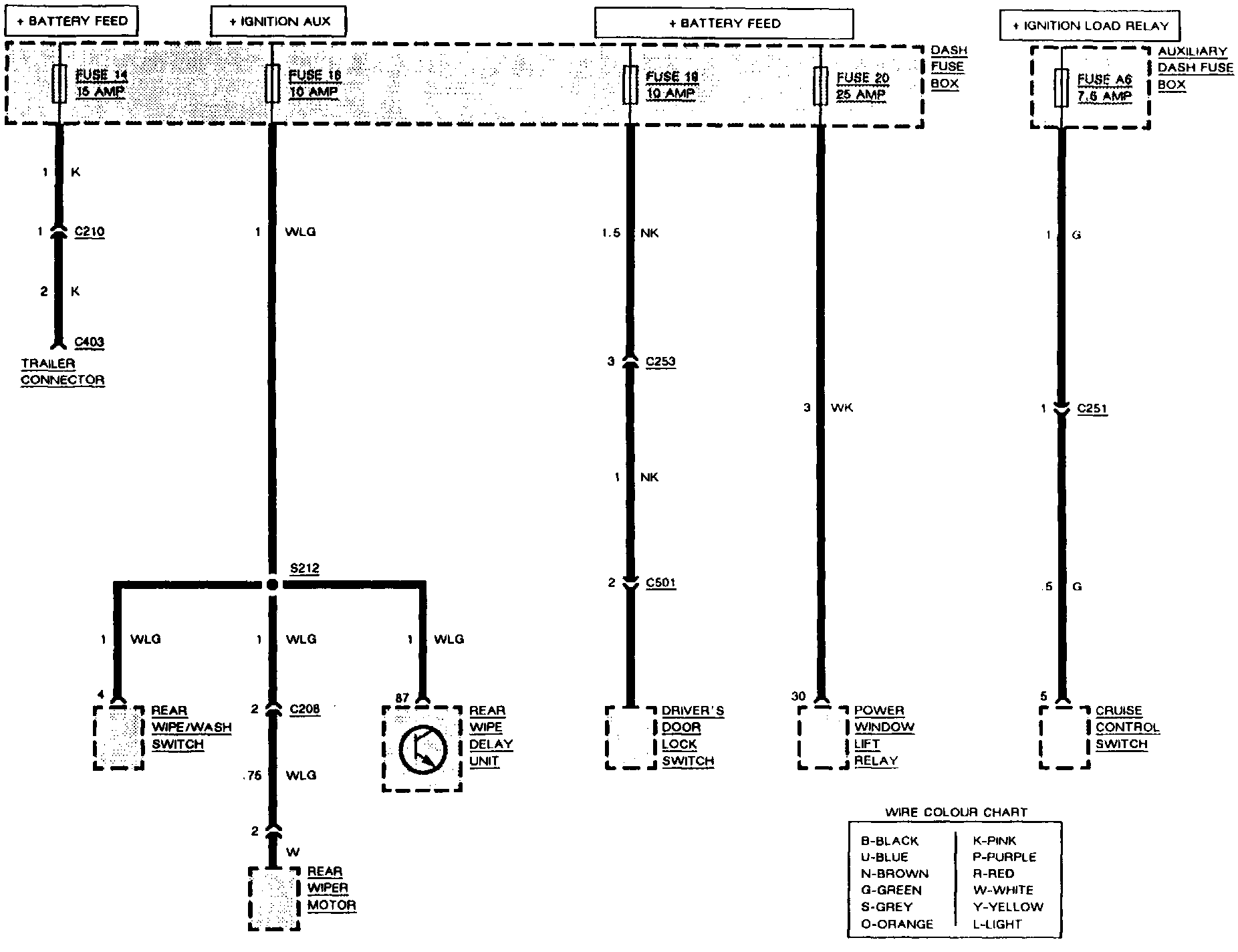

Fig. 13:

Fig. 13

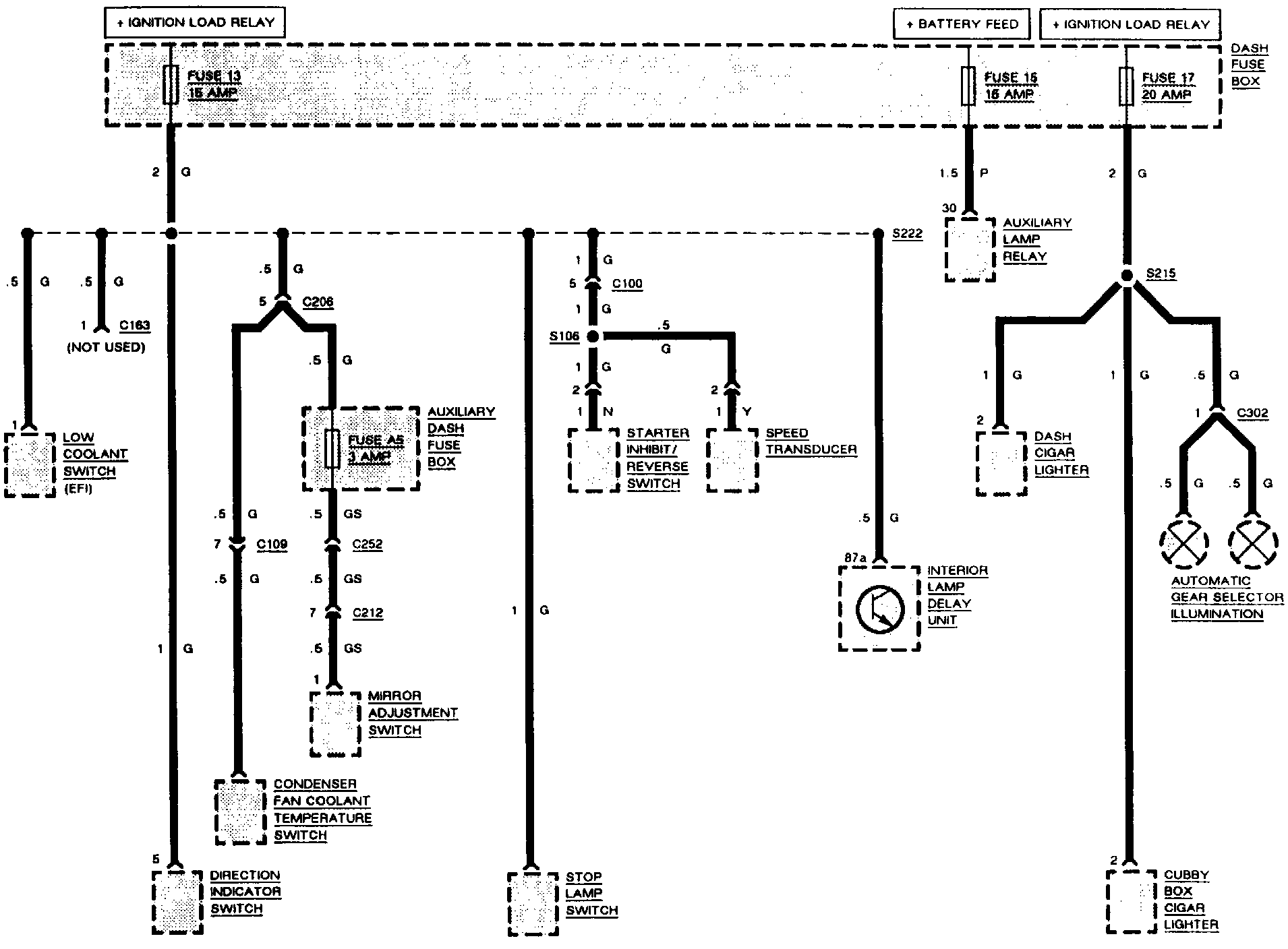

14:

Fig. 14

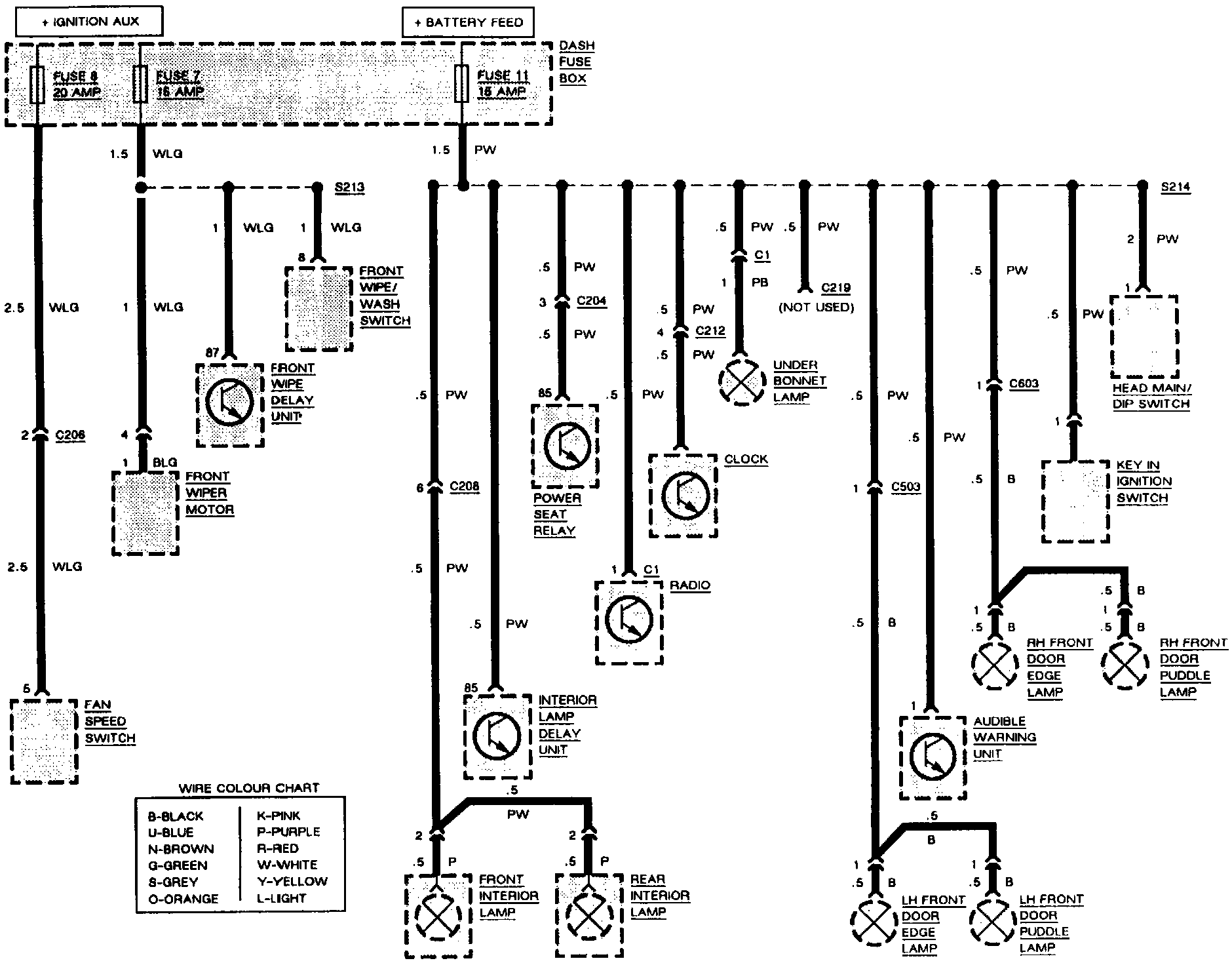

Fig. 15:

Fig. 15

The wiring diagrams relate to the fuse block and are only part of the complete wiring diagram.

To view any additional Fig. # referred to in these diagrams, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams. Diagrams By Figure Number
