Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2009
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

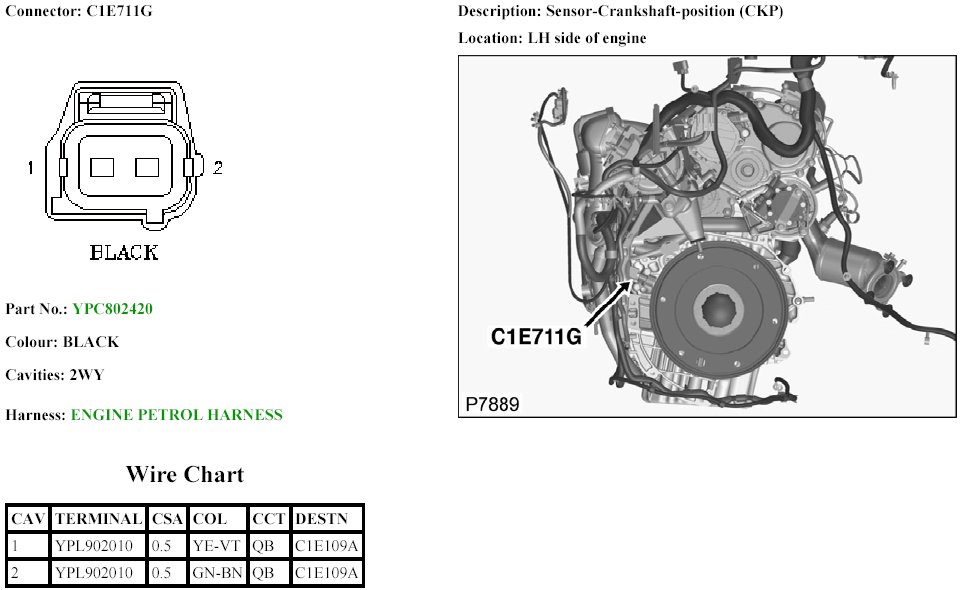

Crankshaft Position Sensor
Crankshaft Position Sensor
C1E711G:
