Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2009
>>
Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>

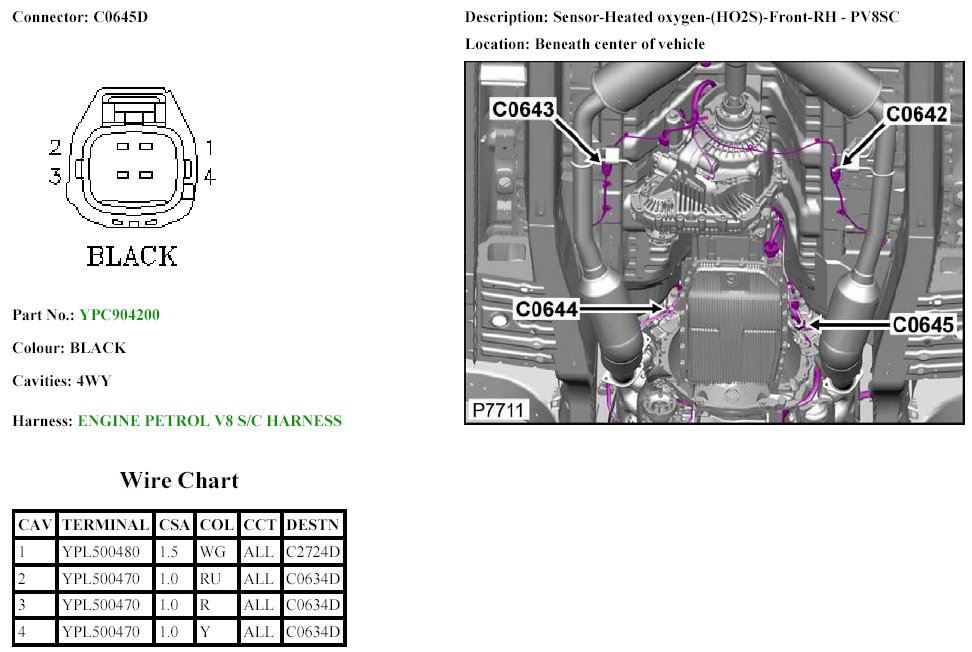

Sensor-Heated Oxygen-(HO2S)-Front-RH-PV8SC
Sensor-Heated Oxygen-(HO2S)-Front-RH-PV8SC
Sensor-Heated Oxygen-(HO2S)-Front-RH-PV8SC
C0645D:
