Home >> Land Rover >> 2012 >> Range Rover Sport (LS) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor >> C0721 Motor-Seat Forward-Rearward

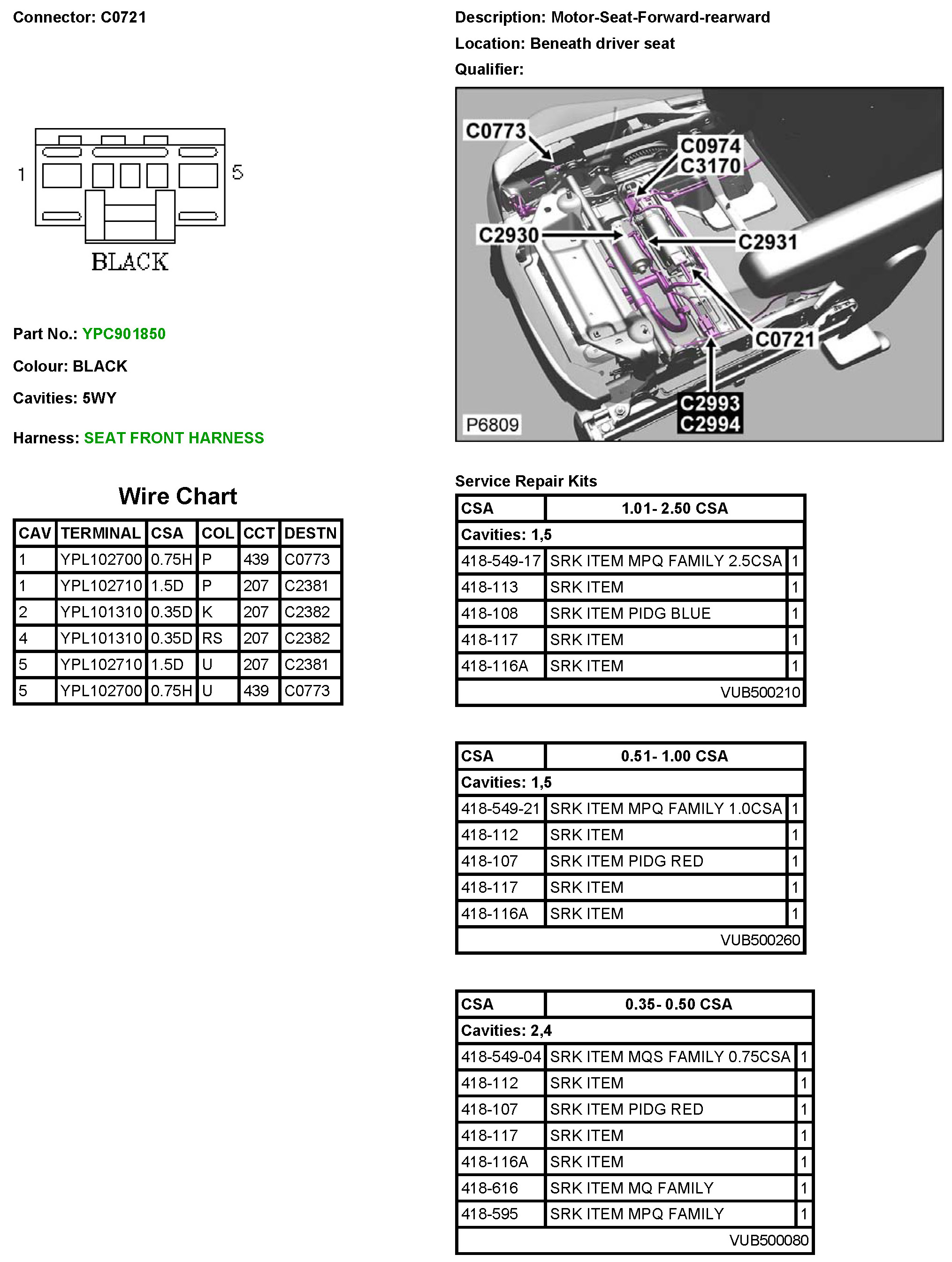

C0721 Motor-Seat Forward-Rearward



C0721
