ABS Light: Testing and Inspection

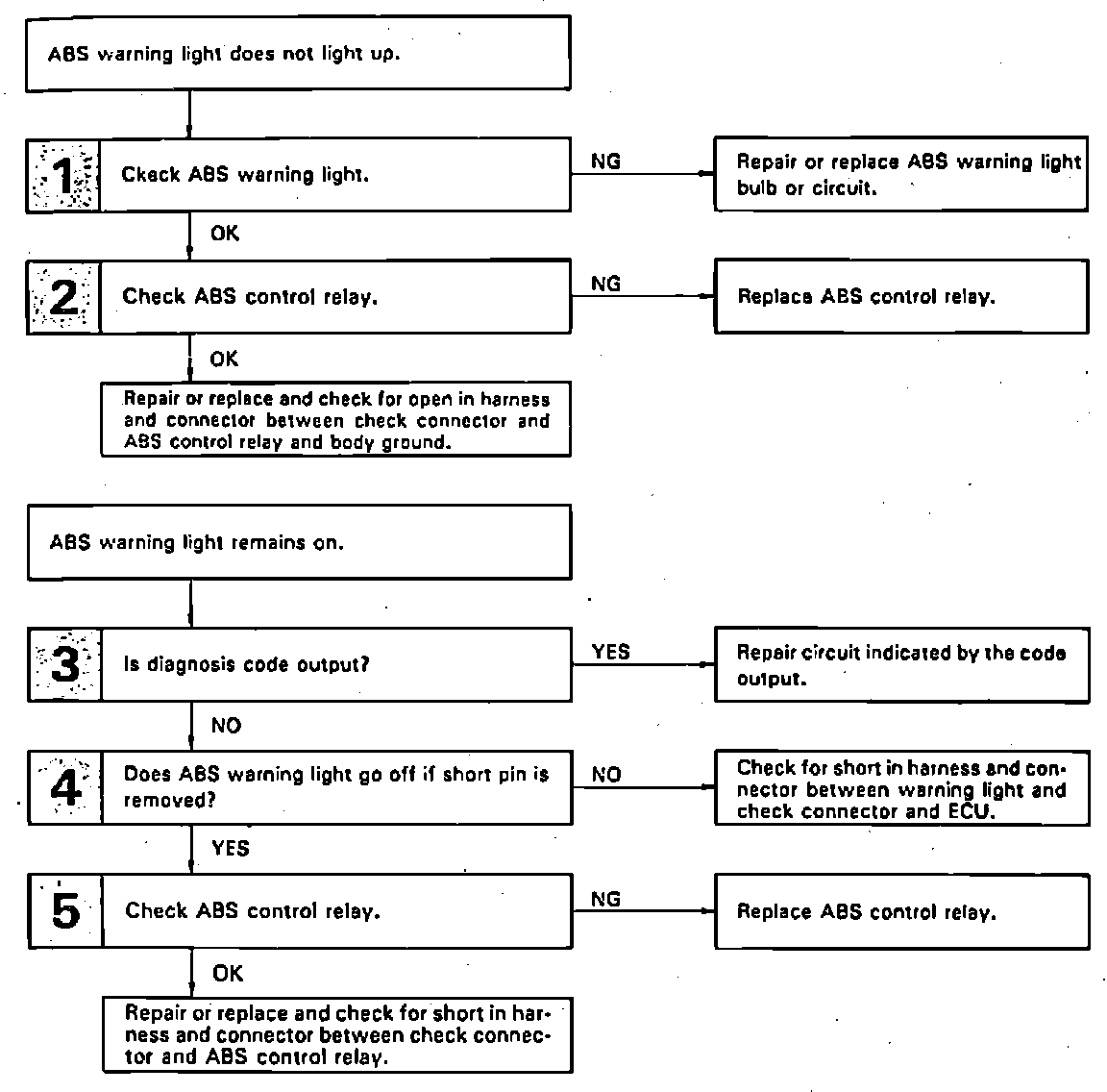

Fig. 47 ABS Warning Light Circuit Inspection & Testing (Part 1 Of 4).:

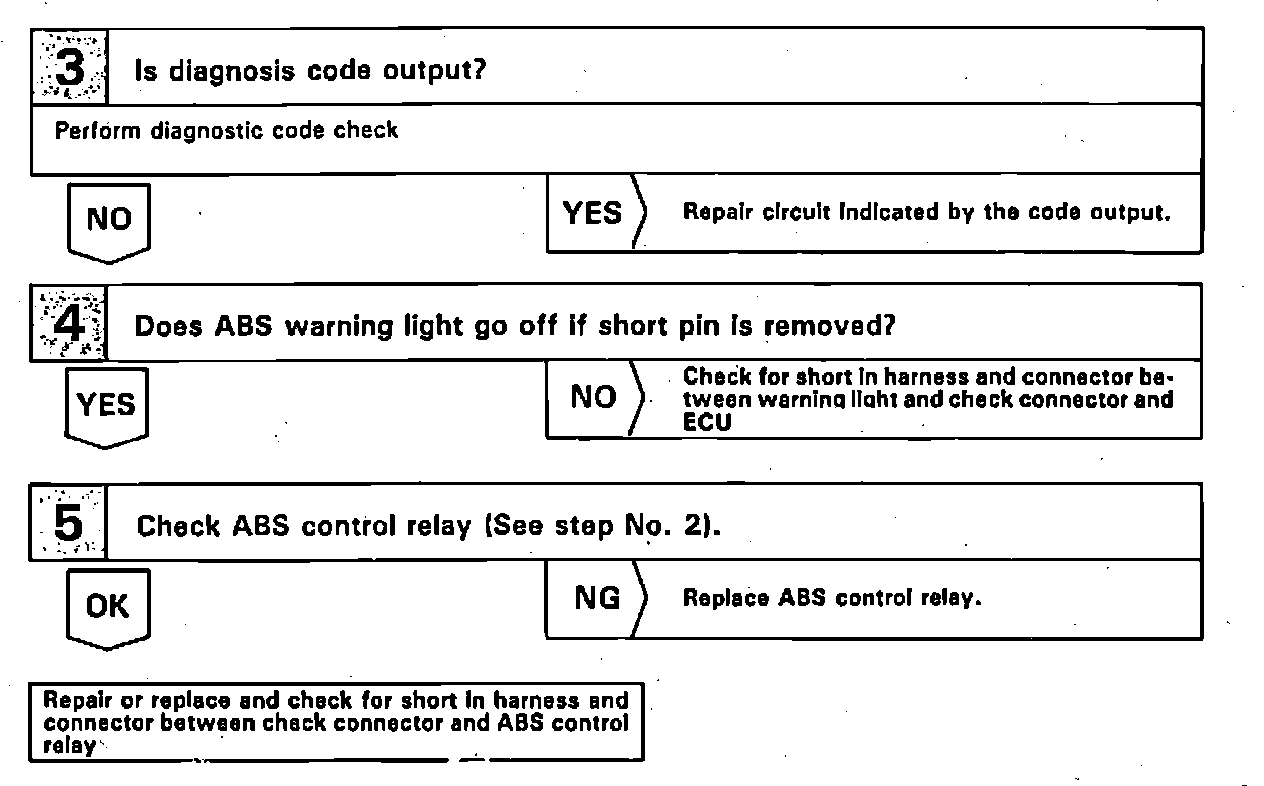

Fig. 47 ABS Warning Light Circuit Inspection & Testing (Part 2 Of 4).:

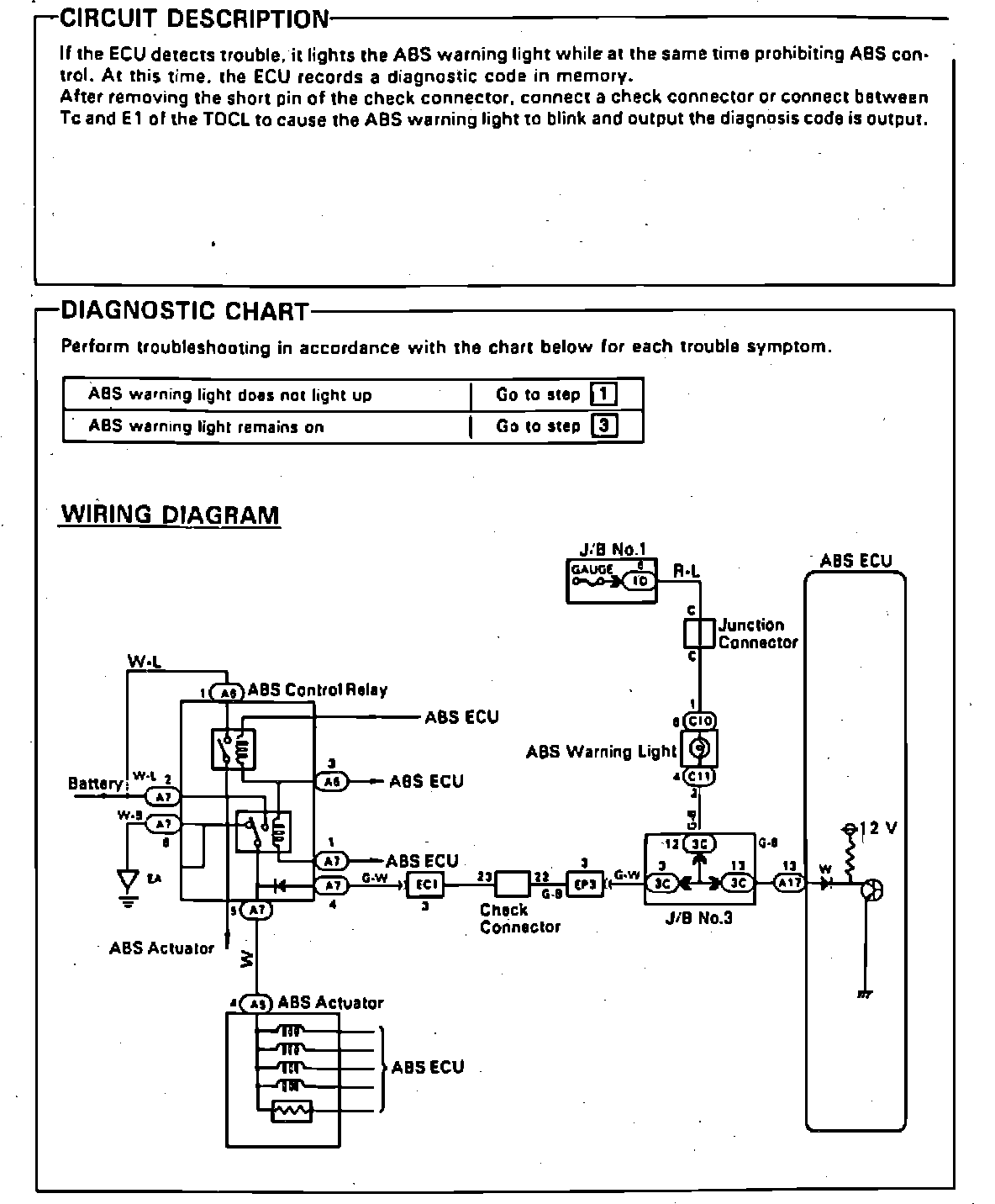

Fig. 47 ABS Warning Light Circuit Inspection & Testing (Part 3 Of 4).:

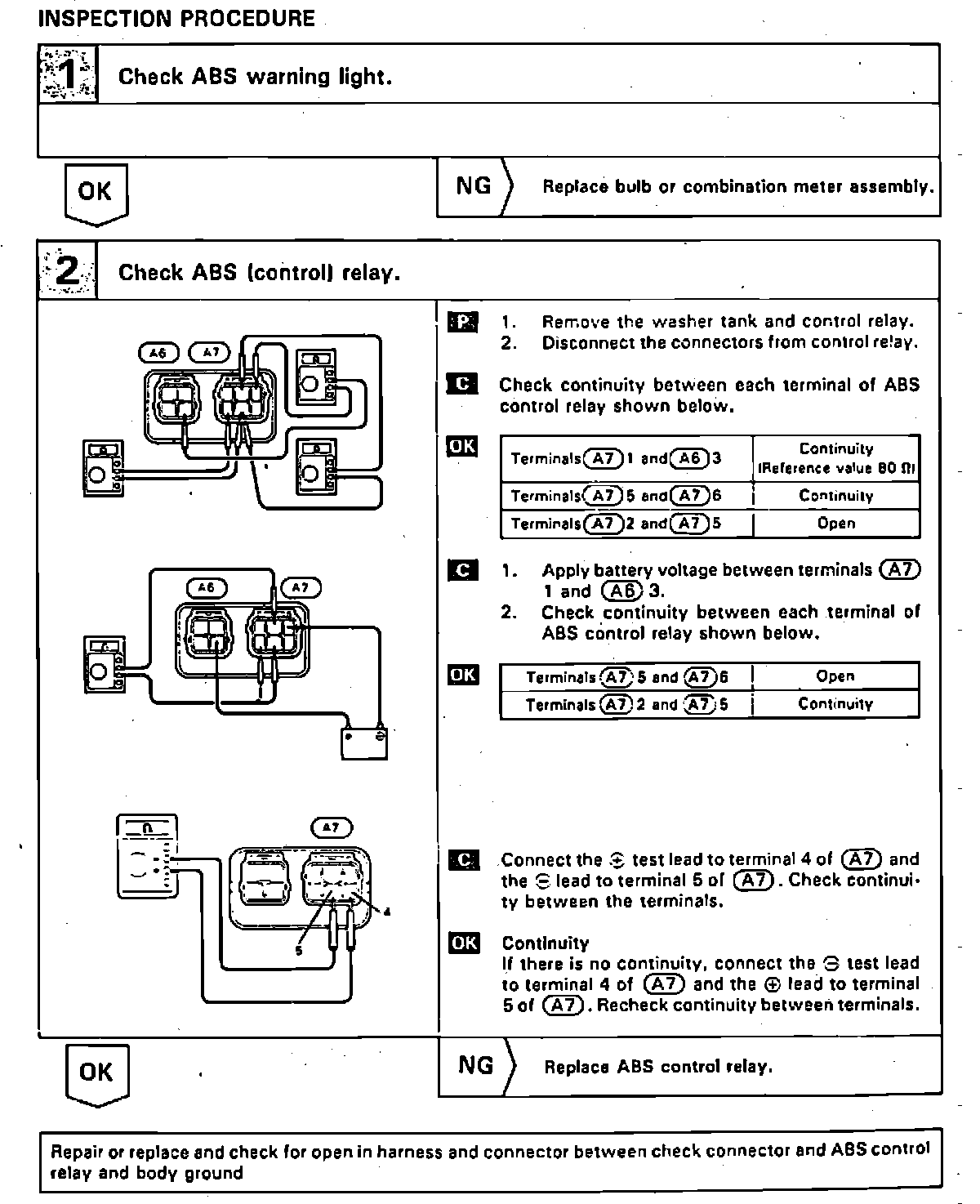

Fig. 47 ABS Warning Light Circuit Inspection & Testing (Part 4 Of 4).:
