Operation CHARM: Car repair manuals for everyone.
Home >> Lexus >> 2009 >> IS F V8-5.0L (2UR-GSE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Intake Manifold >> Service and Repair >> Components

Components

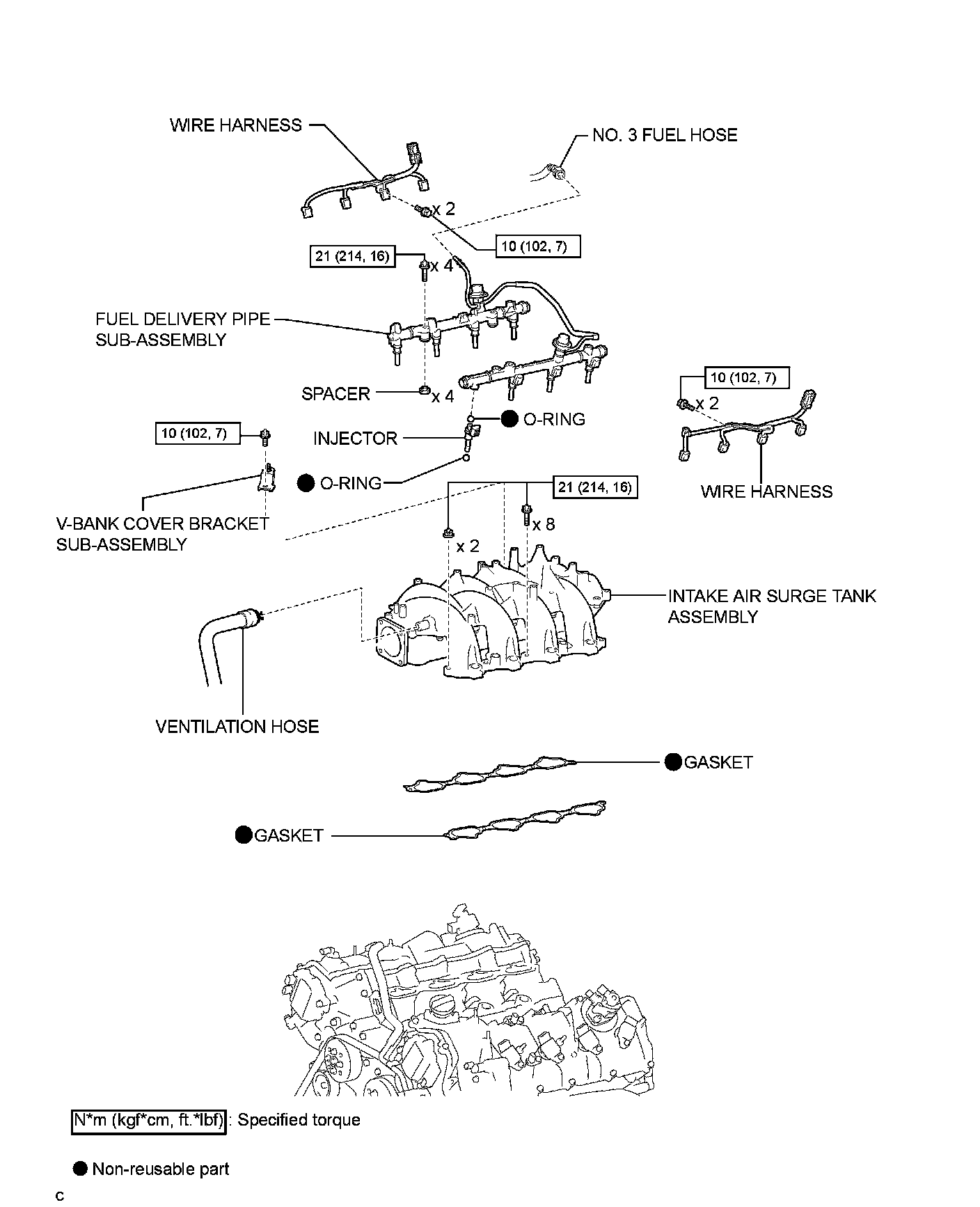

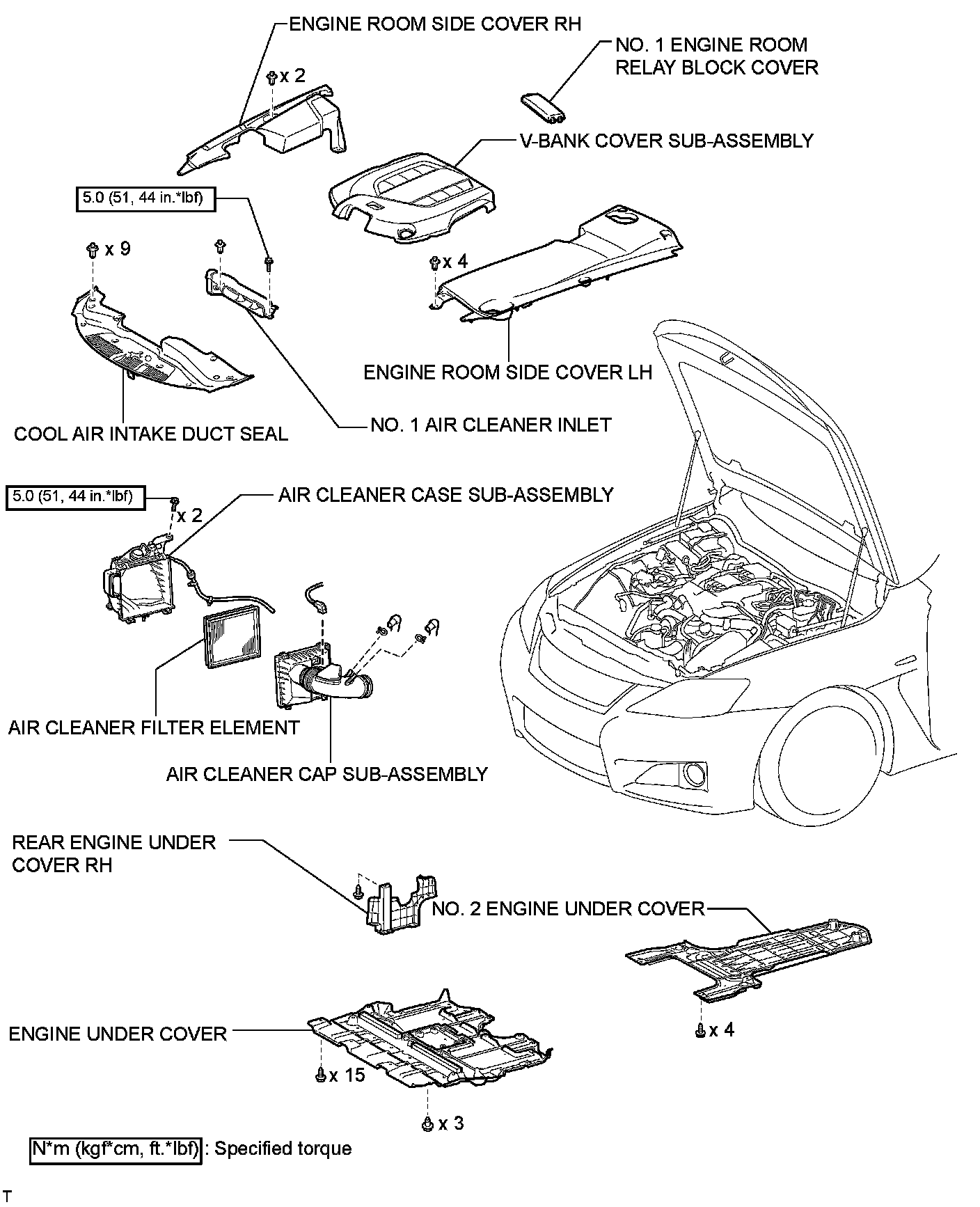

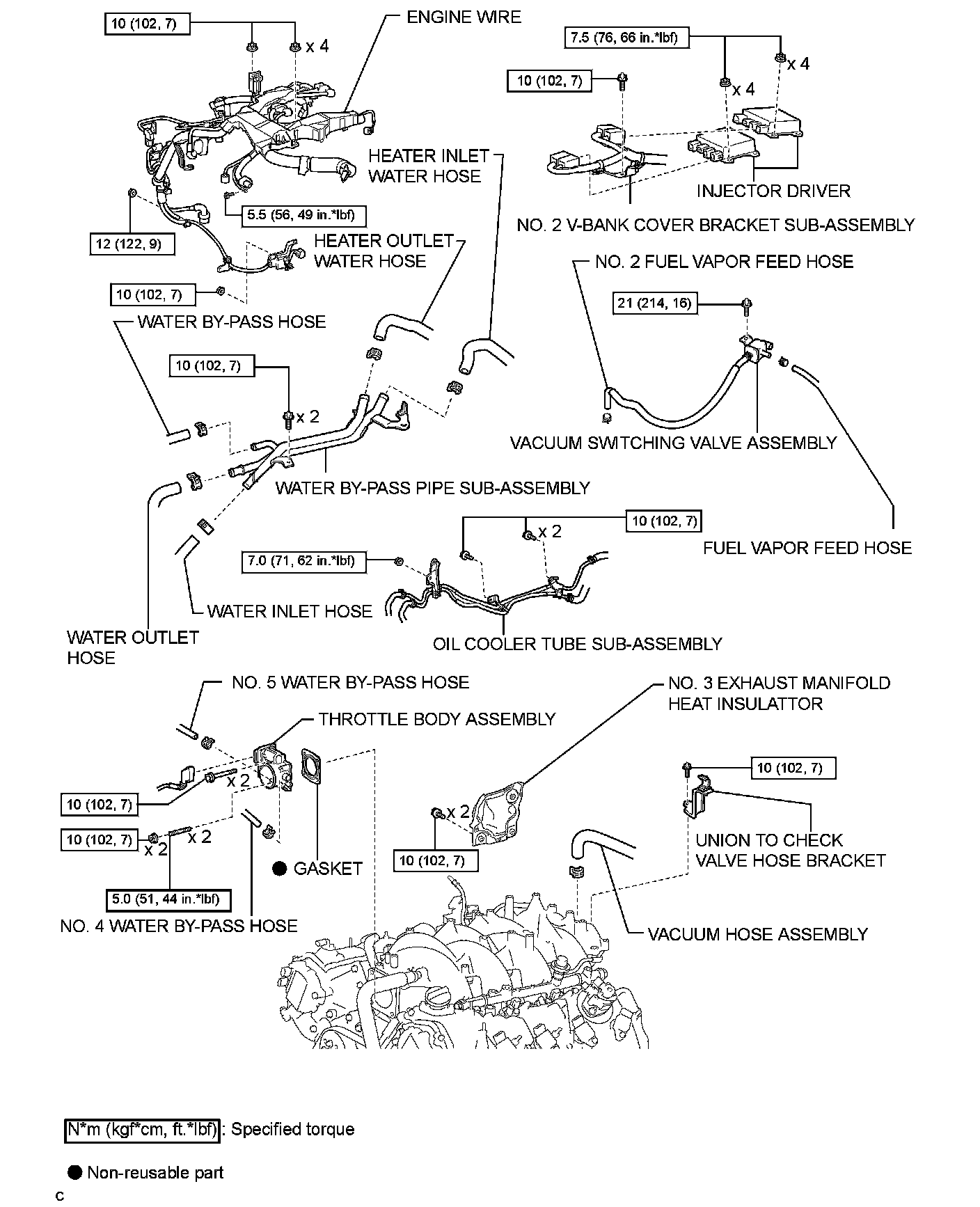

2UR-GSE INTAKE / EXHAUST: INTAKE MANIFOLD: COMPONENTS

COMPONENTS
