Torque Specifications








SPECIFICATIONS: REAR SUSPENSION: TORQUE SPECIFICATIONS

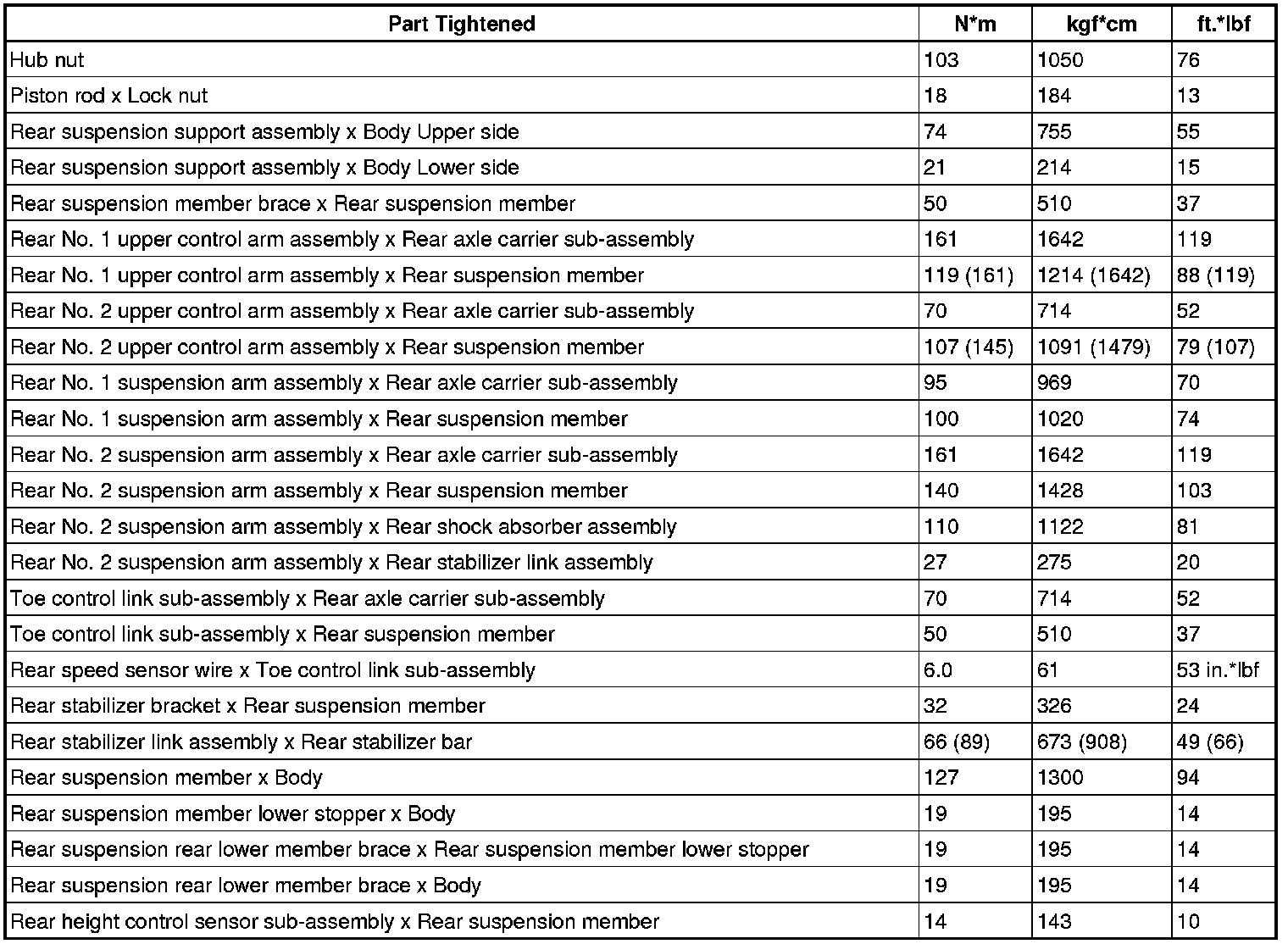

TORQUE SPECIFICATIONS





(): For use without the ball joint lock nut wrench
