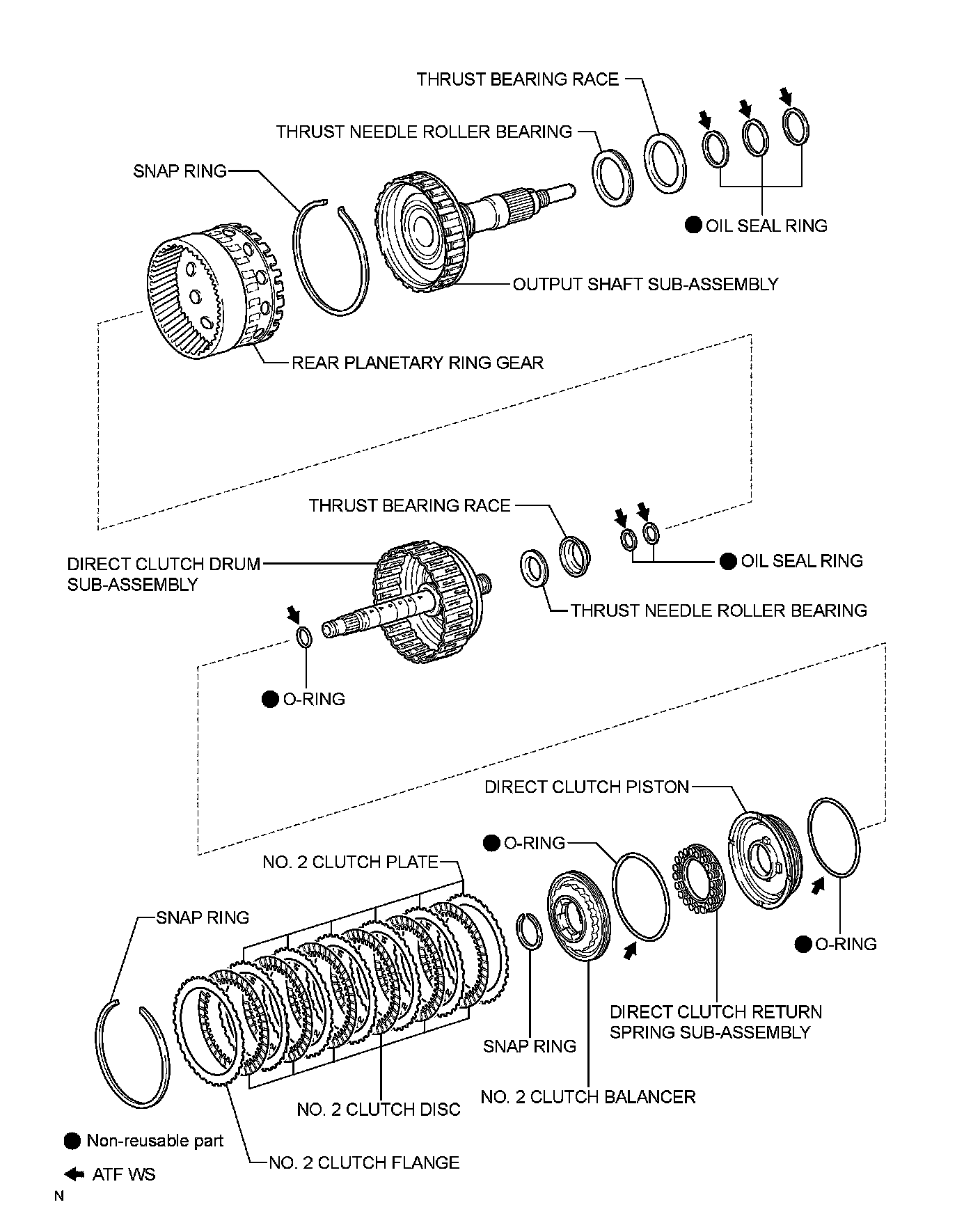

Components








AA80E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION UNIT: COMPONENTS

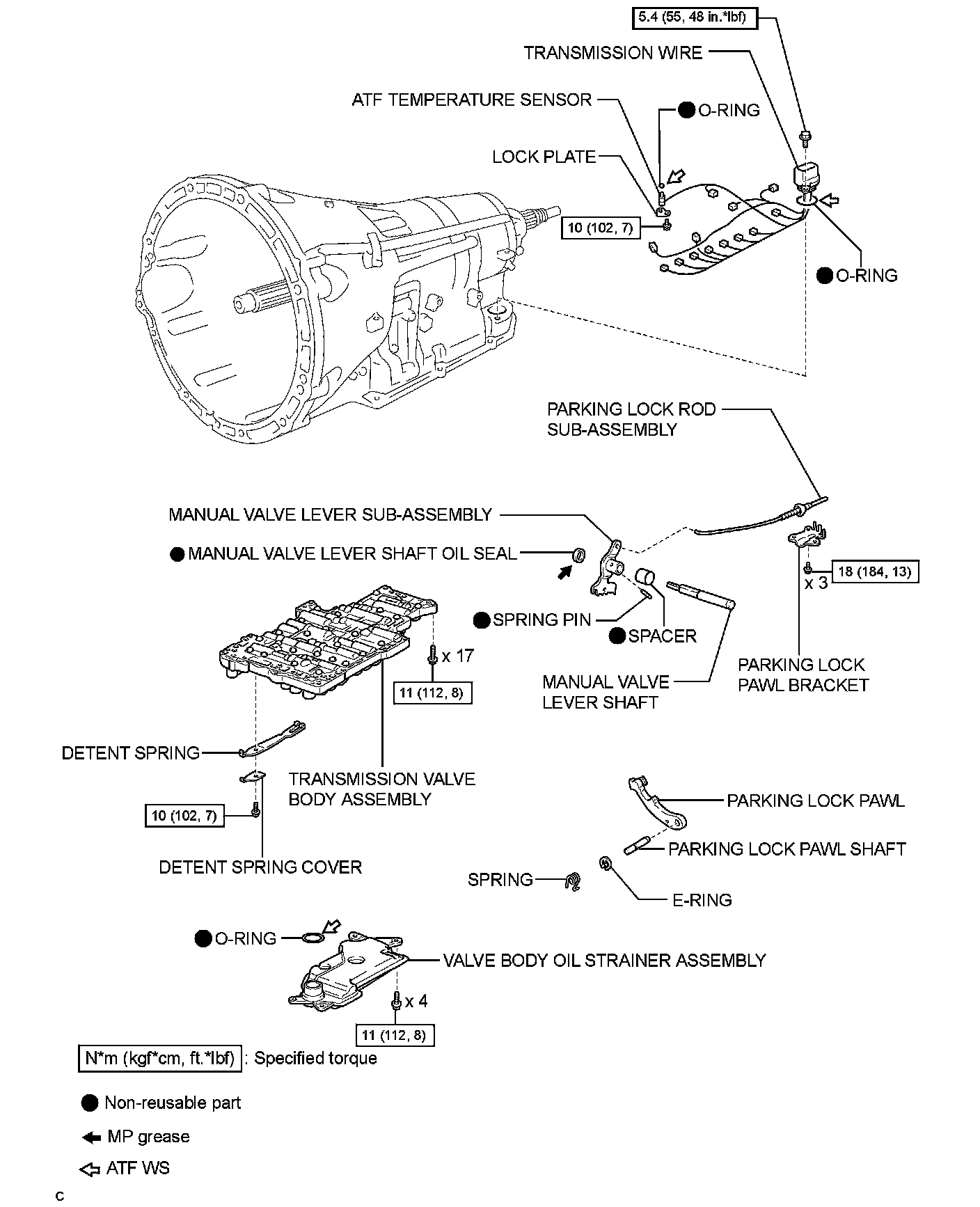

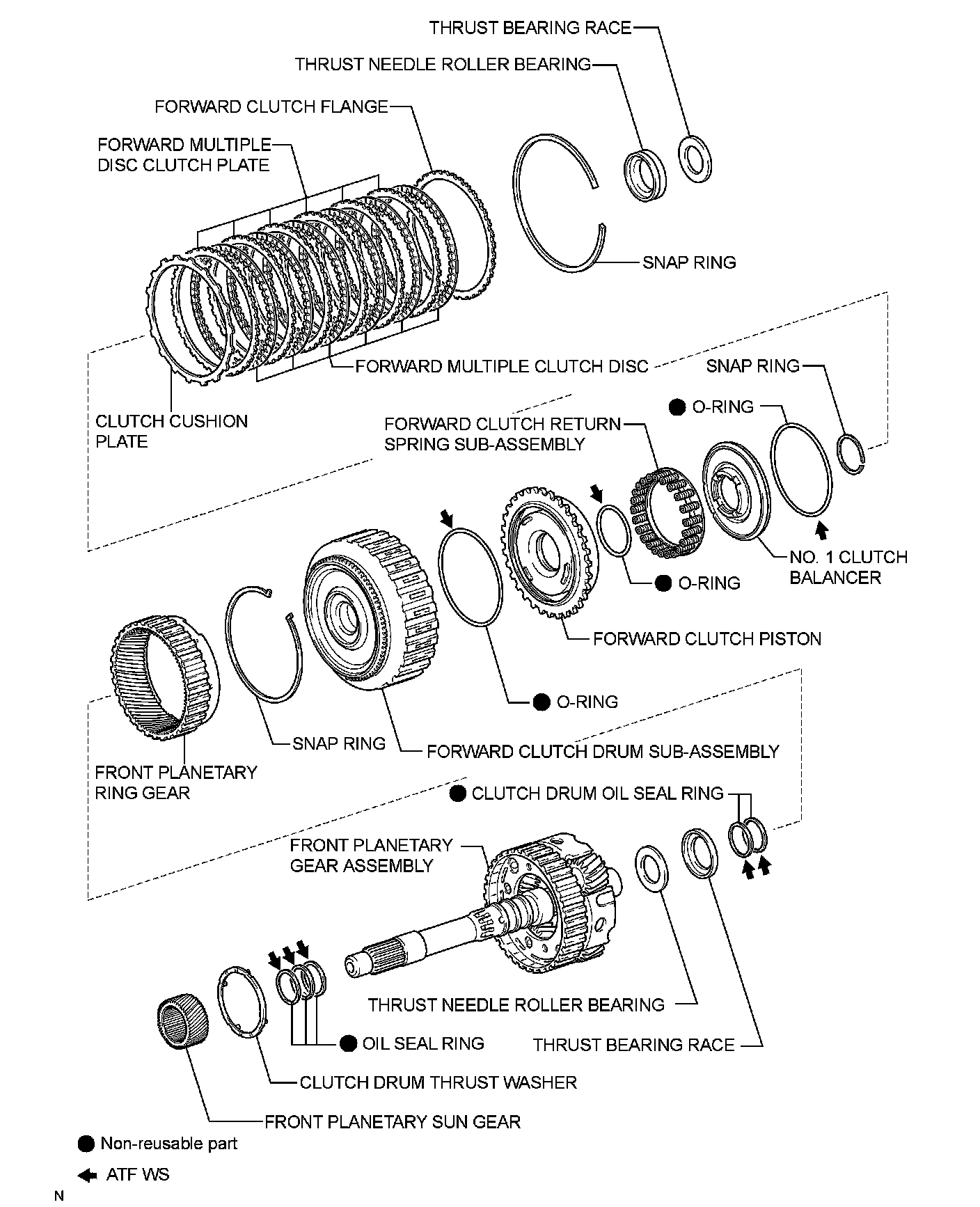

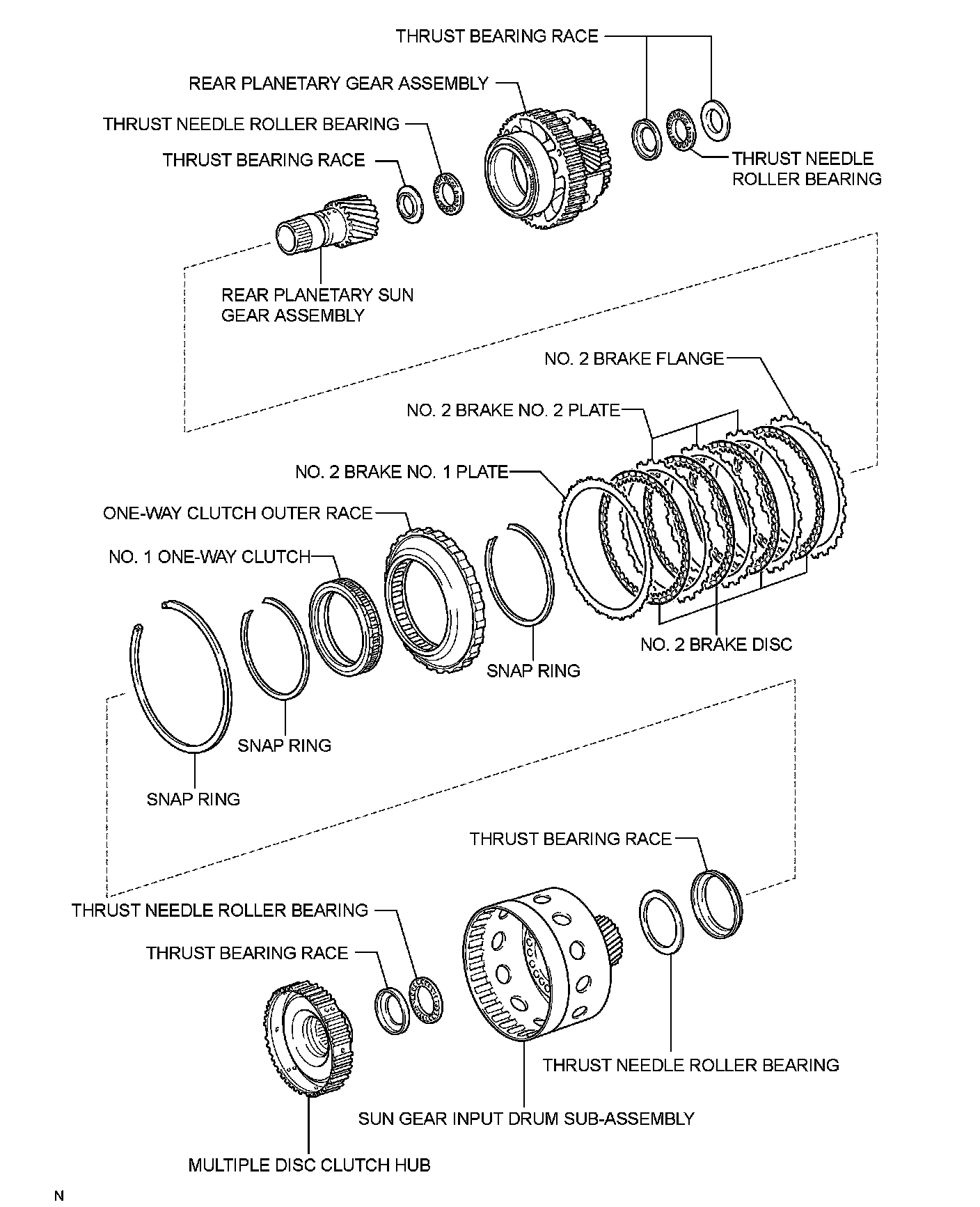

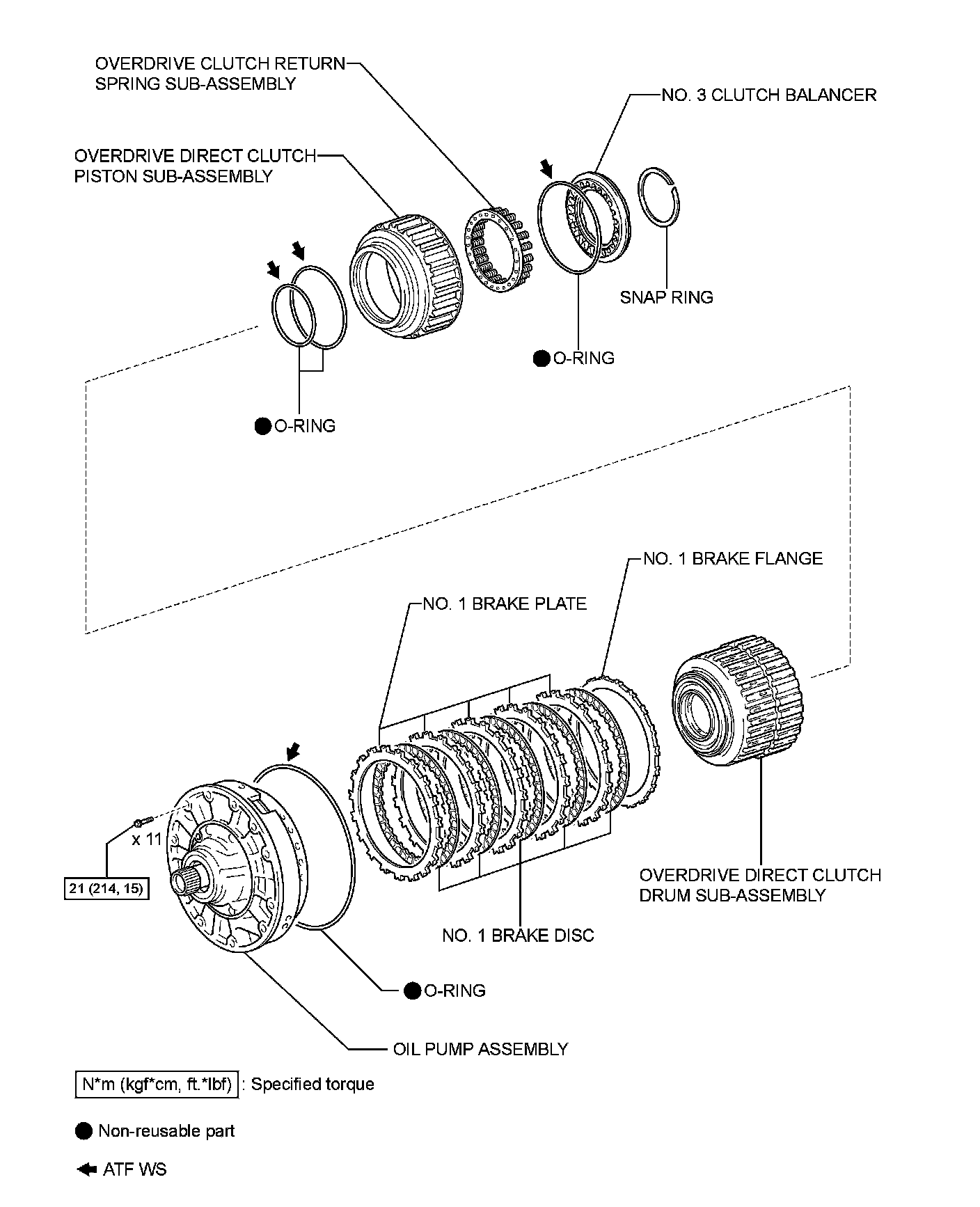

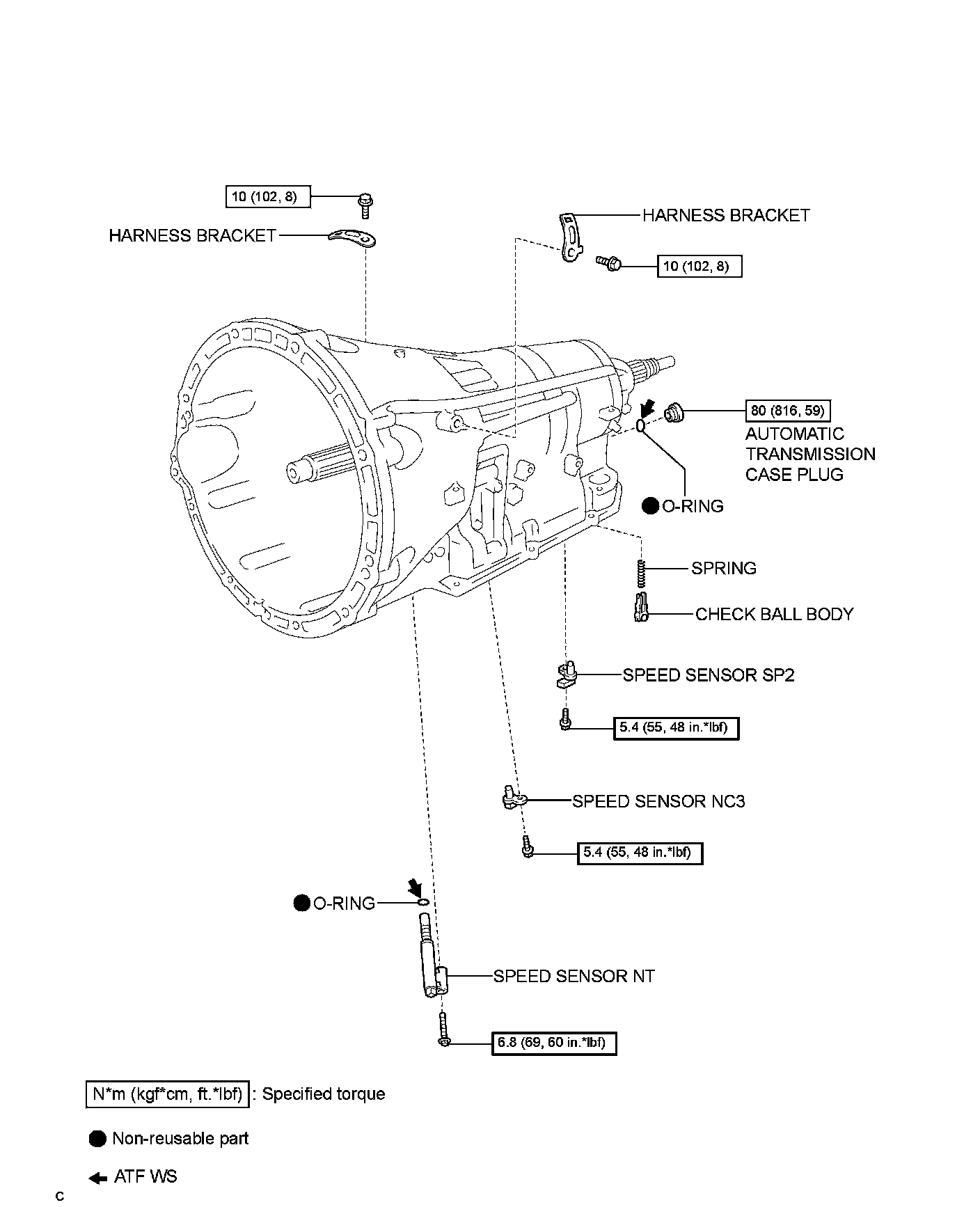

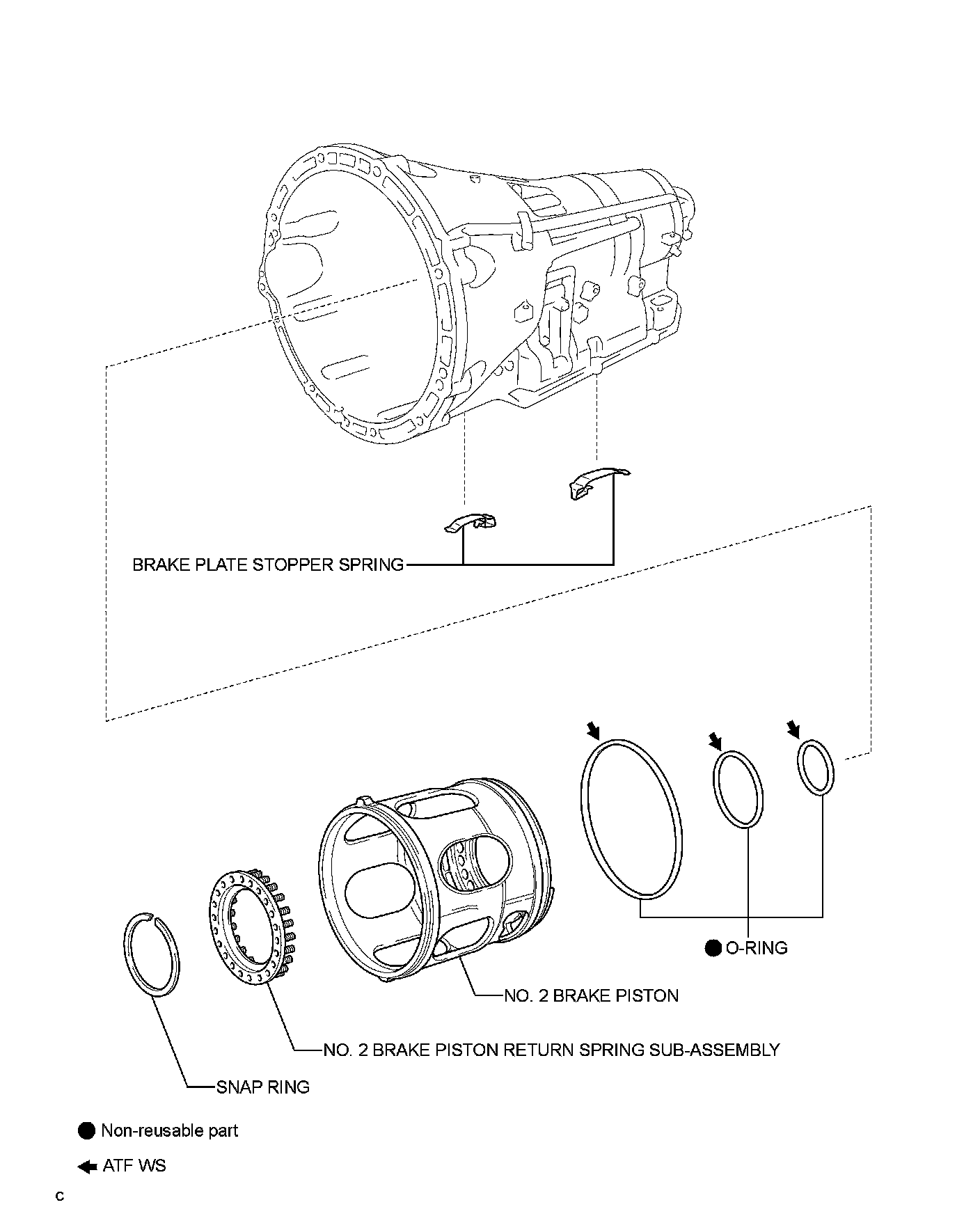

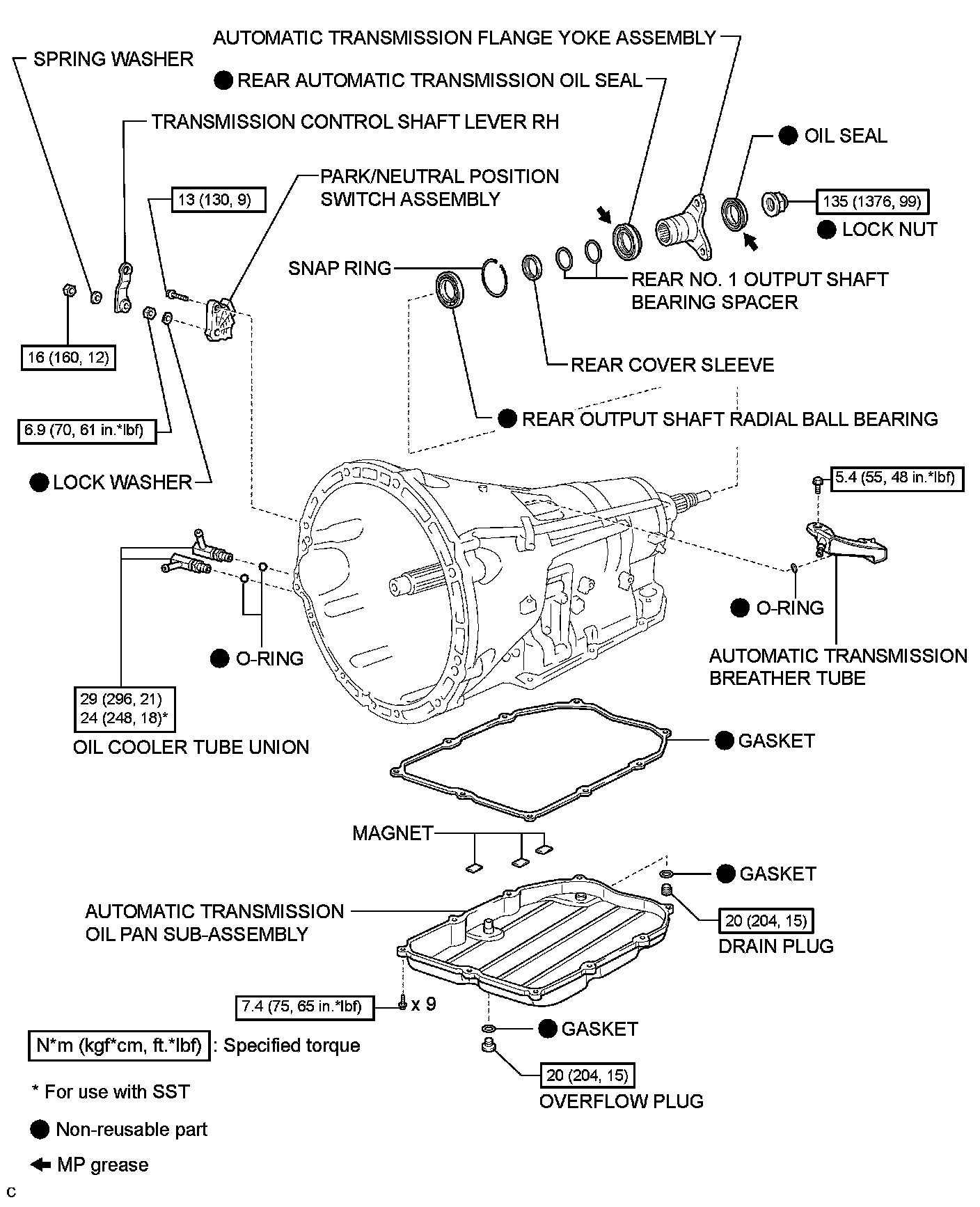

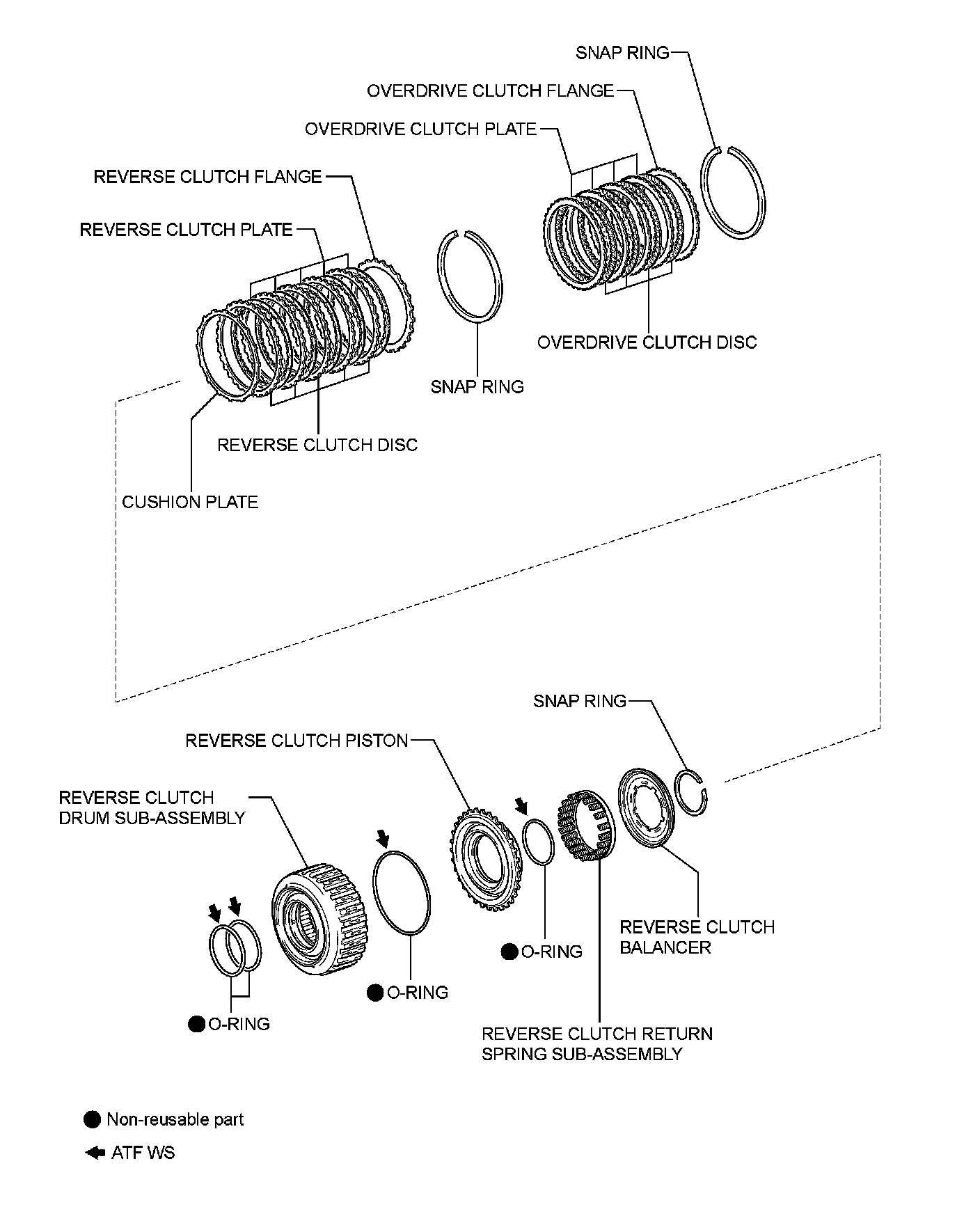

COMPONENTS
