System Specifications





SPECIFICATIONS: 2AZ-FXE LUBRICATION: SERVICE DATA

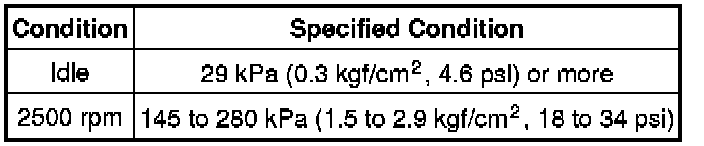

OIL PRESSURE

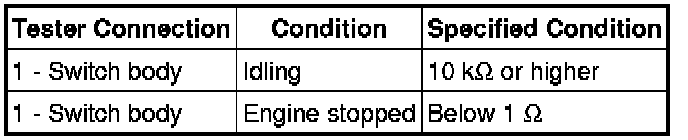

ENGINE OIL PRESSURE SWITCH ASSEMBLY





OIL PUMP
