Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2010
>>
IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Service and Repair
>>
Removal and Replacement
>>
Transmission Unit
Transmission Unit

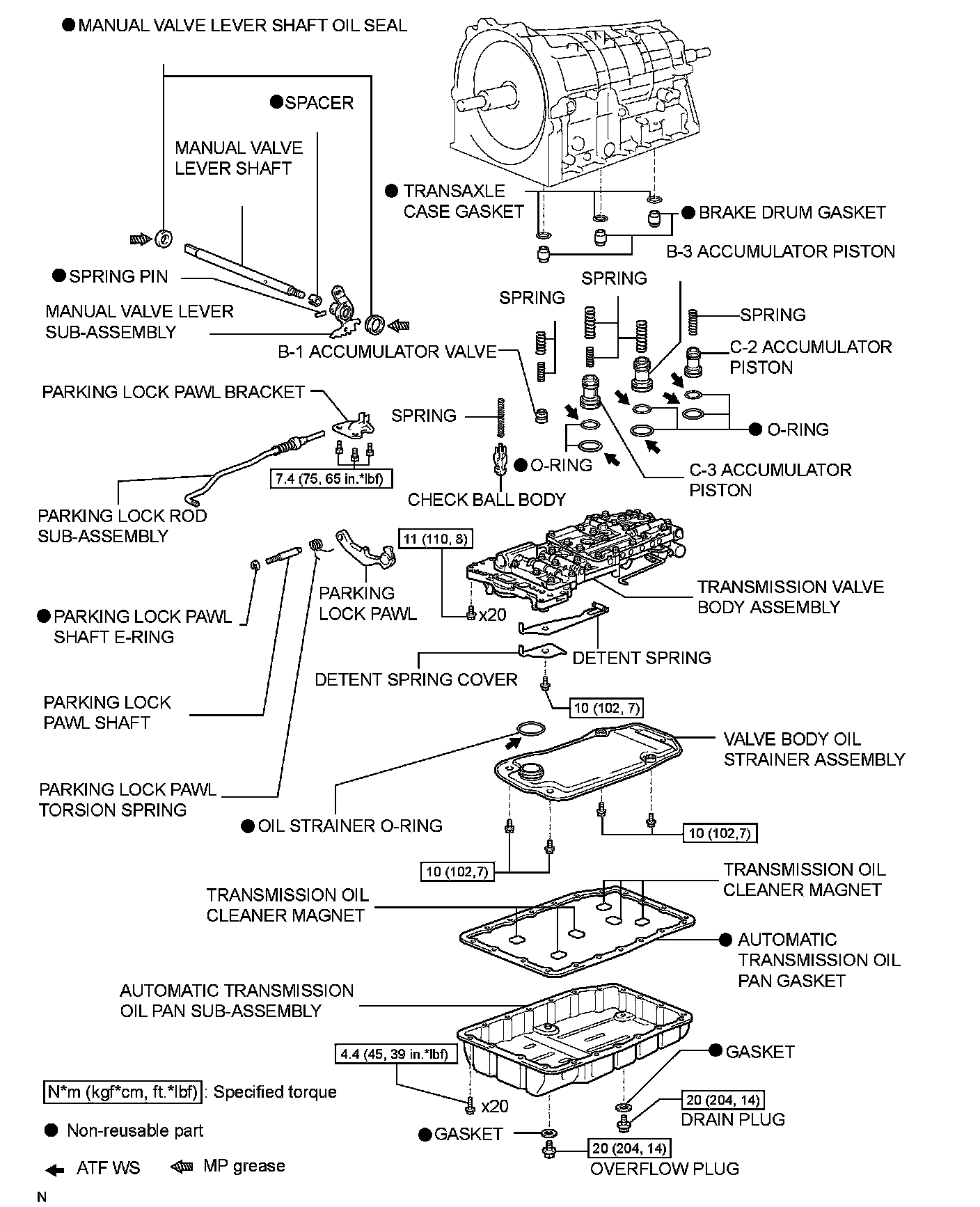

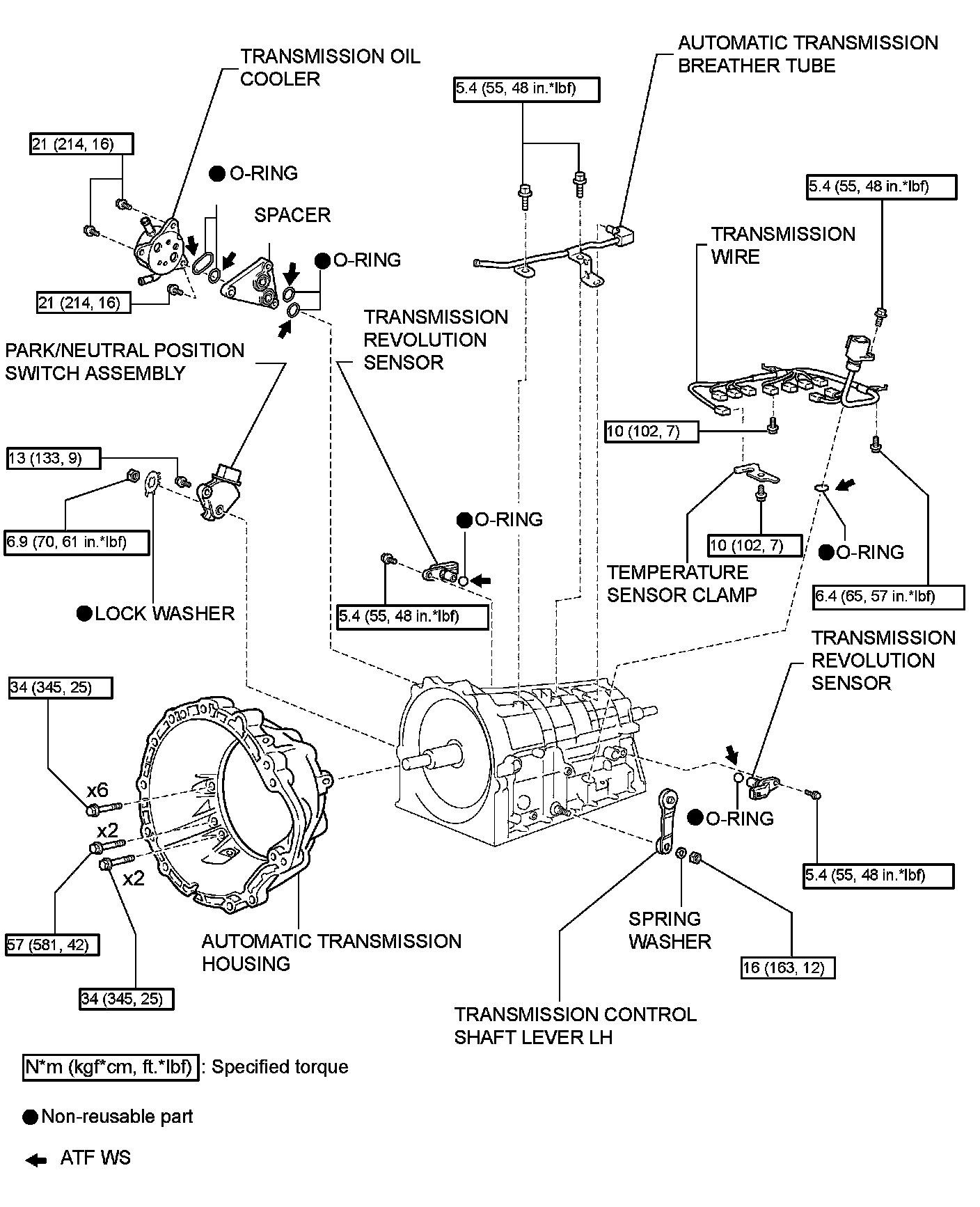

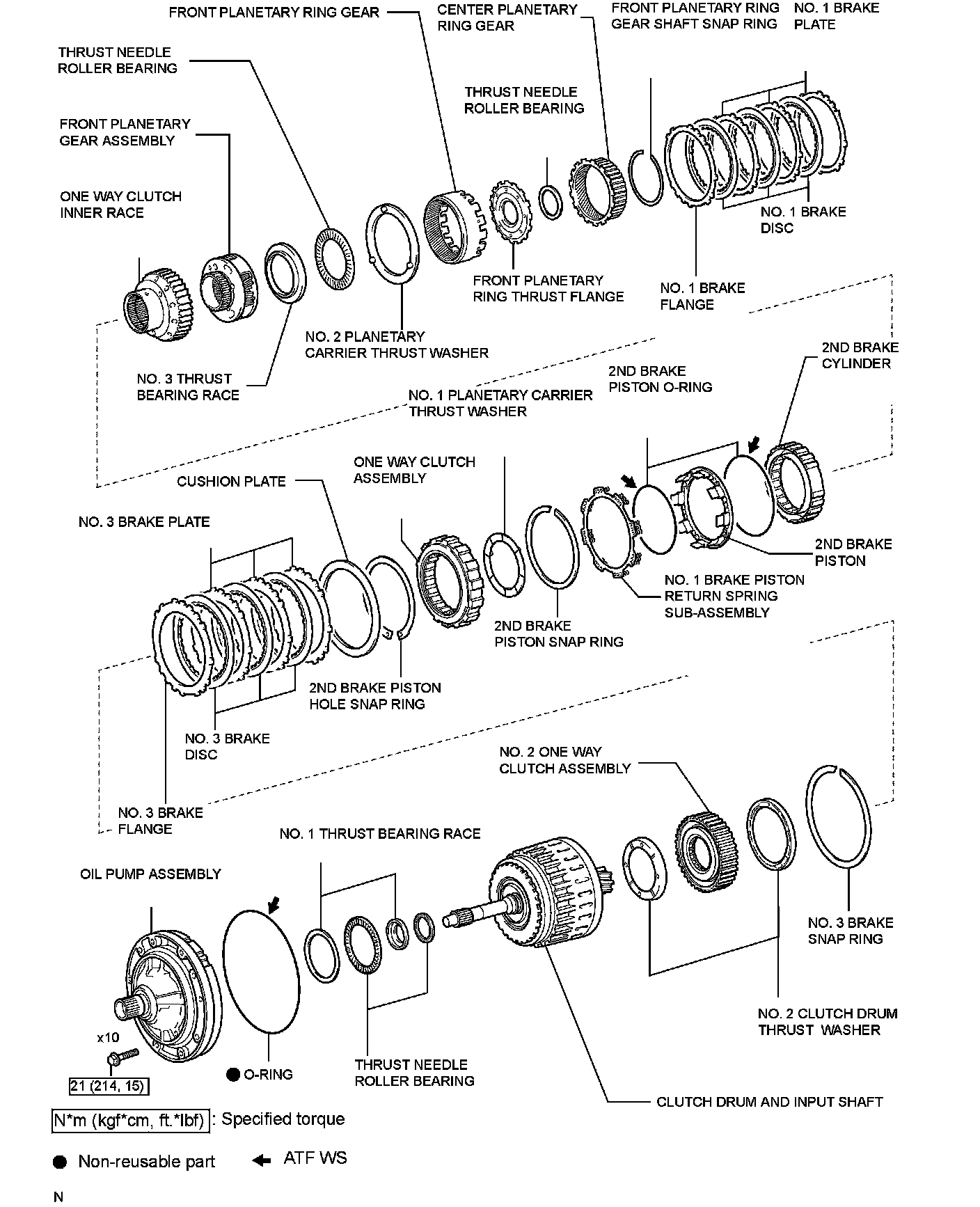

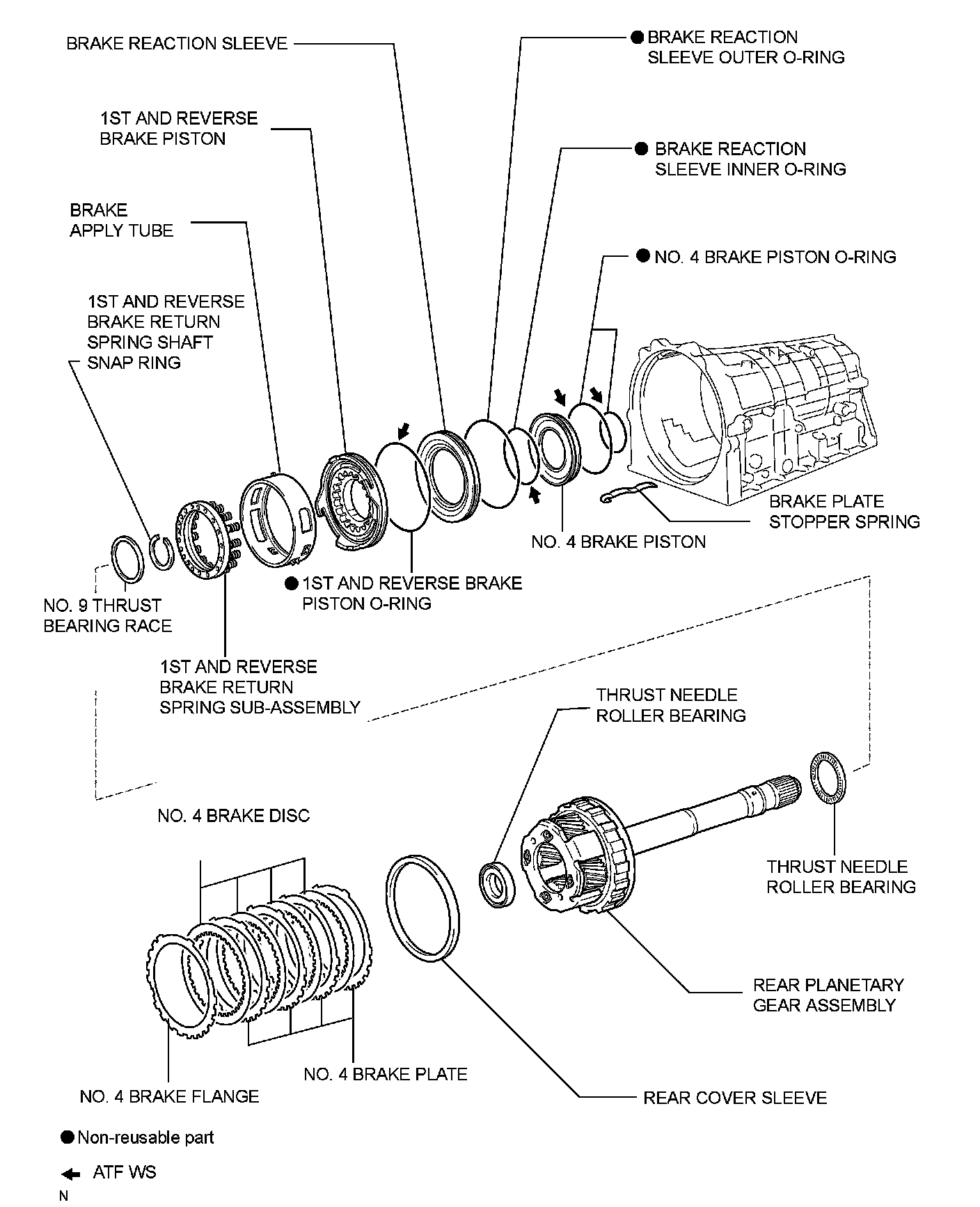

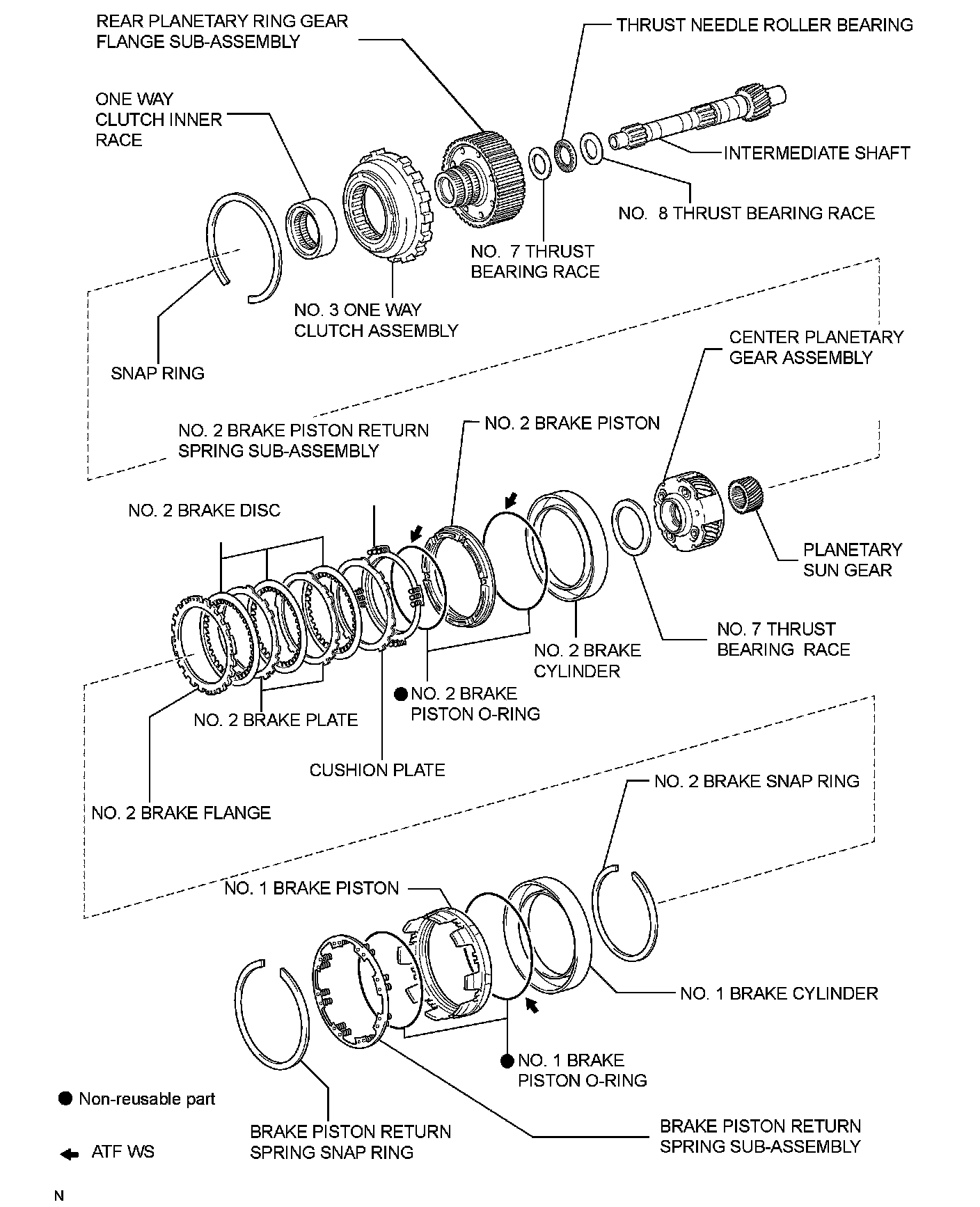

A760H AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION UNIT: COMPONENTS
