Lincoln Truck
>>
2009
>>
Navigator 2WD V8-5.4L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Liftgate/Trunk Module (LTM) DTC Chart
Liftgate/Trunk Module (LTM) DTC Chart
Power Liftgate
DTC Charts

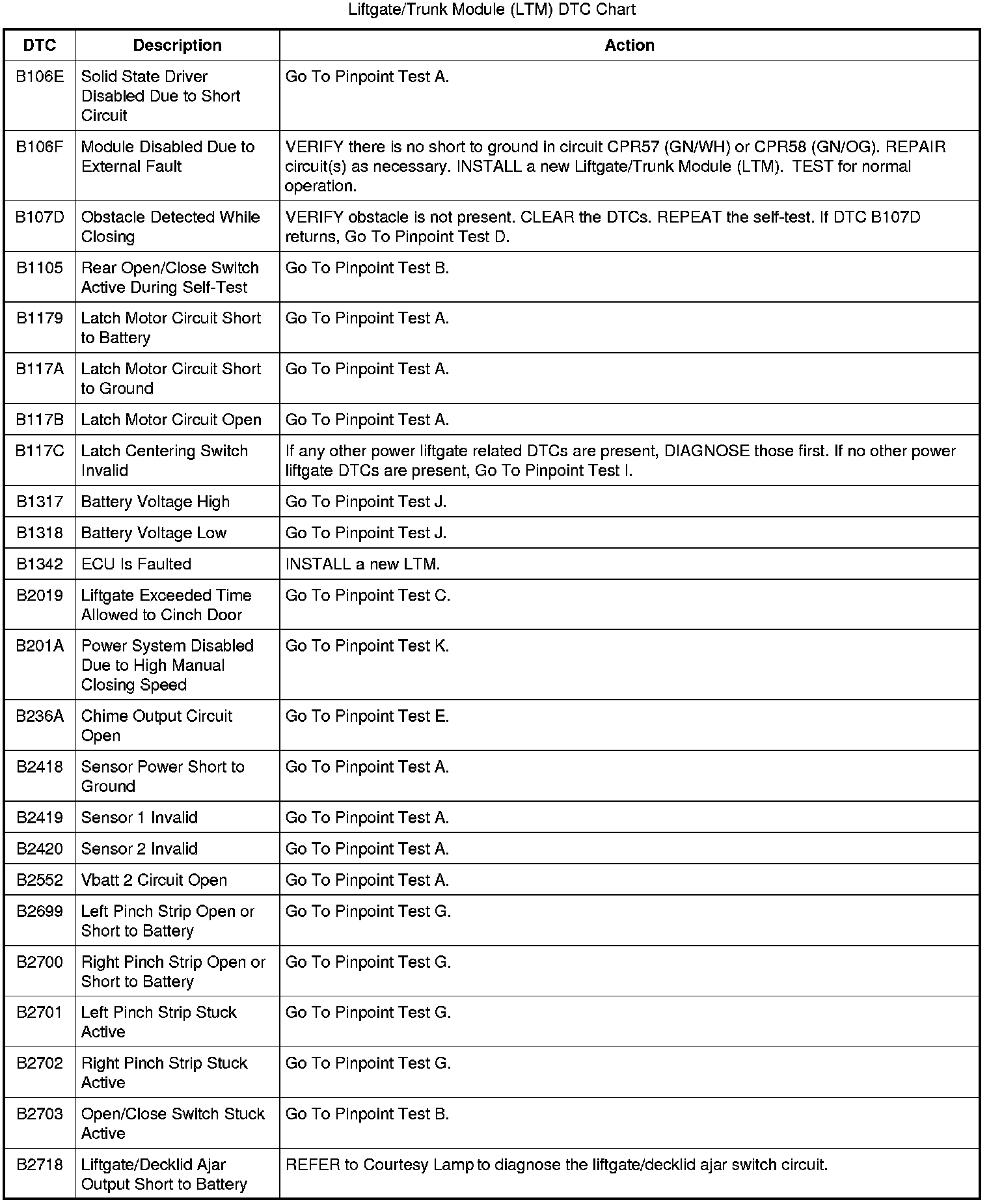

B106E-B2718:

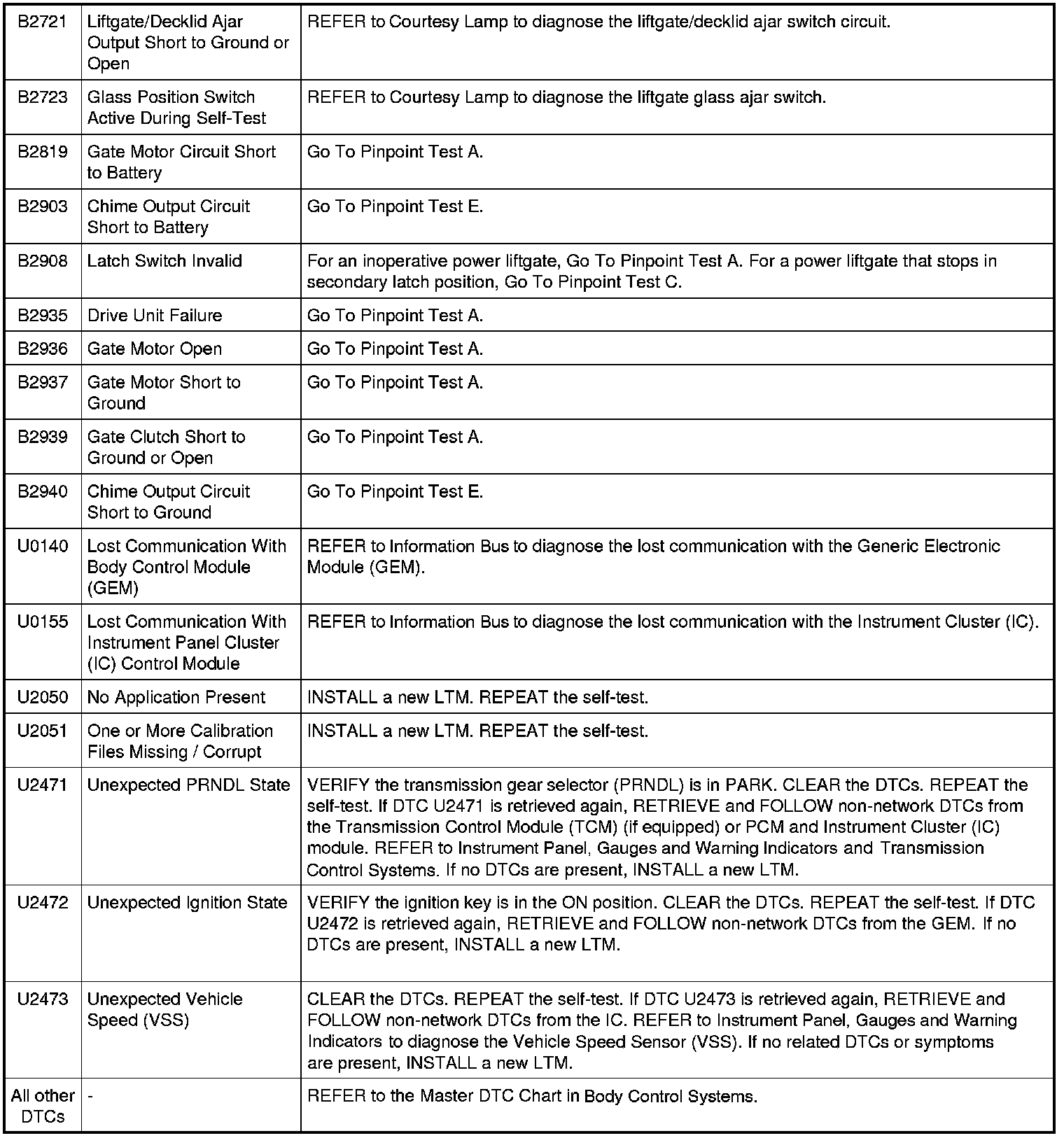

B2721-B2940 / U0140-U2473:
