Wheel Speed Sensor - Front

Wheel Speed Sensor - Front









Removal and Installation

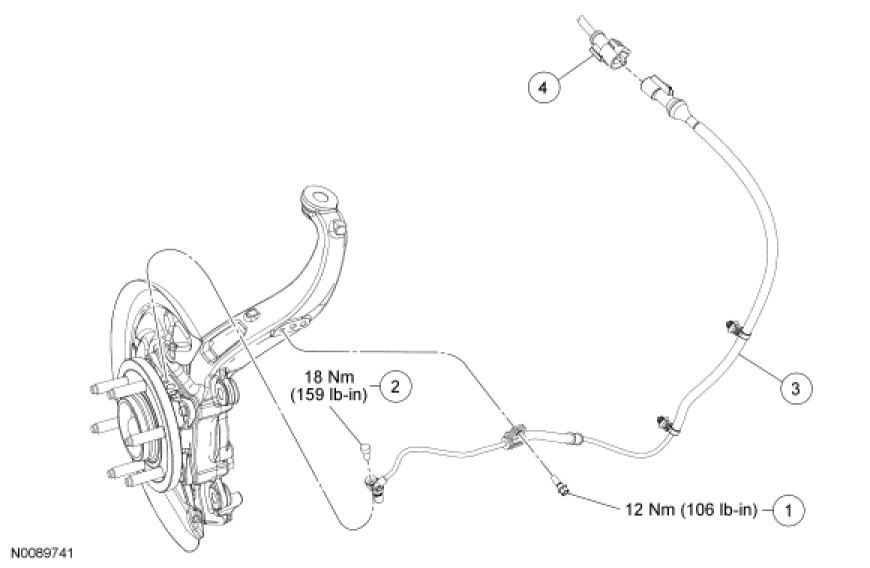

1. Remove the wheel and tire.

2. Disconnect the wheel speed sensor electrical connector.

3. Remove the wheel speed sensor harness bolt and detach the retainers.
- To install, tighten to 12 Nm (106 lb-in).

4. NOTICE: Do not allow the caliper to hang from the brake hose or damage to the hose can result.

Remove the 2 caliper anchor bolts and position the caliper, pads and anchor plate aside.

- Support the caliper with mechanic's wire.

- To install, tighten to 200 Nm (148 lb-ft).

5. Remove the brake disc.

6. Remove the front wheel speed sensor bolt and the sensor.
- To install, tighten to 18 Nm (159 lb-in).

7. To install, reverse the removal procedure.
