Turn Signals: Service and Repair

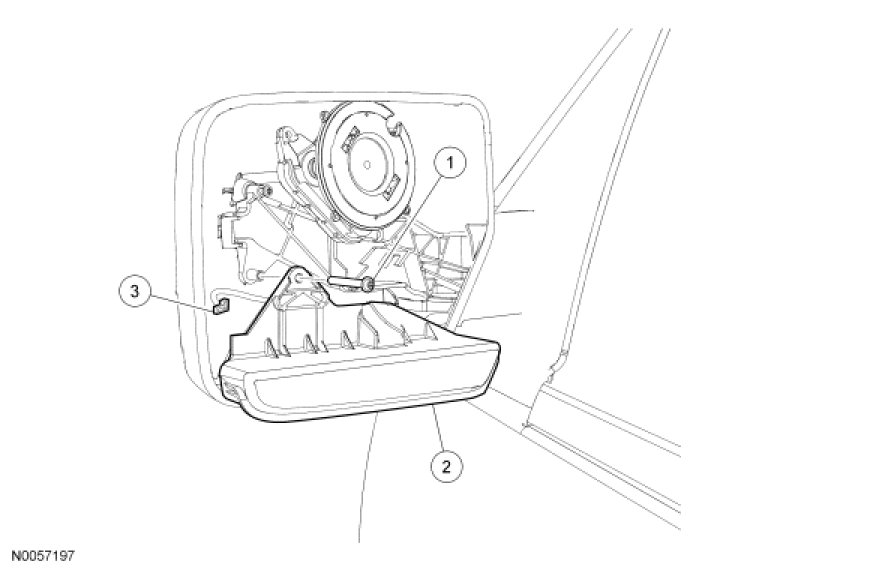

Side Turn Signal Lamp - Signal Mirror

NOTE: Navigator shown, Expedition similar.










Removal and Installation

1. Remove the mirror glass.

2. Remove the screw and the signal mirror LED.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
