Cylinder Head

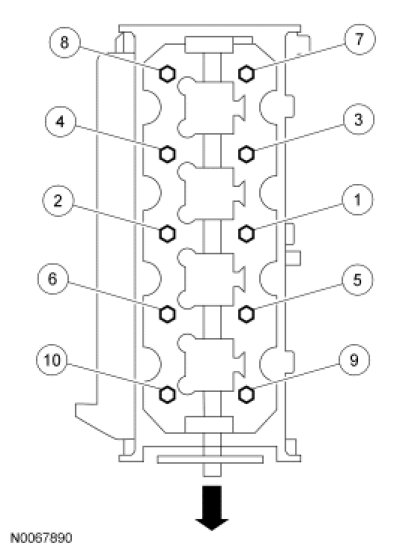

NOTE: RH shown, LH similar.

Tighten the 20 bolts in 3 stages, in the sequence shown.
Stage 1: Tighten to 40 Nm (30 lb-ft).
Stage 2: Tighten an additional 90 degrees.
Stage 3: Tighten an additional 90 degrees.
