Exhaust Manifold

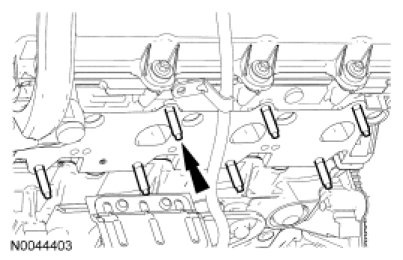

Install 16 new exhaust manifold studs.Tighten to 12 Nm (106 lb-in).

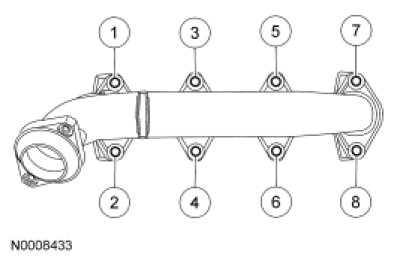

Position a new gasket, the LH exhaust manifold and tighten the 8 nuts in the sequence shown.
Tighten to 25 Nm (18 lb-ft).
Exhaust Manifold - LH:

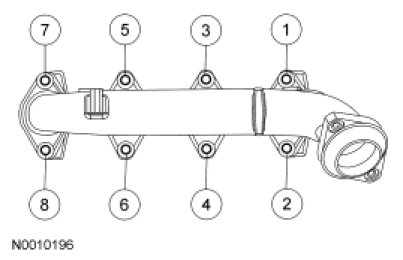

Position a new gasket, the RH exhaust manifold and tighten the 8 nuts in the sequence shown.
Tighten to 25 Nm (18 lb-ft).
Exhaust Manifold - RH:
