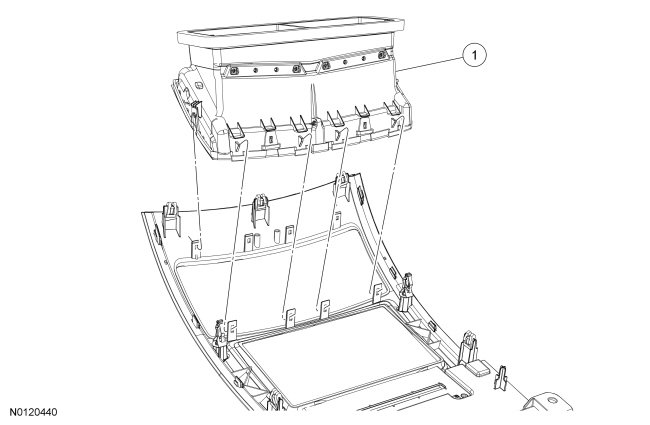

Air Distribution and Filtering - Exploded View

Air Distribution and Filtering - Exploded View

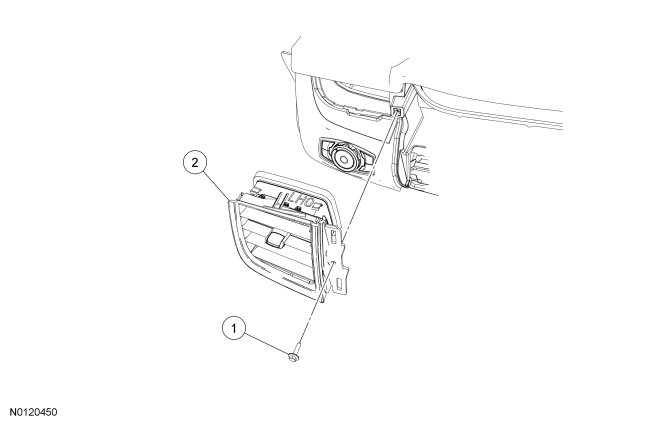

Driver Side Register - Edge

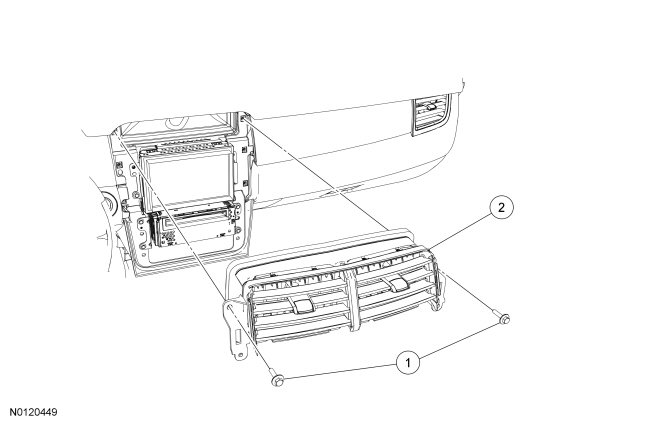

Center Register - Edge

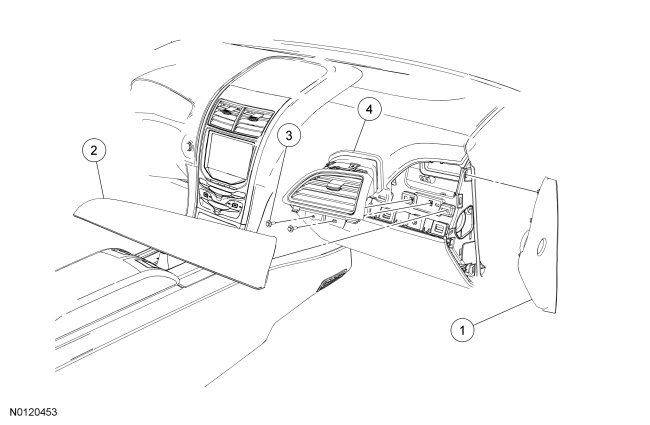

Passenger Side Register - Edge

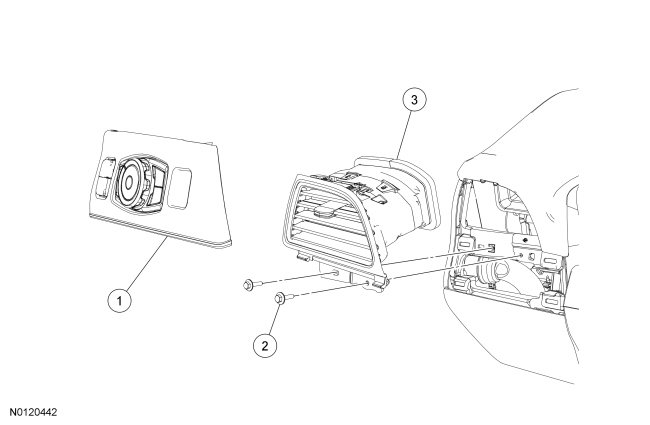

Driver Side Register - MKX

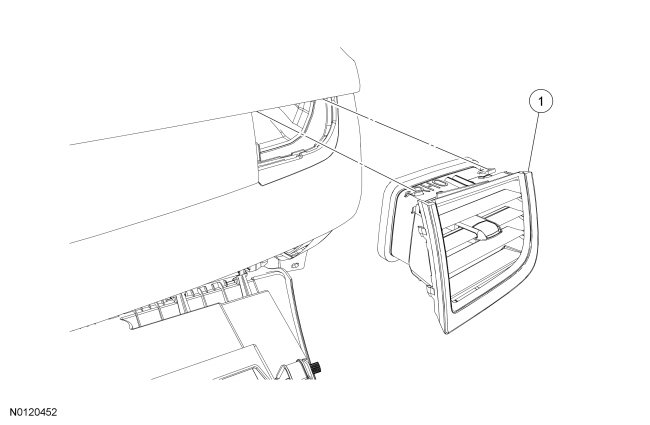

Center Register - MKX









Passenger Side Register - MKX










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
