Diagnostic and Shop Manual Revisions

85ford04

Article No. 85-4-27


ENGINE - 2.4L TURBO DIESEL - DIAGNOSTIC AND CAR SHOP MANUAL REVISIONS

LINCOLN-MERCURY 1985 CONTINENTAL/MARK VII

The following revisions or additional information should be noted in the 1985 Diesel Diagnostic and Car Shop Manuals, and applied whenever diagnostic routines are performed. It is also recommended to update all associated training guides and/or manuals.

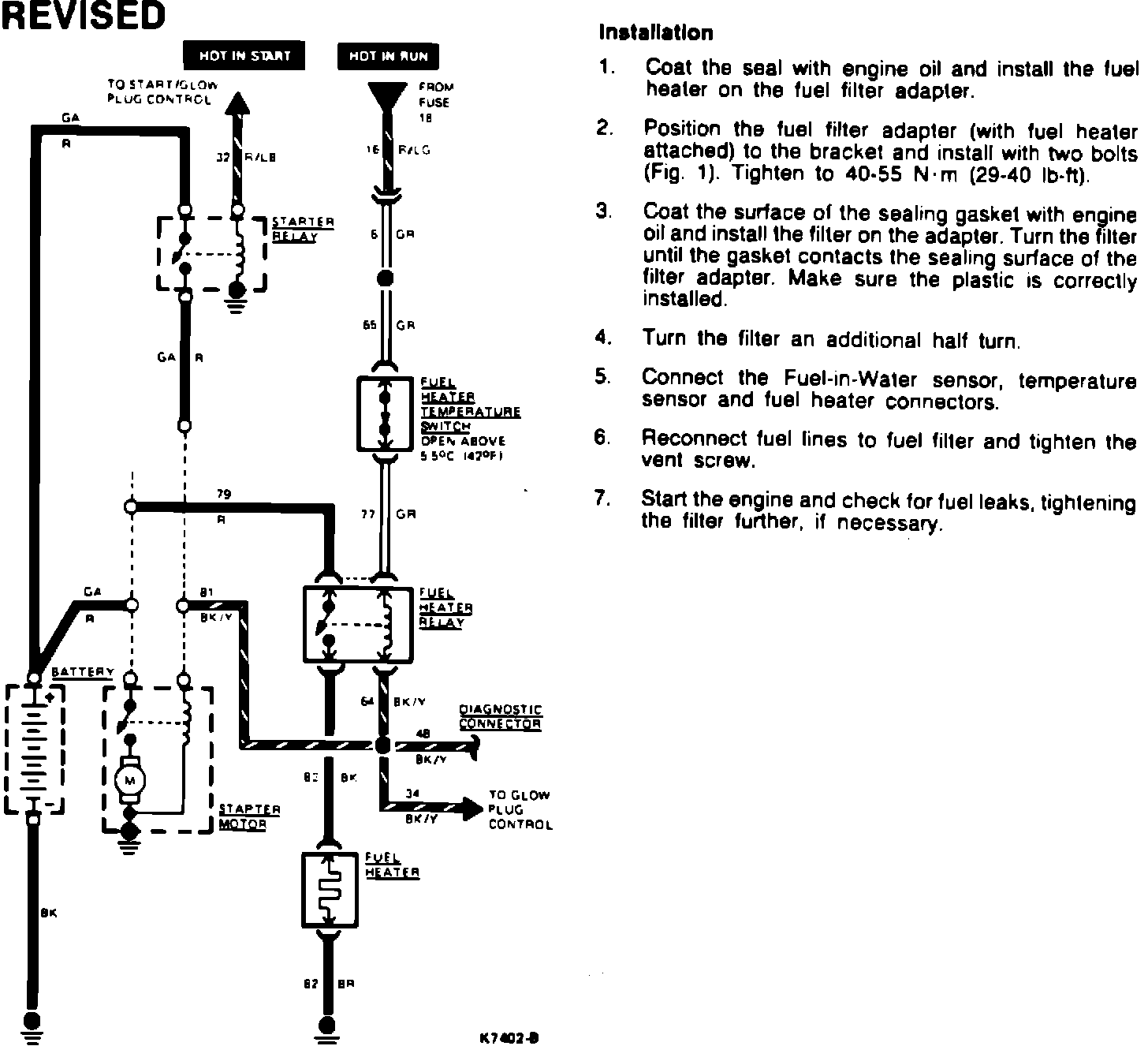

Figure 2 - Fuel Heater Wiring Diagram:

Shop Manual, Page 25-55-2 Remove words, "From Ignition Switch" and add words, "From Fuse No 18".

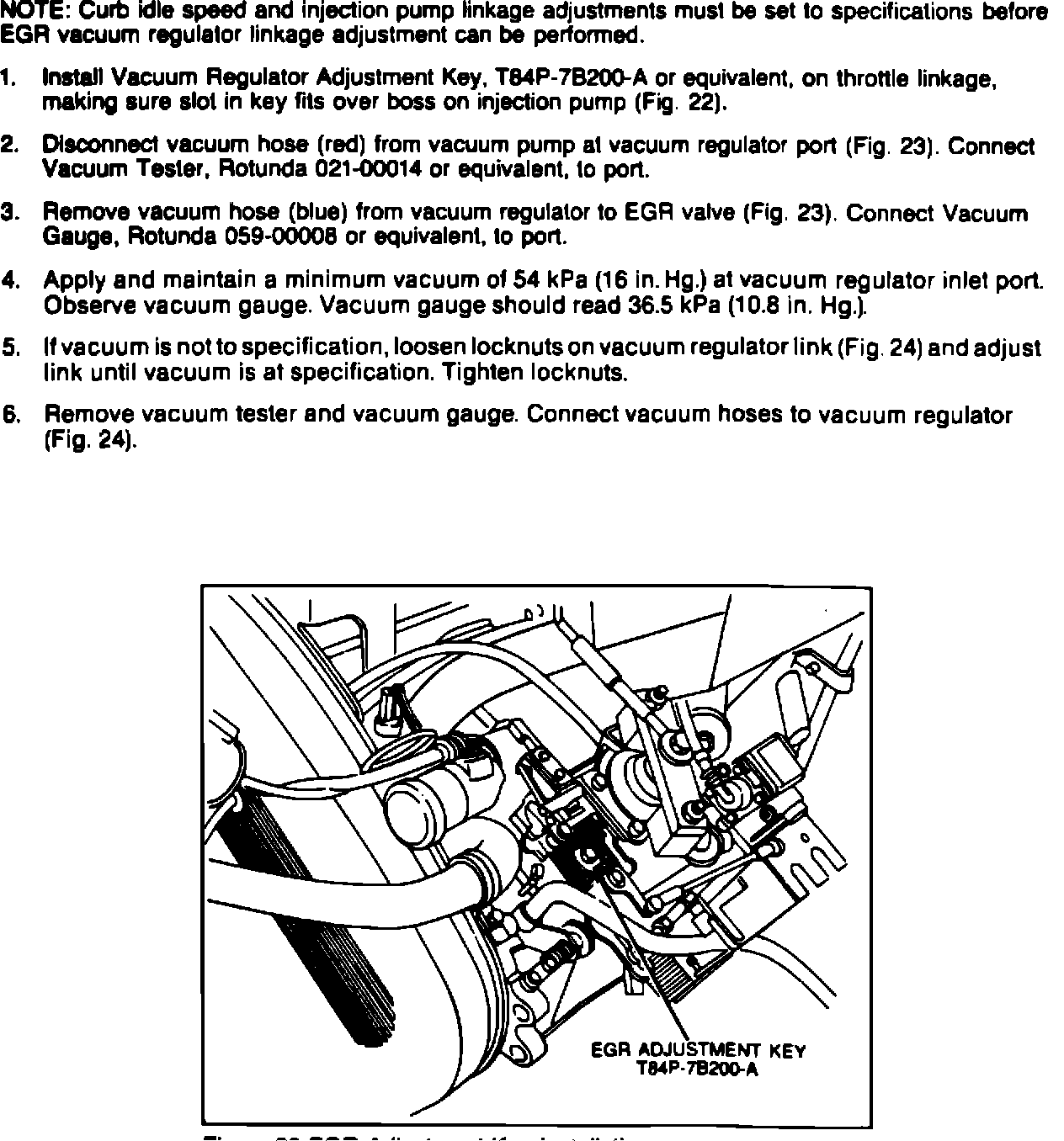

Figure 22 - EGR Adjustment Key Installation:

Diesel Diagnostic Manual, Page 26-12 Revise vacuum gauge specification for step no. 4.

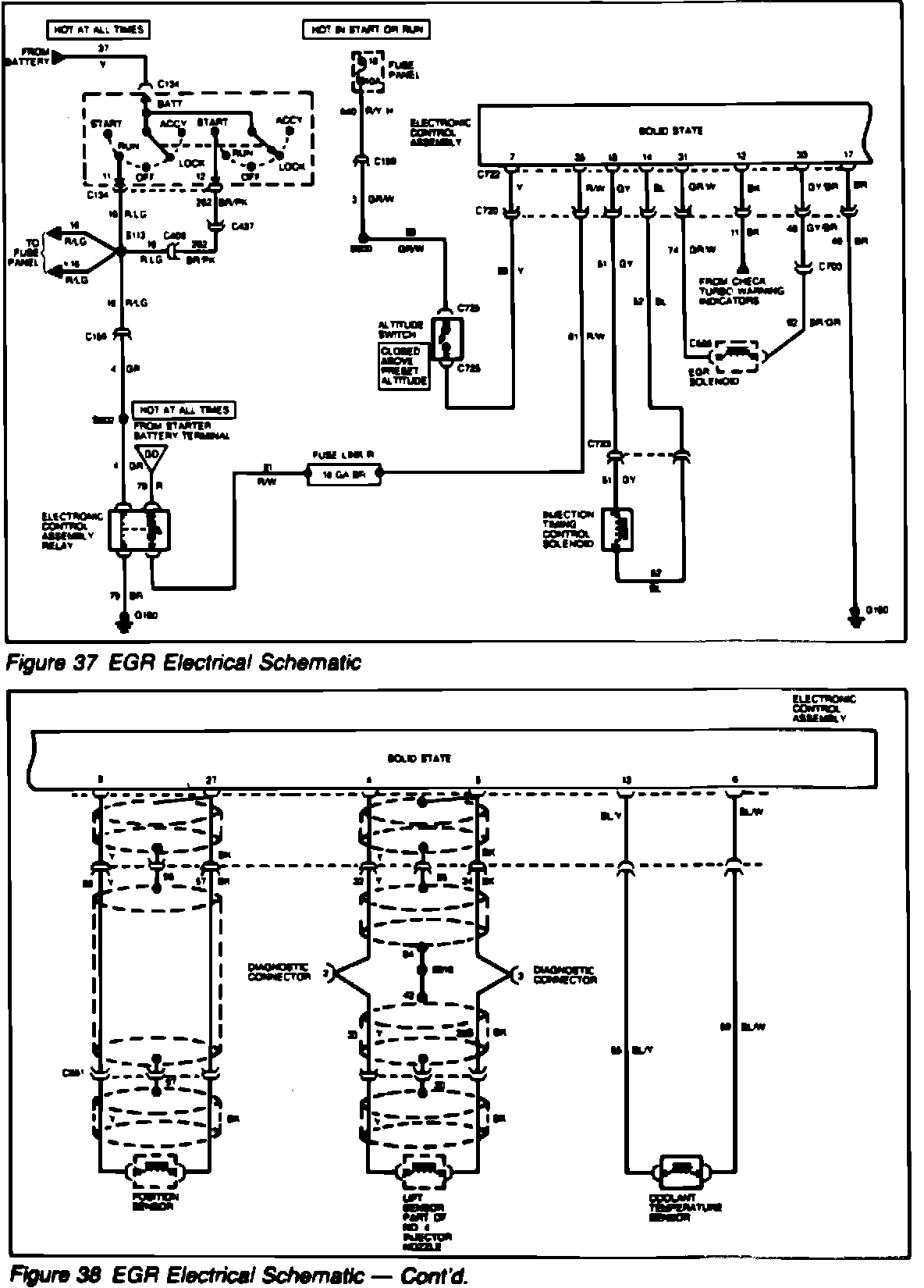

EGR System:

Diesel Diagnostic Manual, Page 26-24 Remove words regarding EGR microswitch and temperature switch wiring.

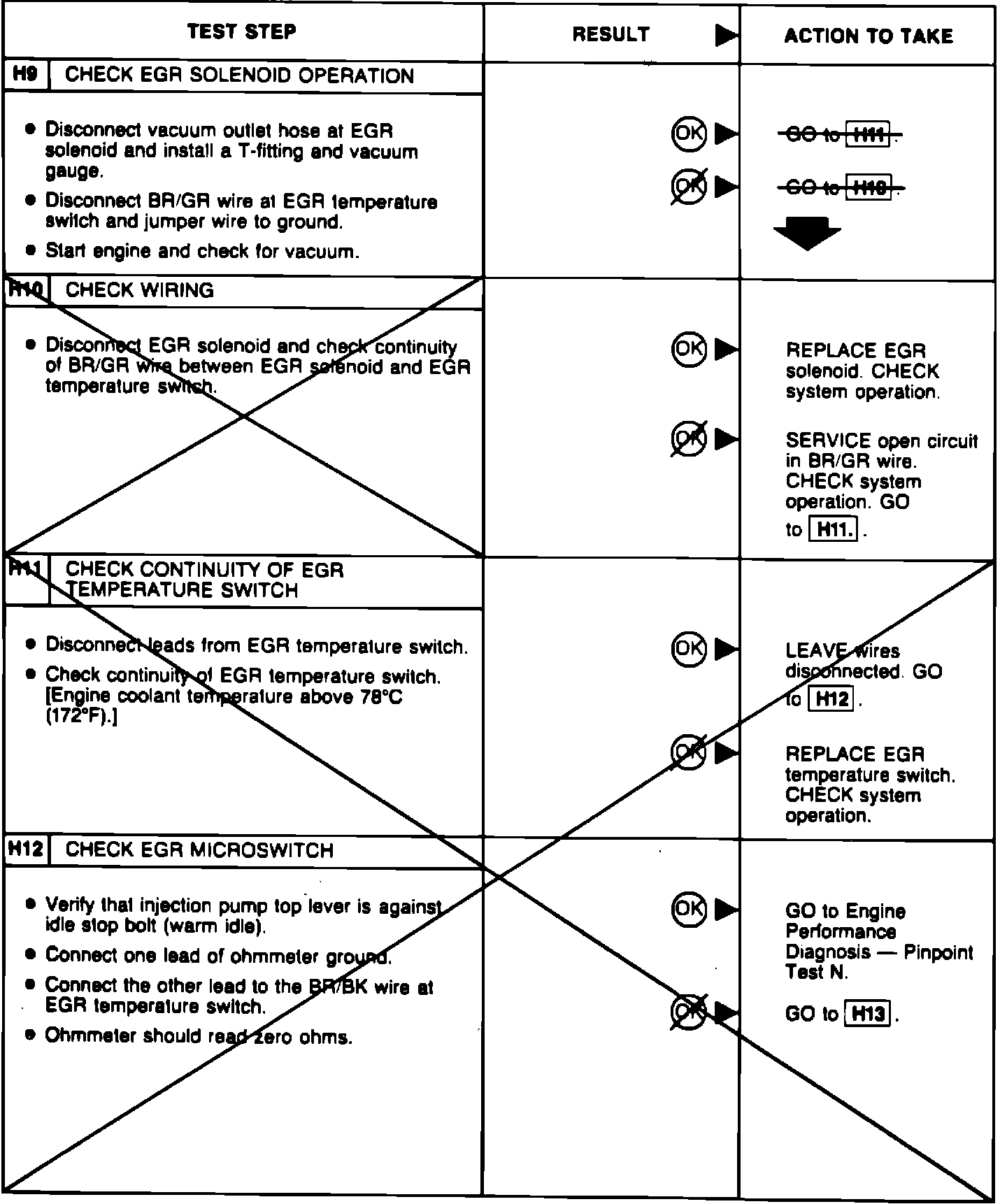

EGR System Diagnosis:

Diesel Diagnostic Manual, Page 26-47 Remove words regarding microswitch and temperature sensor checks.

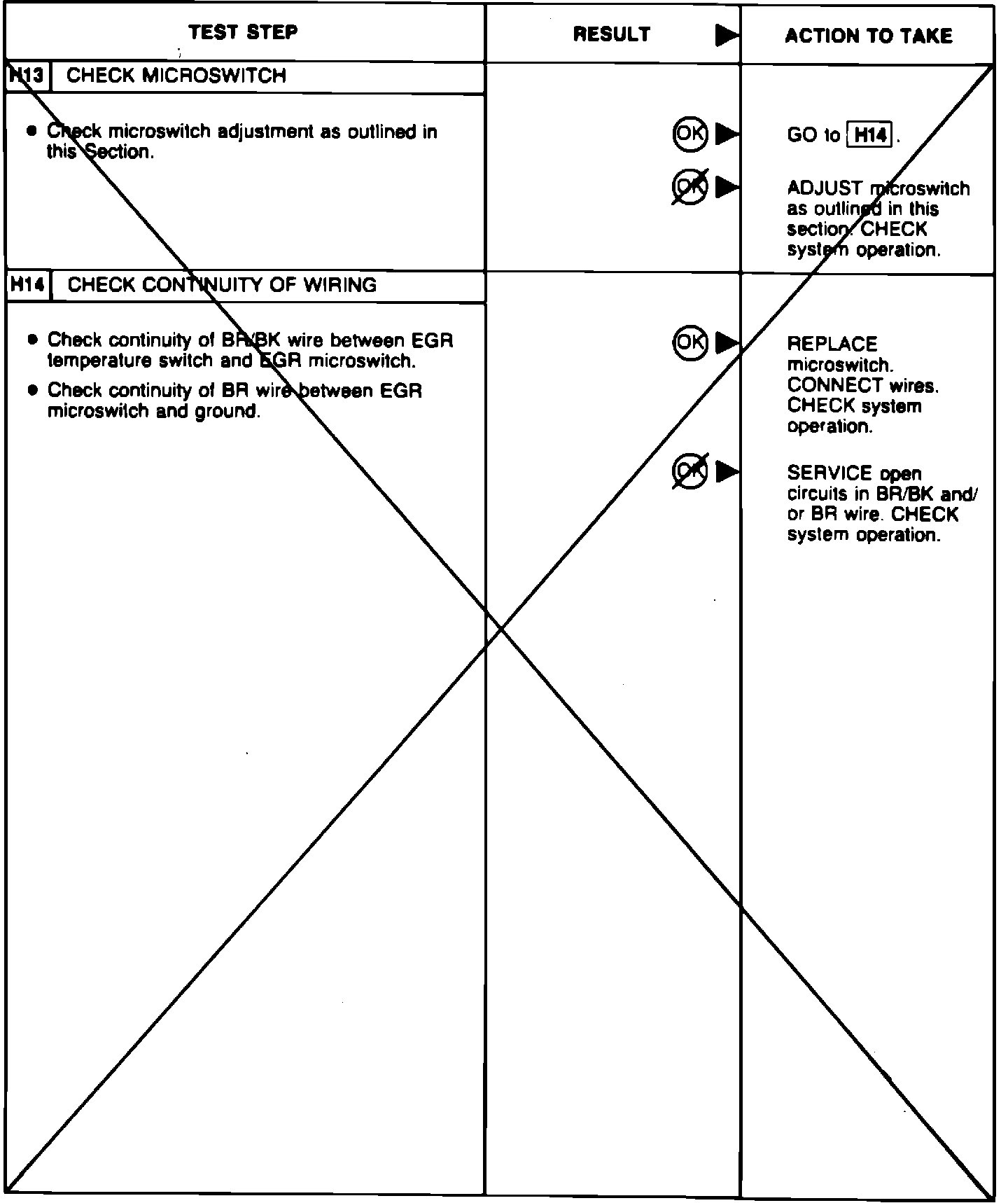

EGR System Diagnosis:

Diesel Diagnostic Manual, Page 26-48 Delete entire page.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: "INFORMATION ONLY"
