Less Keyless Entry

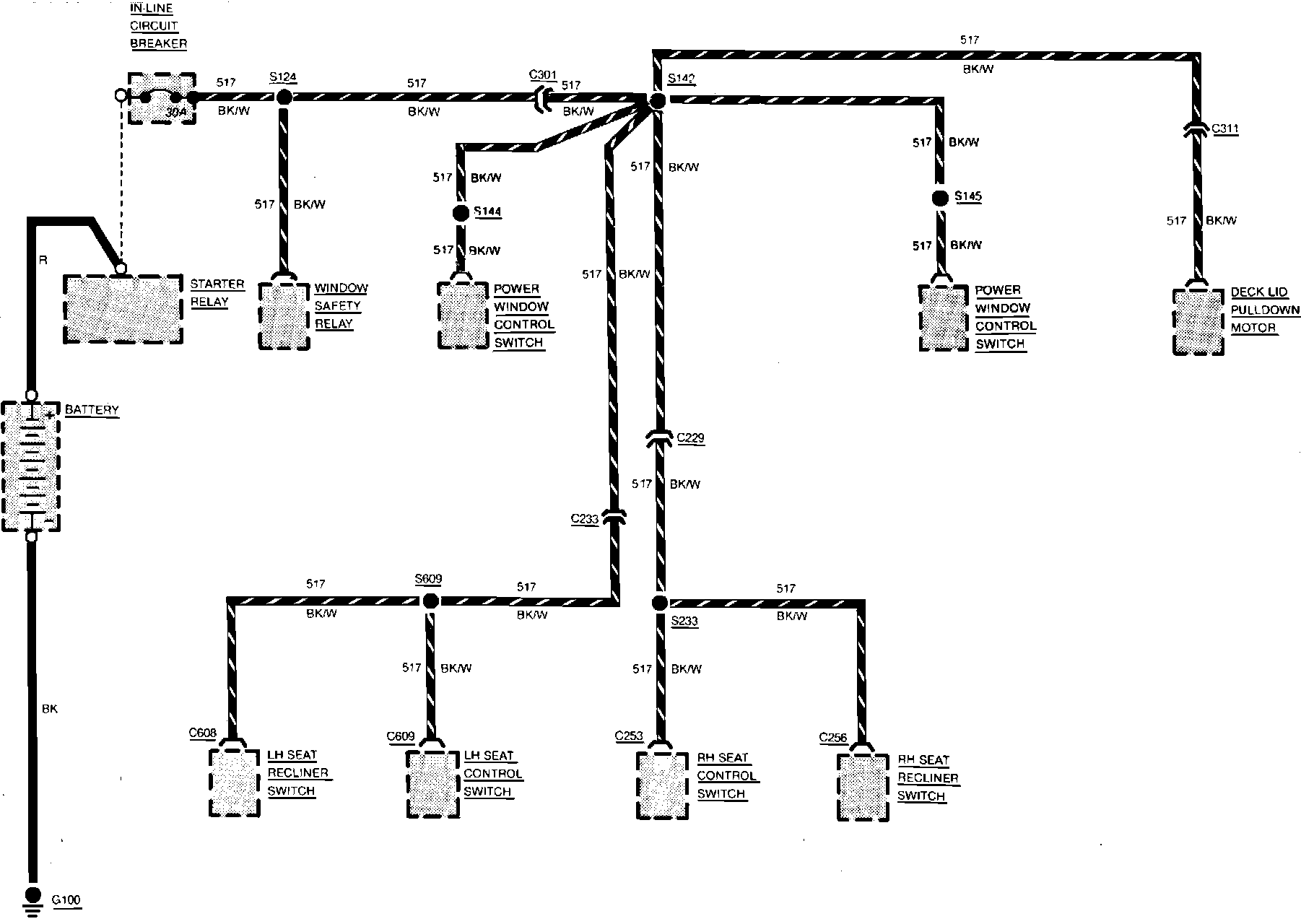

Fig. 55 Power Distribution Wiring Circuit (Circuit 517 Less Keyless Entry System). Continental:
