Brakes and Traction Control: Diagrams

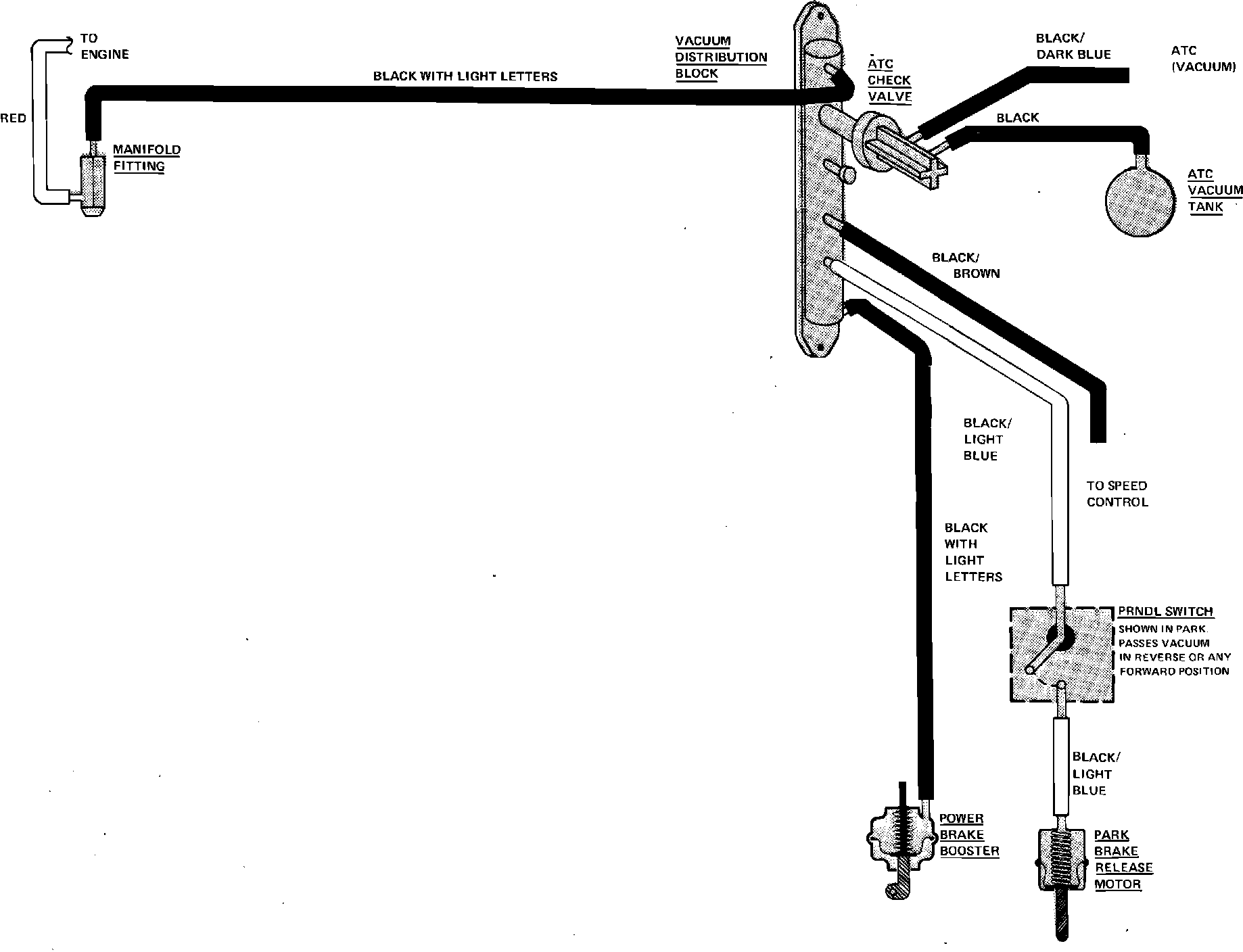

Fig. 94 Vacuum Distribution. Town Car:

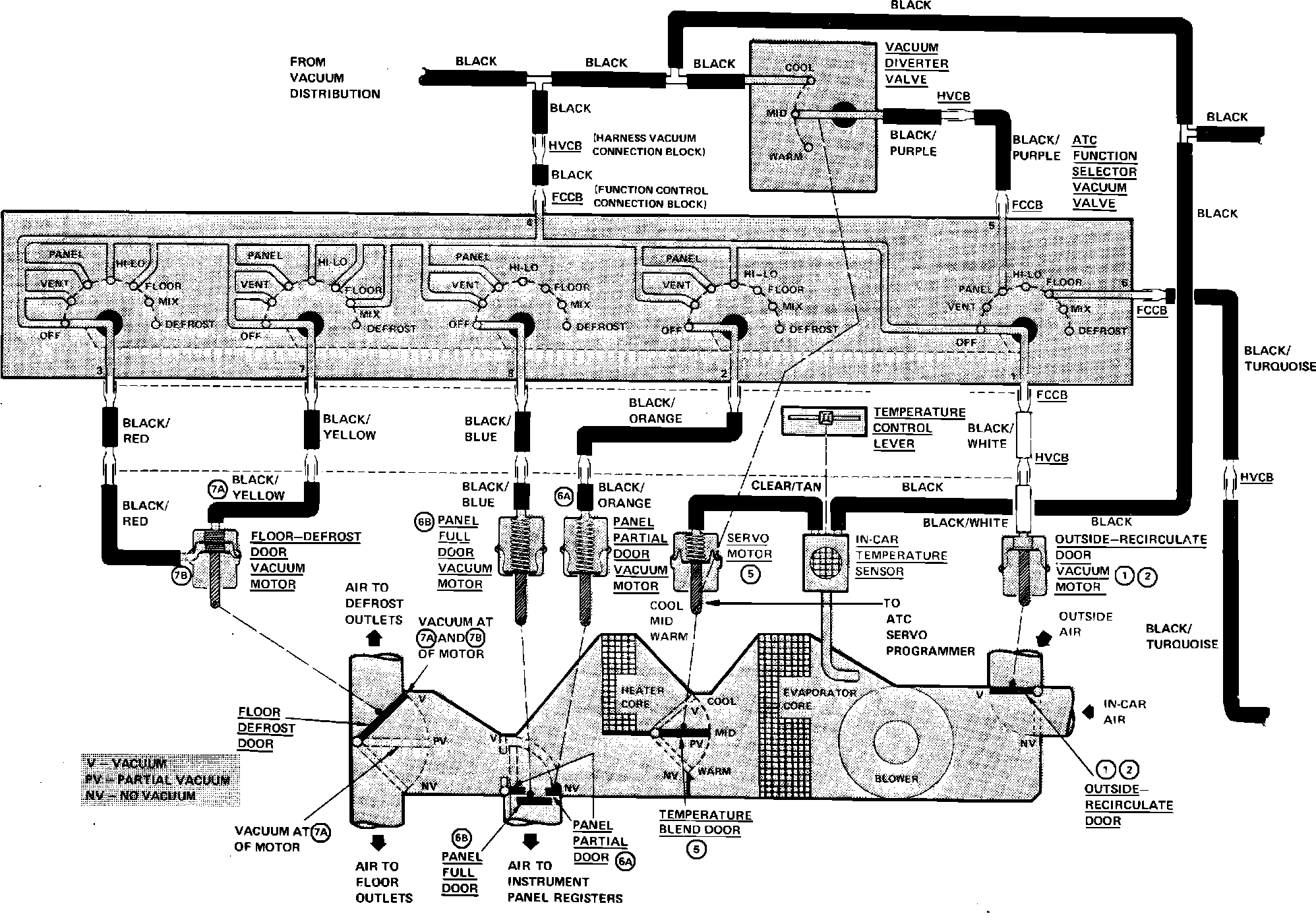

Fig. 98 Automatic Temperature Control Vacuum & Wiring Circuits (Part 1 of 2). Town Car:

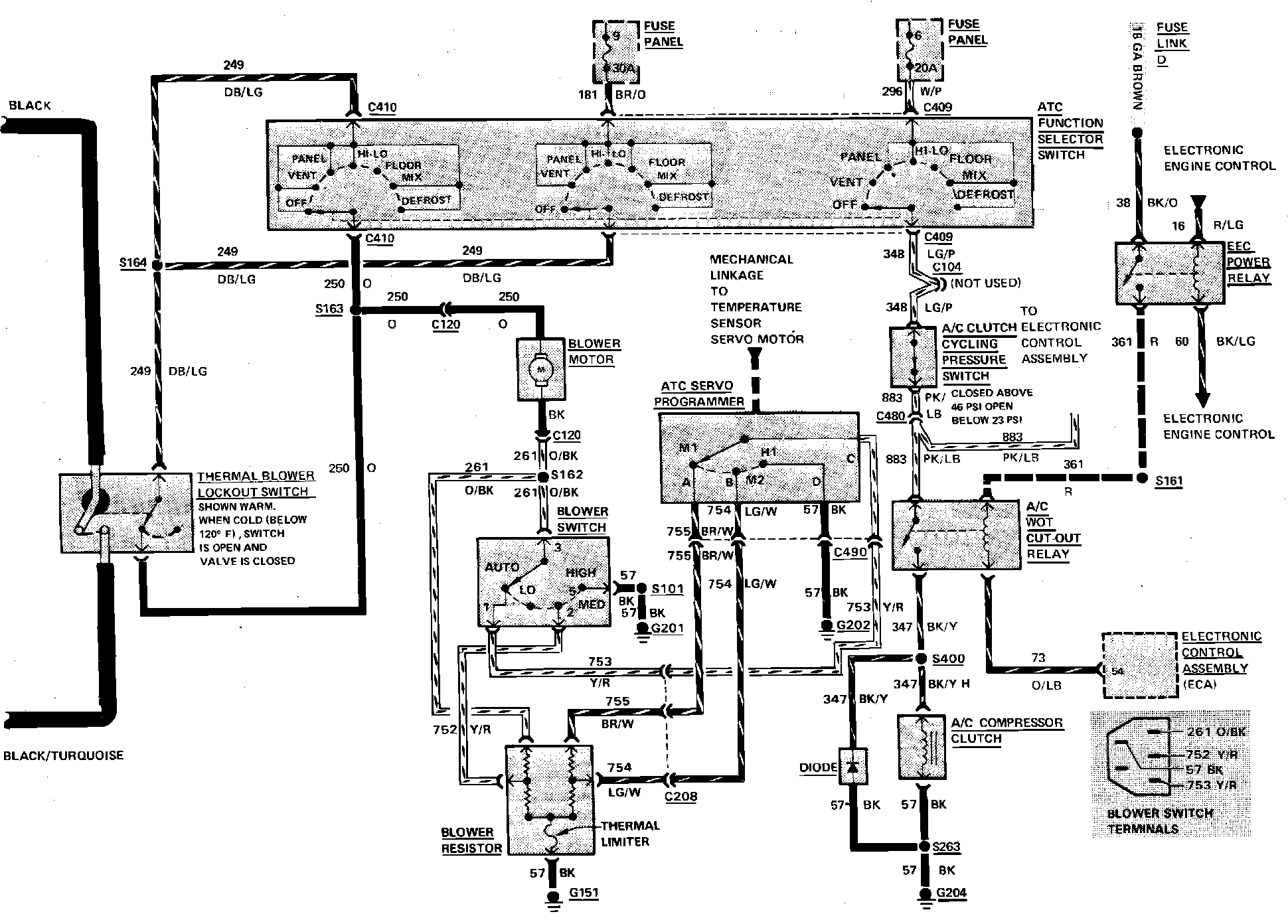

Fig. 98 Automatic Temperature Control Vacuum & Wiring Circuits (Part 2 of 2). Town Car:

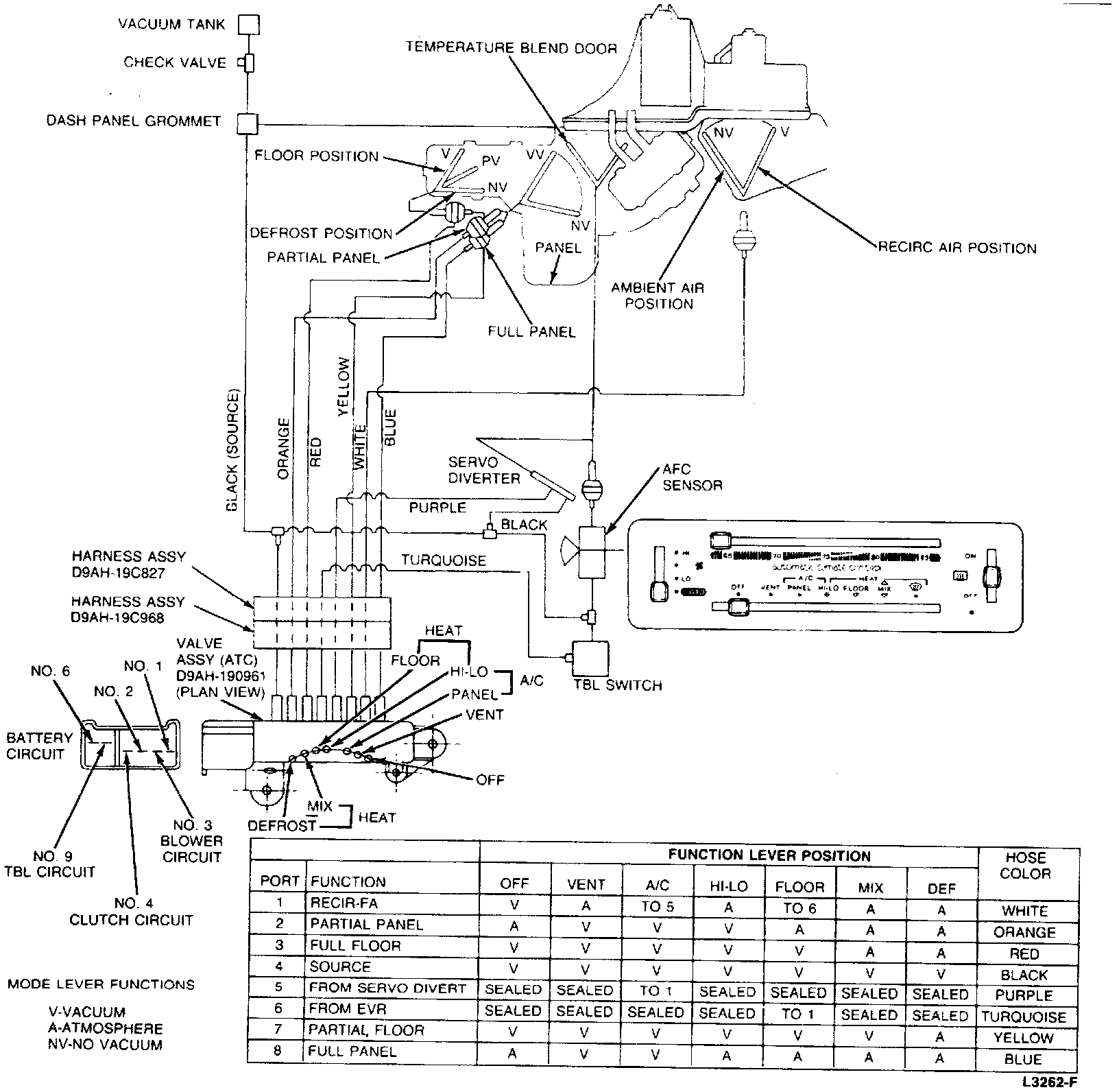

ATC System Airflow Schematic And Vacuum Control Chart:
