Less Message Center

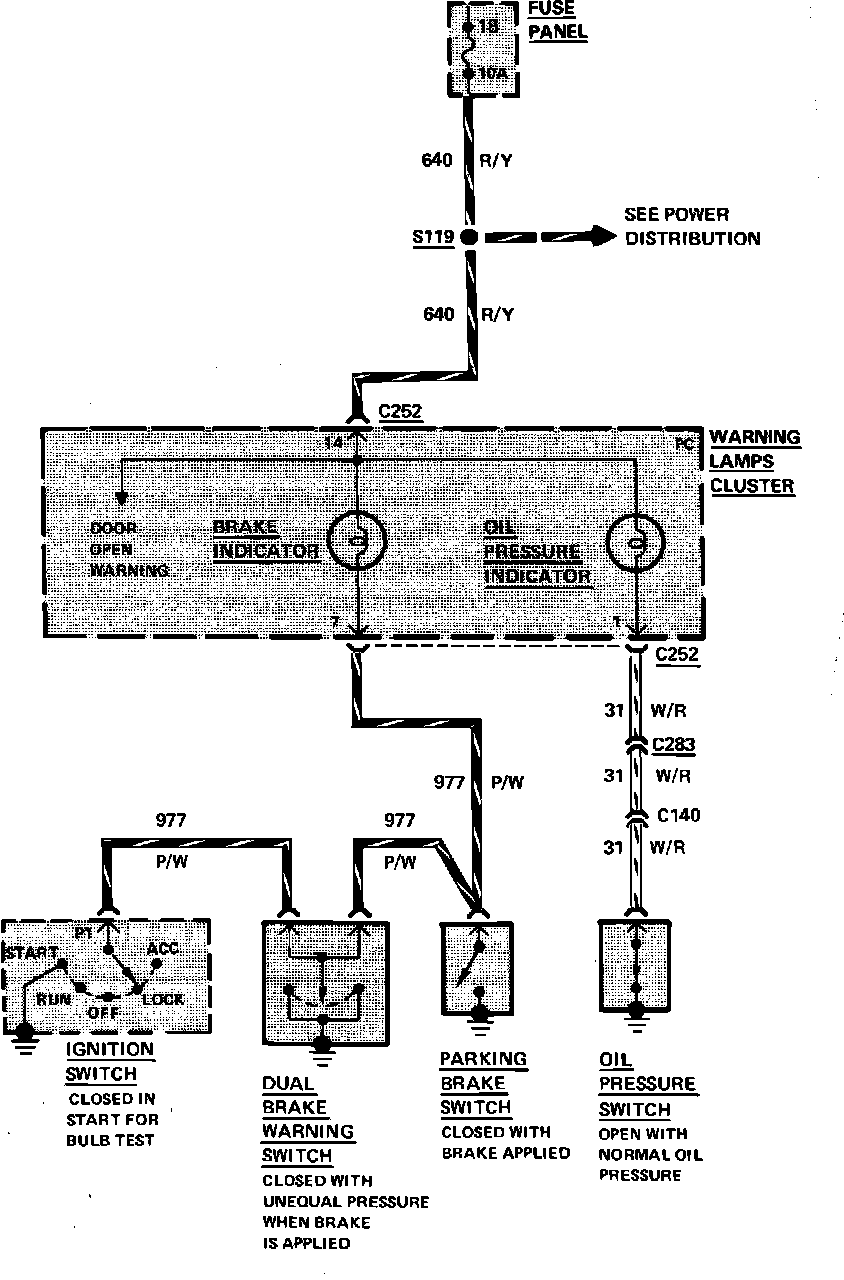

Fig. 157 Brake & Oil Warning Indicators Wiring Circuit (Less Message Center). Town Car:
