Home >> Lincoln >> 1987 >> Town Car V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cellular Phone

Cellular Phone

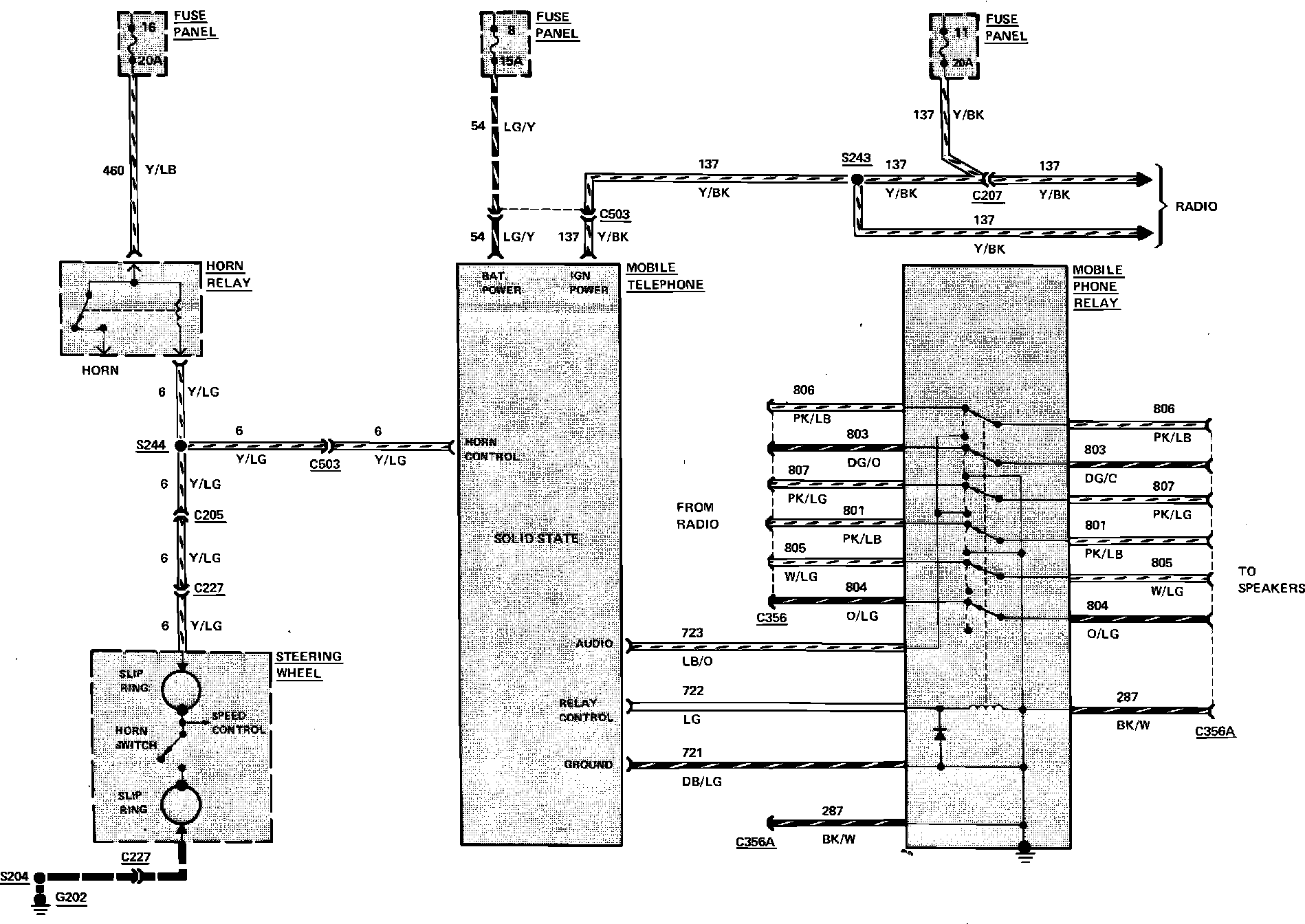

Fig. 139 Mobile Phone Wiring Circuit. Town Car:
