Seats
>>
With Programmable Seats
With Programmable Seats

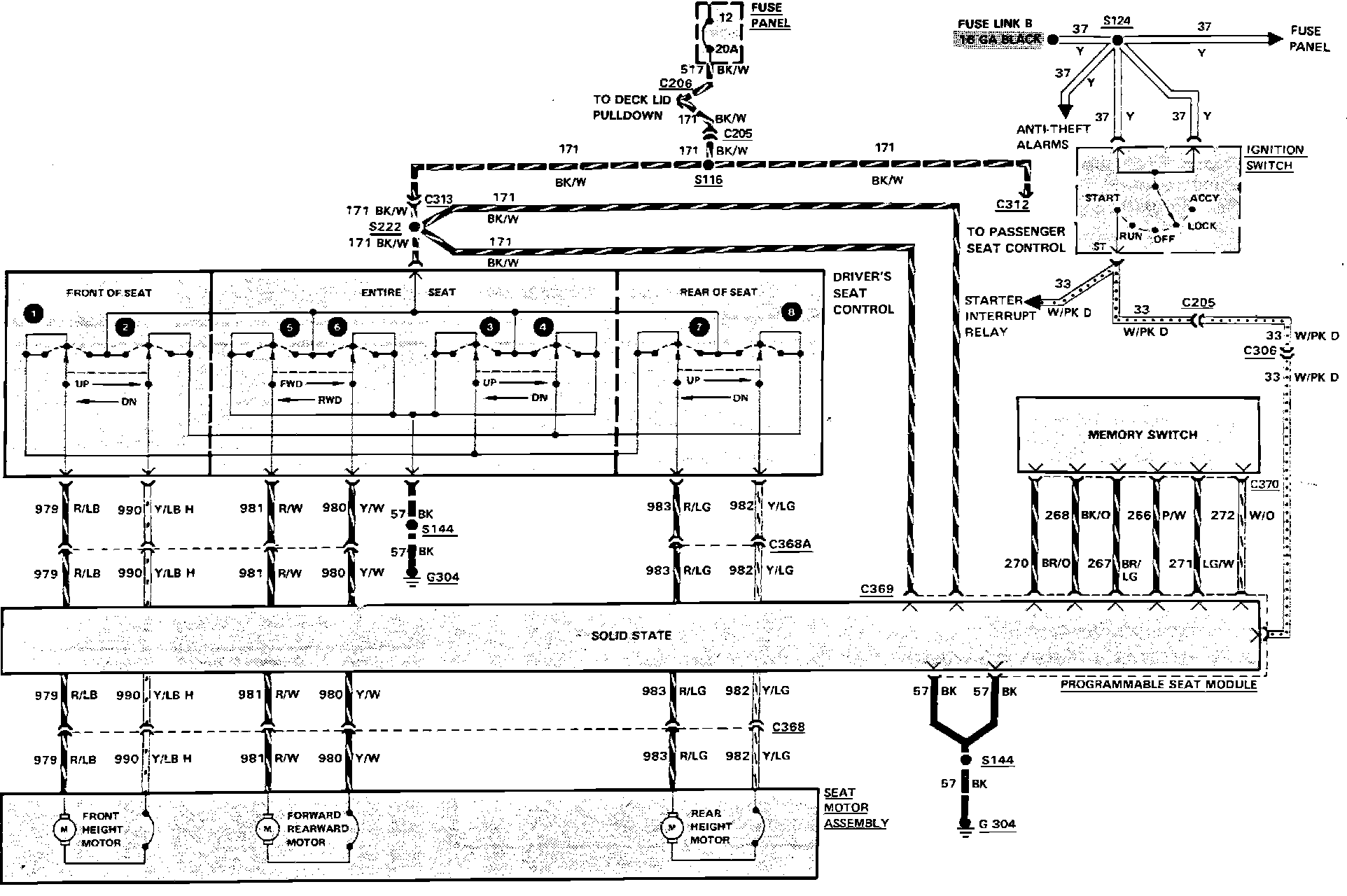

Fig. 149 Power Seats Wiring Circuit (W/Programmable Seat). Town Car:
