Engine Controls

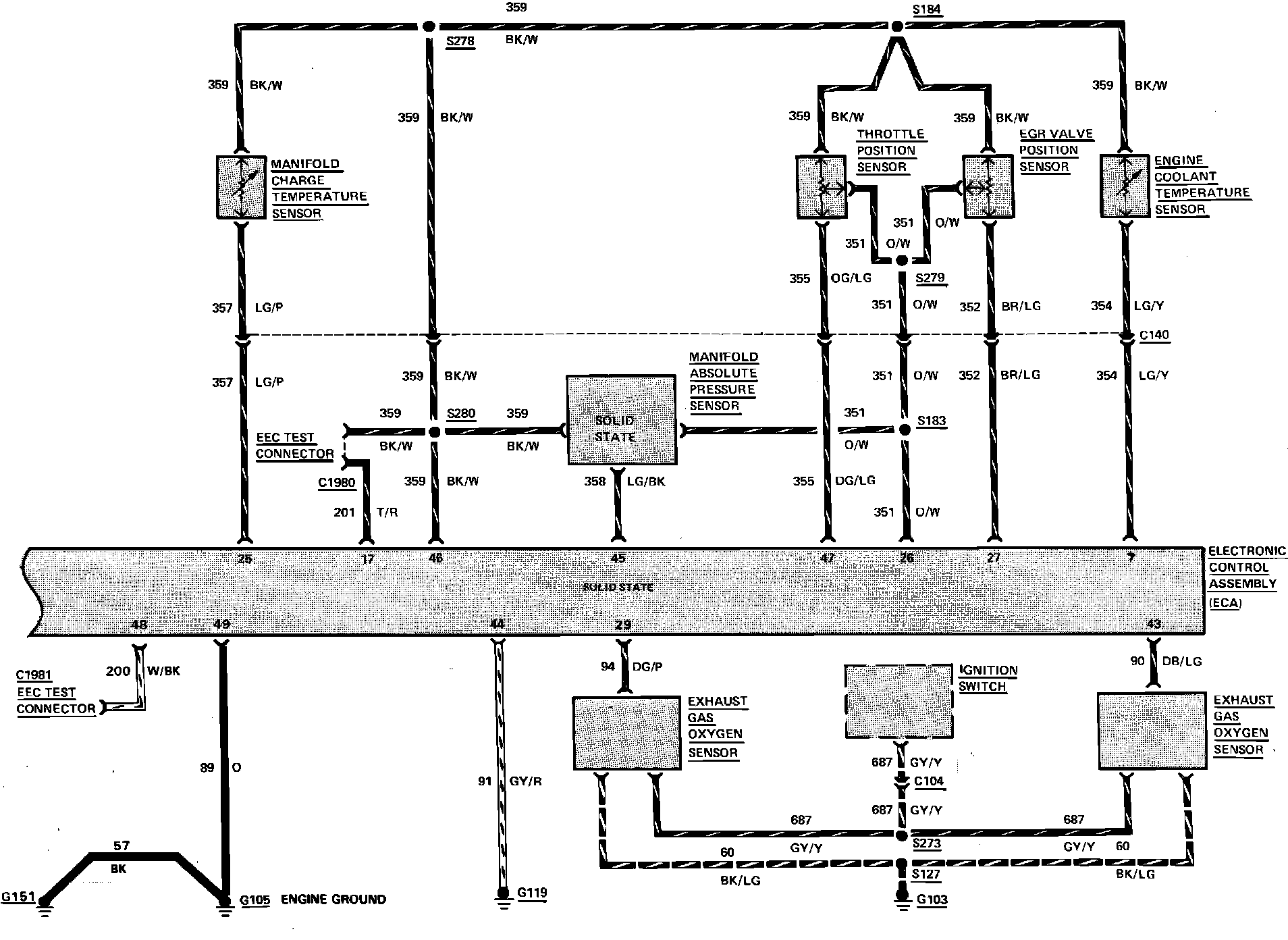

Fig. 107 Electronic Engine Control Wiring Circuit (Part 1 of 4). Town Car:

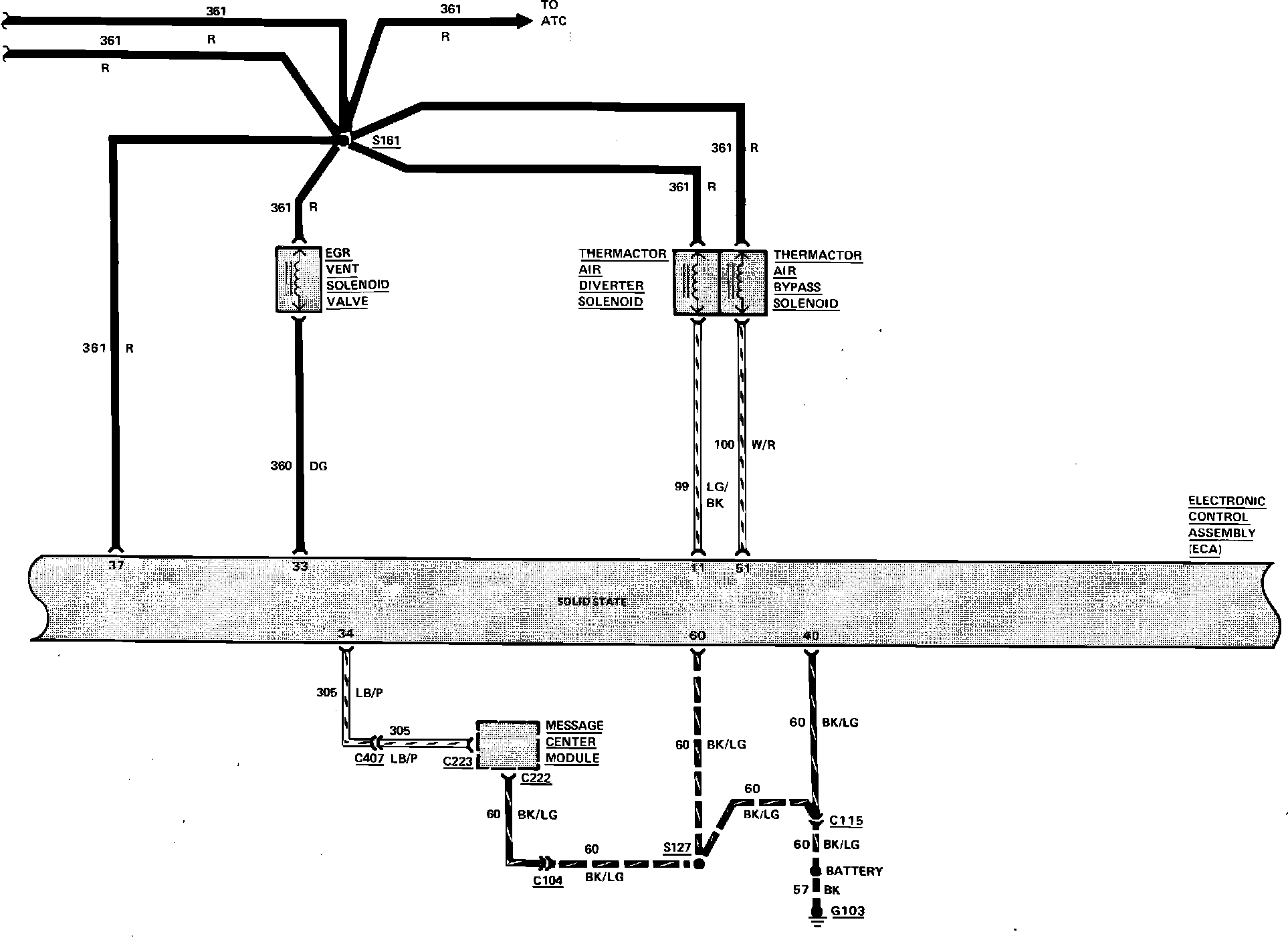

Fig. 107 Electronic Engine Control Wiring Circuit (Part 2 of 4). Town Car:

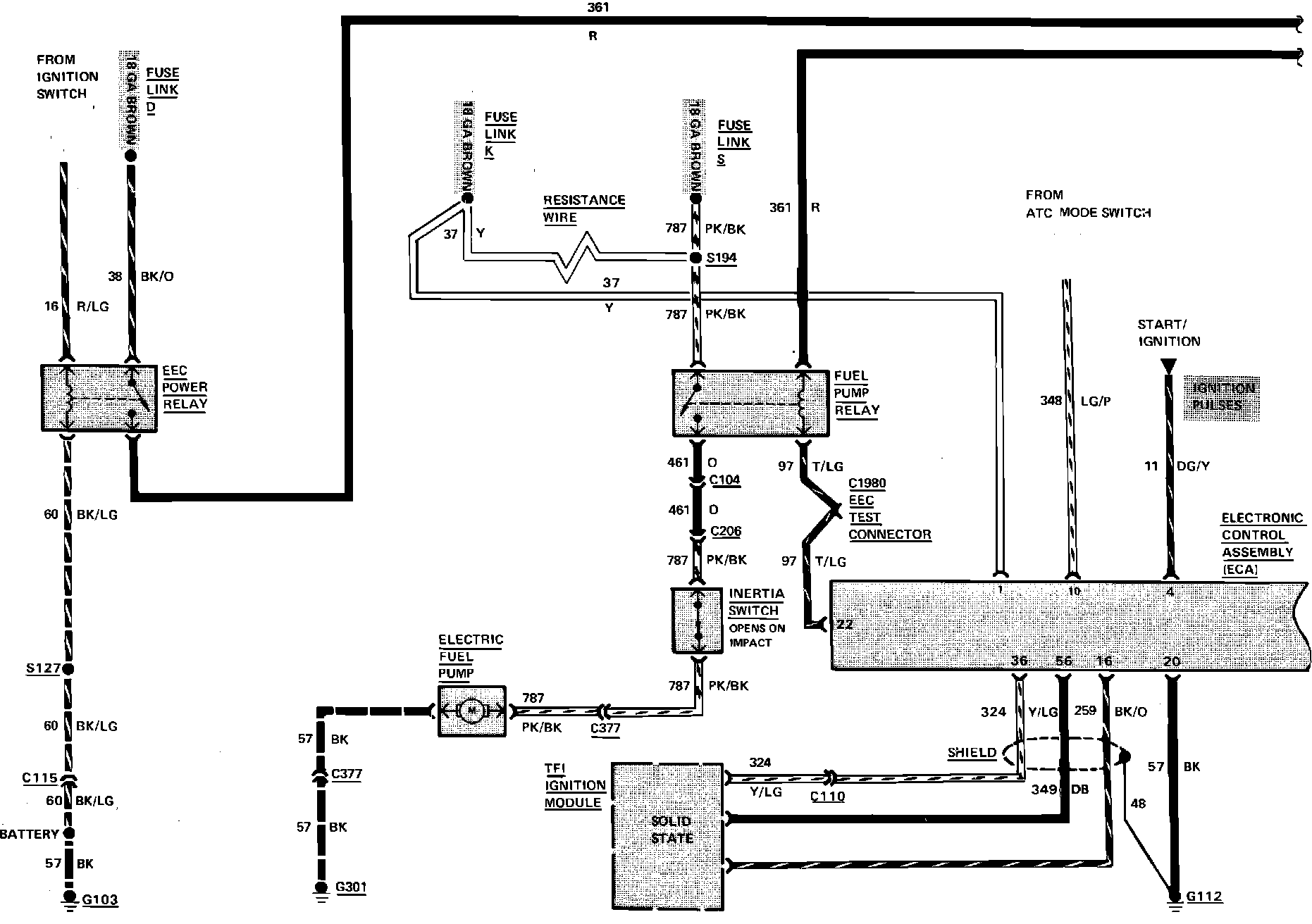

Fig. 107 Electronic Engine Control Wiring Circuit (Part 3 of 4). Town Car:

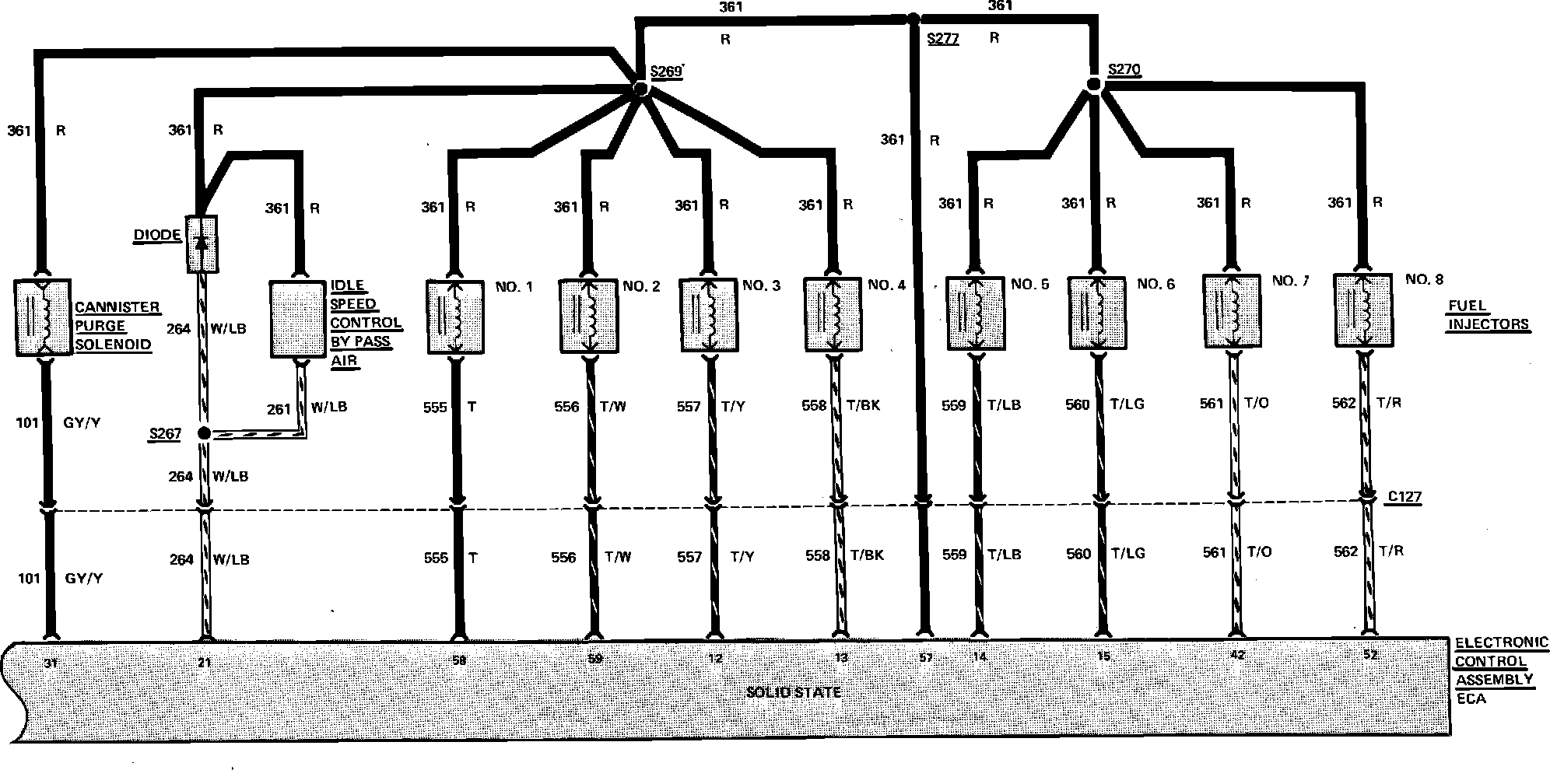

Fig. 107 Electronic Engine Control Wiring Circuit (Part 4 of 4). Town Car:
