Defroster Nozzle

REMOVAL AND INSTALLATION
1. Remove steering column assembly and instrument panel assembly. See Steering Column and Instrument Panel.
2. Disconnect demister hose from C-shaped plastic retainer located along lower flange on nozzle assembly.
3. Loosen two screws retaining plenum to instrument panel and louver plenum.

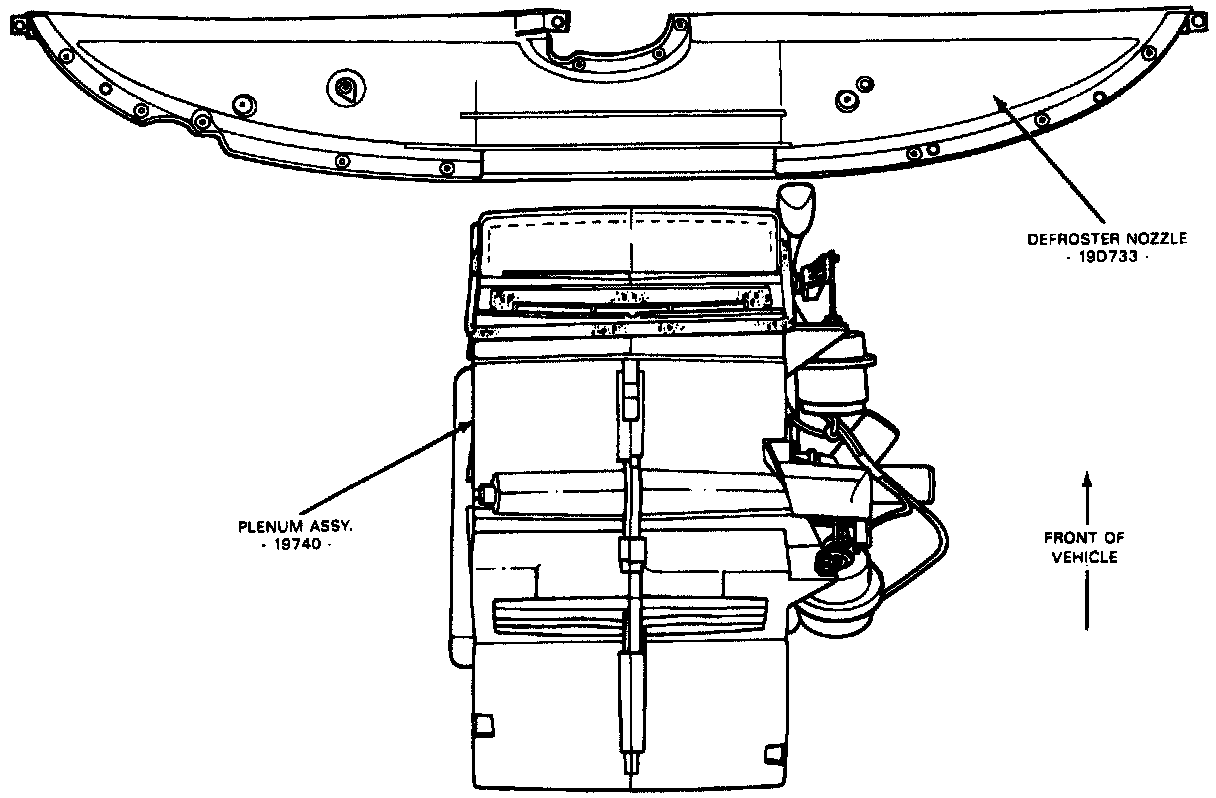

4. Remove one screw retaining defroster nozzle to plenum (illustration).
5. Remove three screws retaining upper end of nozzle to instrument panel.
6. Remove nozzle.
7. To install defroster nozzle, reverse Steps 1 through 6.
