A/C Plenum Demister Adapter

REMOVAL AND INSTALLATION
1. Remove steering column assembly. See Steering Column.
2. Remove instrument panel assembly with attached A/C plenum assembly. See Instrument Panel.
3. Disconnect demister hoses from adapter.

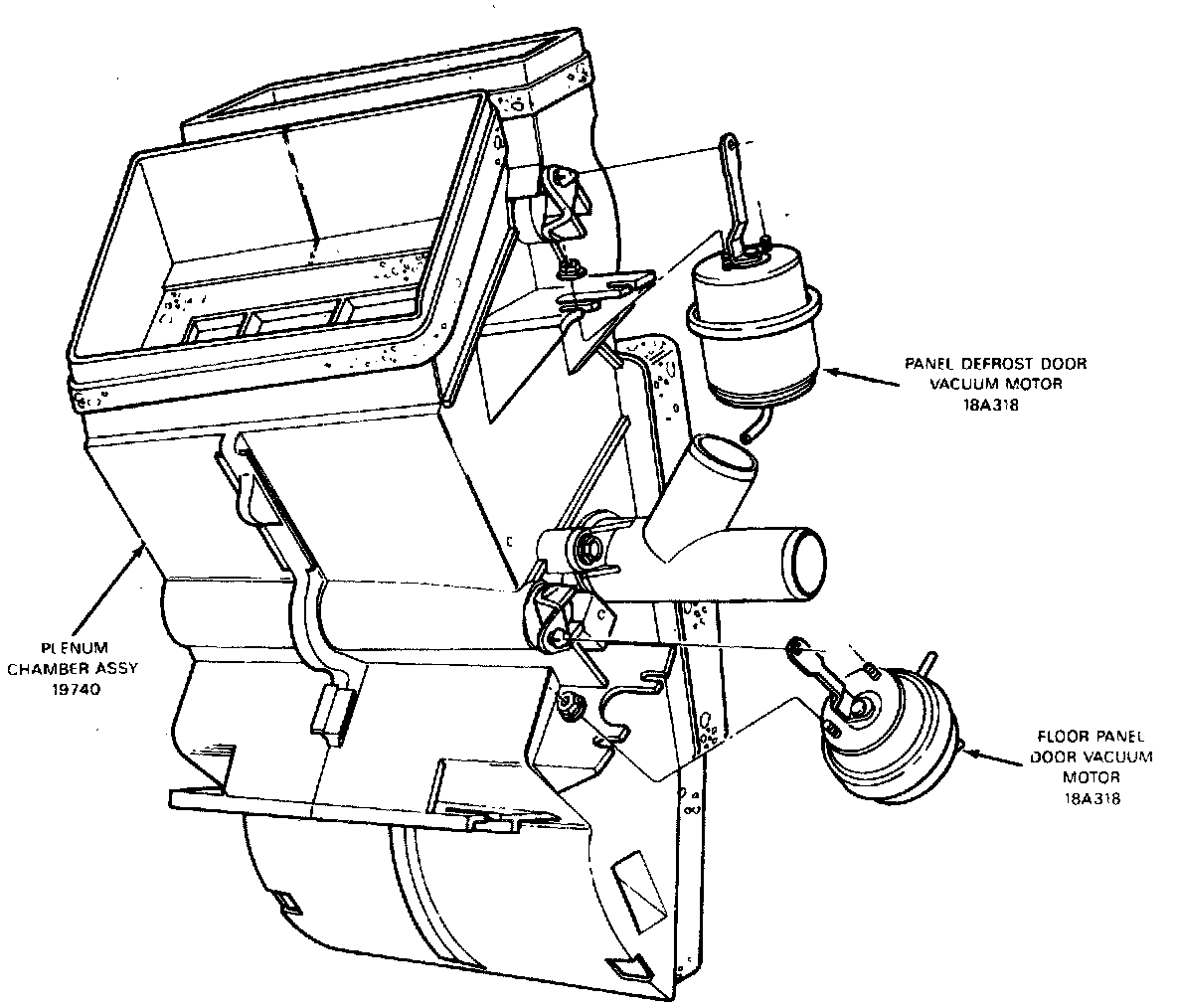

4. Remove one screw retaining demister adapter to the plenum chamber assembly (illustration).
5. To install adapter, reverse Steps 1 through 4.
