A Warning Indicator ON/Brake Warning OFF)

A1-A2:






A3-A6:

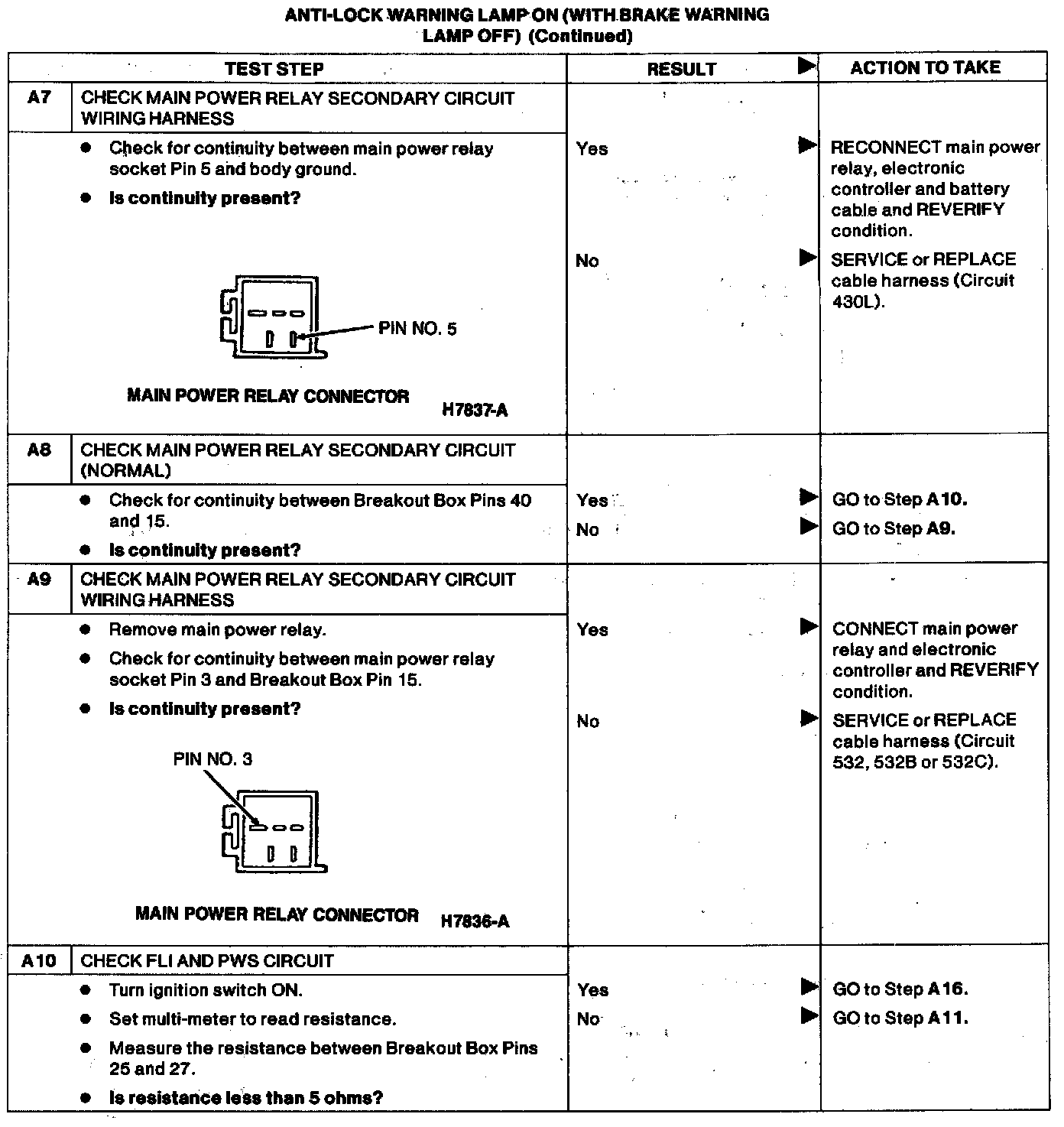

A7-A10:

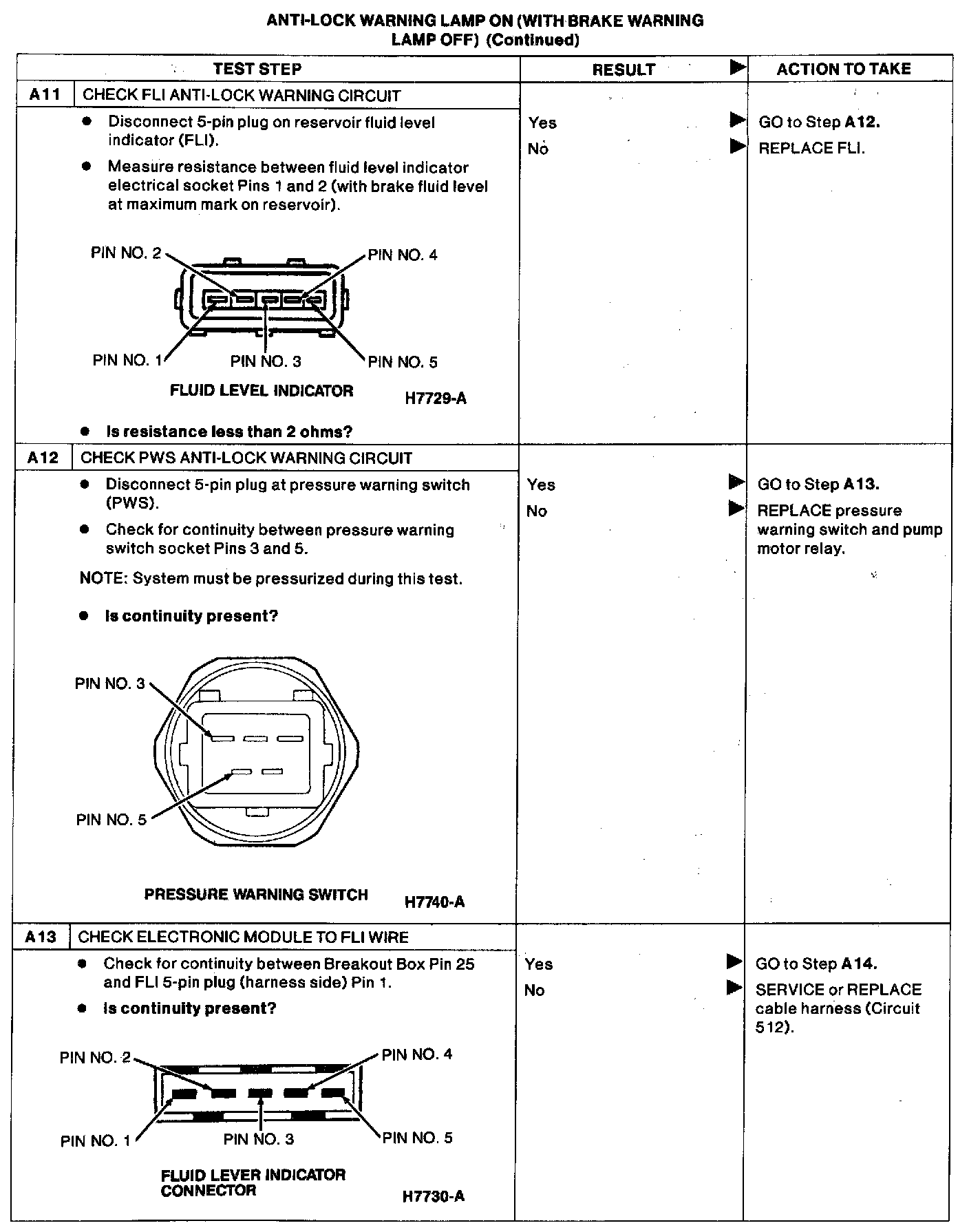

A11-A13:

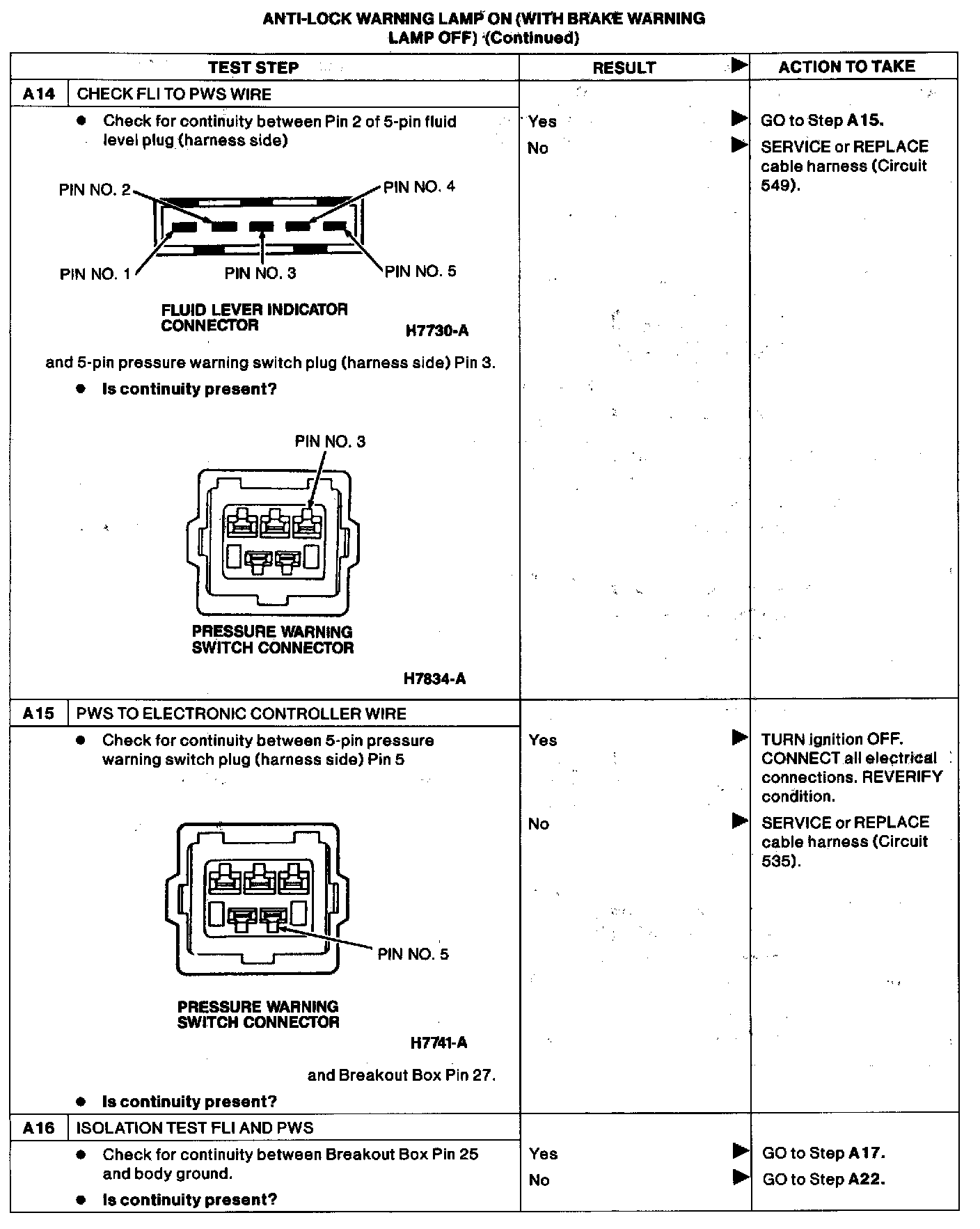

A14-A16:

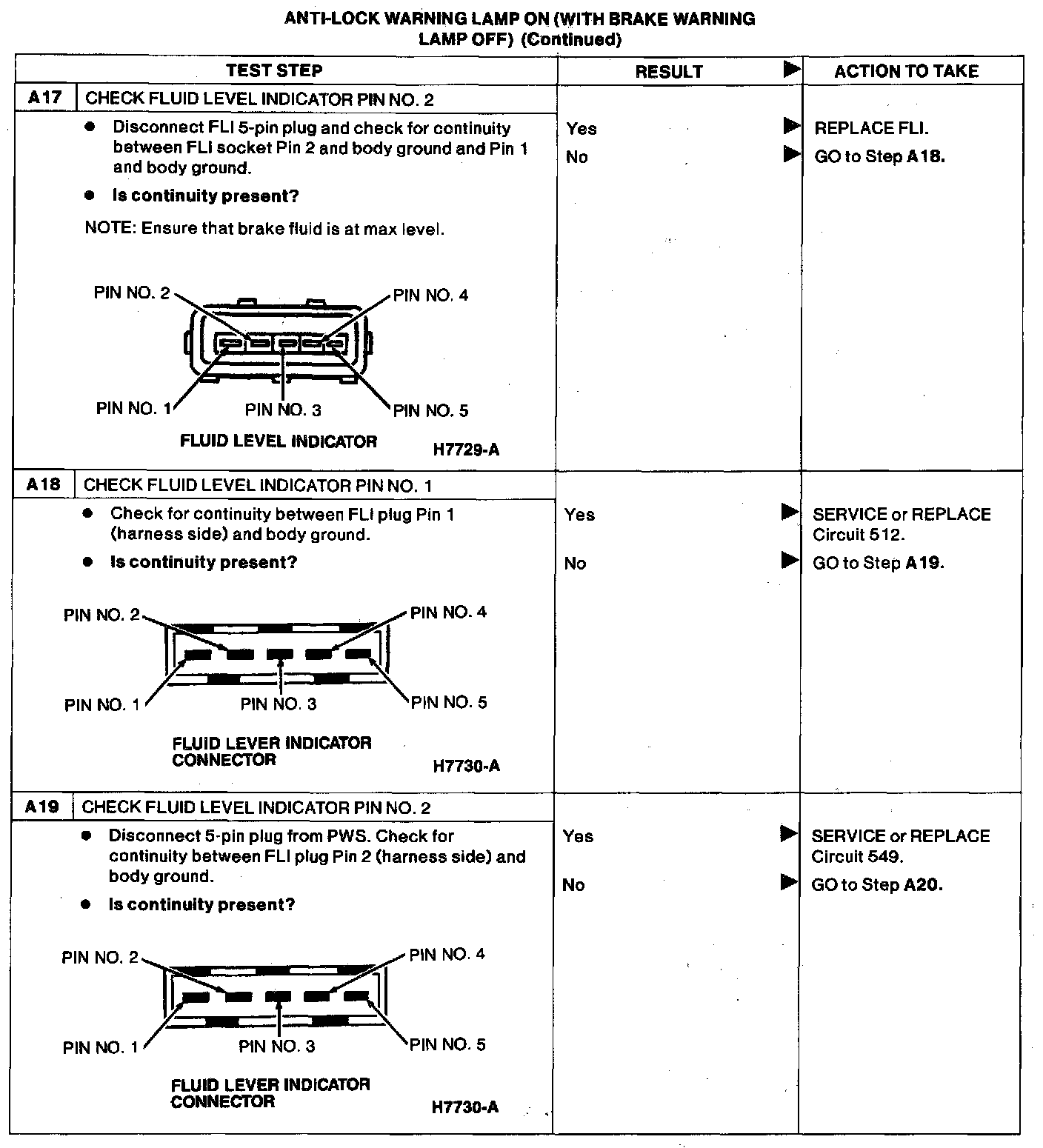

A17-A19:

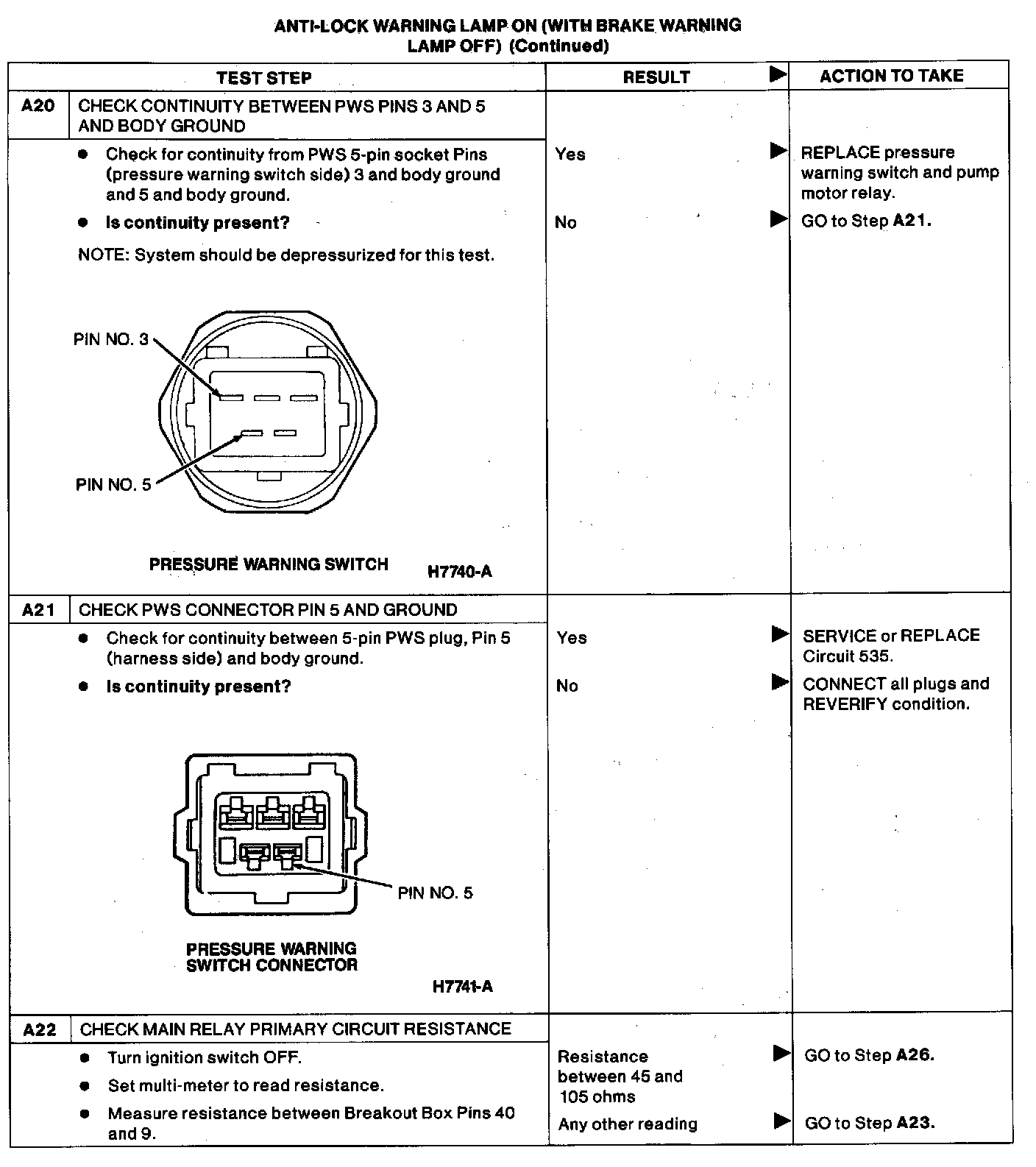

A20-A22:

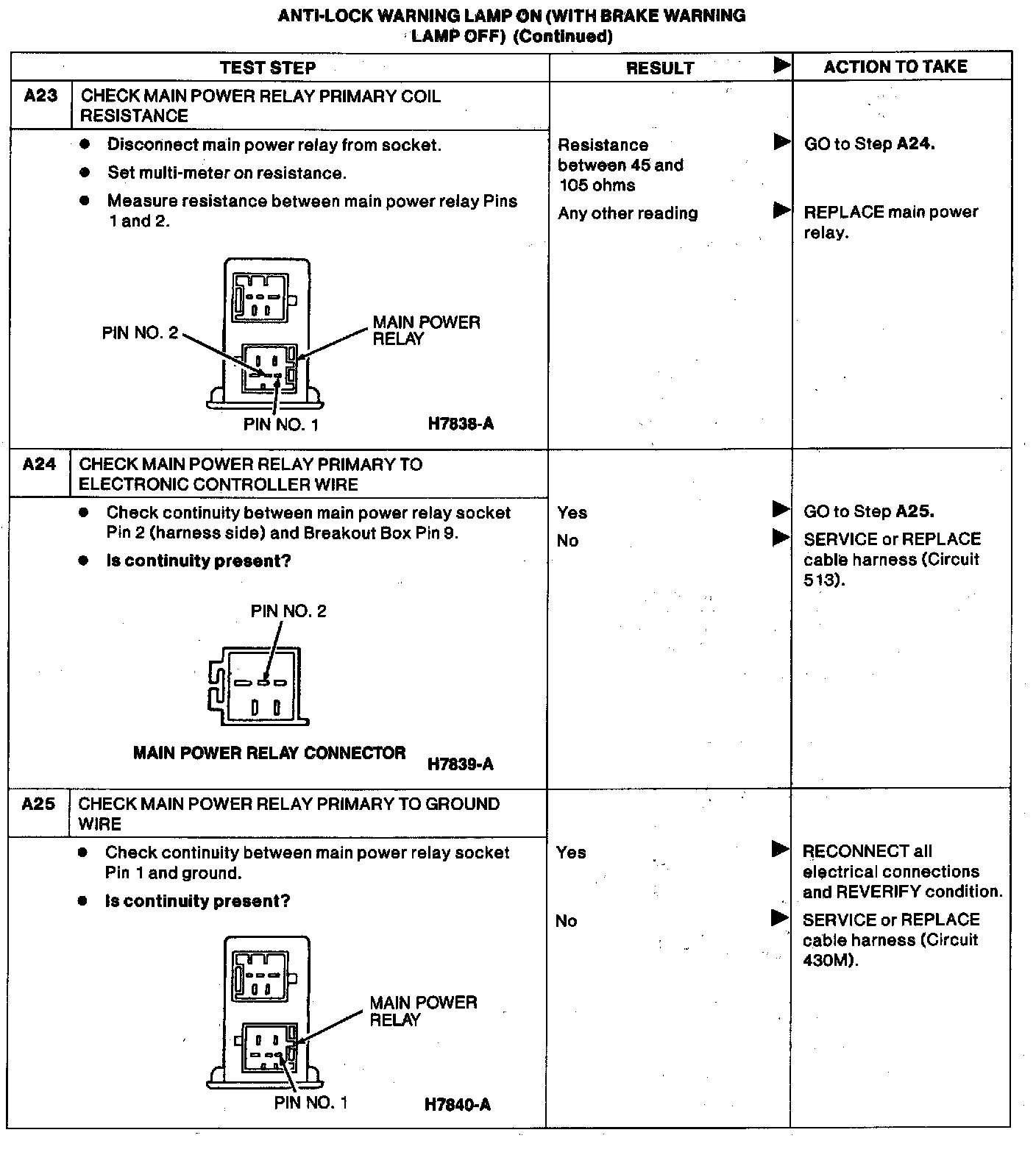

A23-A25:

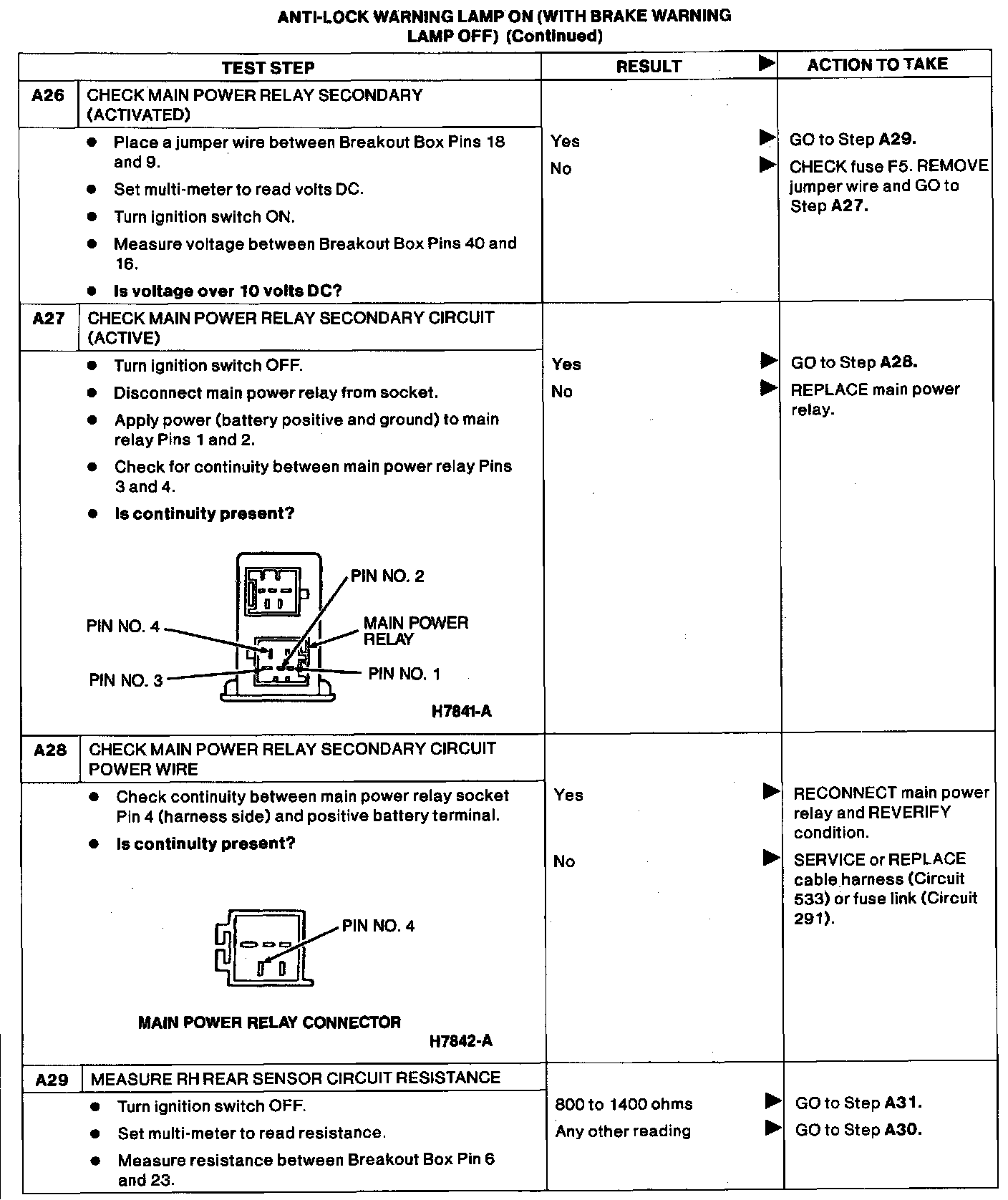

A26-A29:

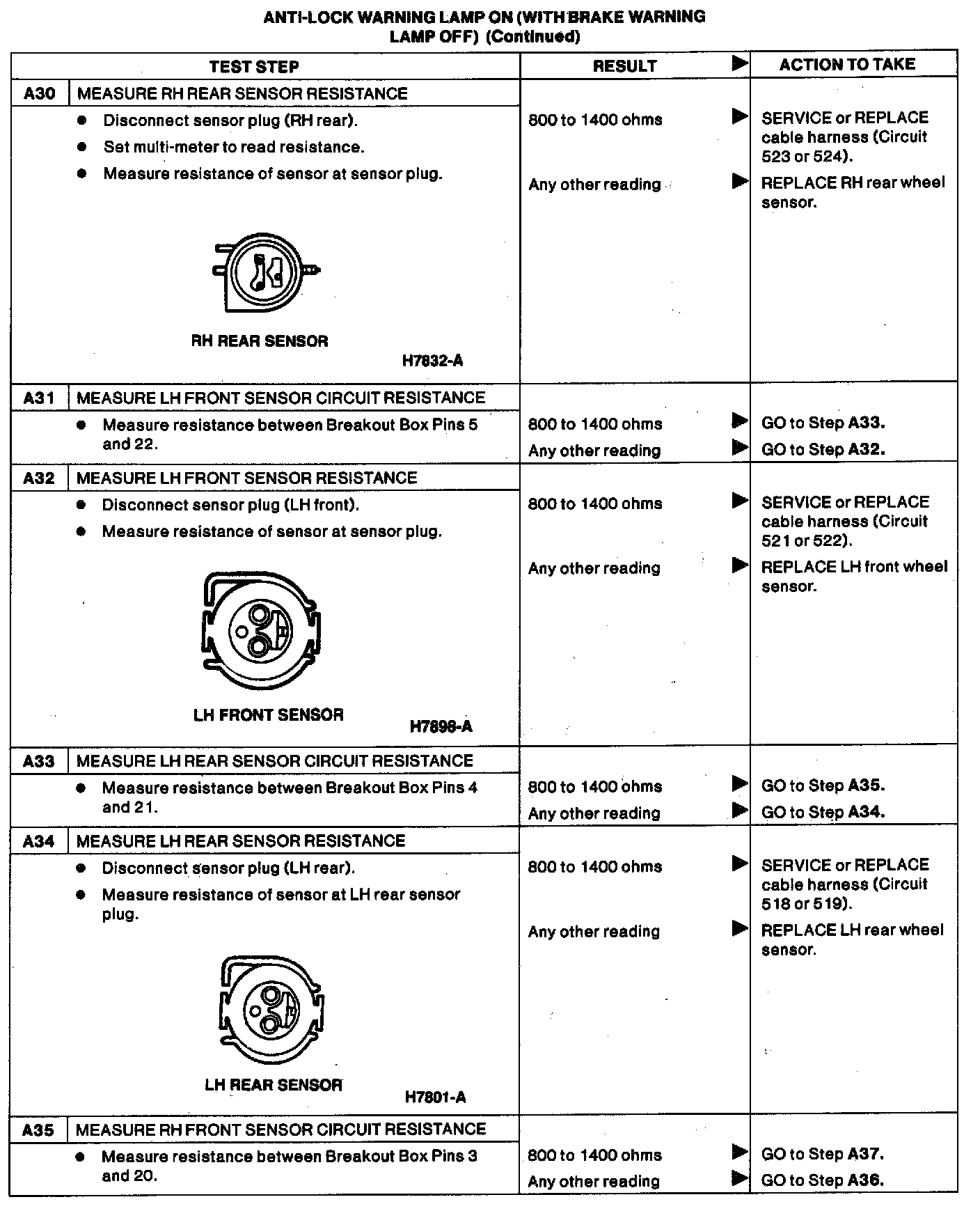

A30-A35:

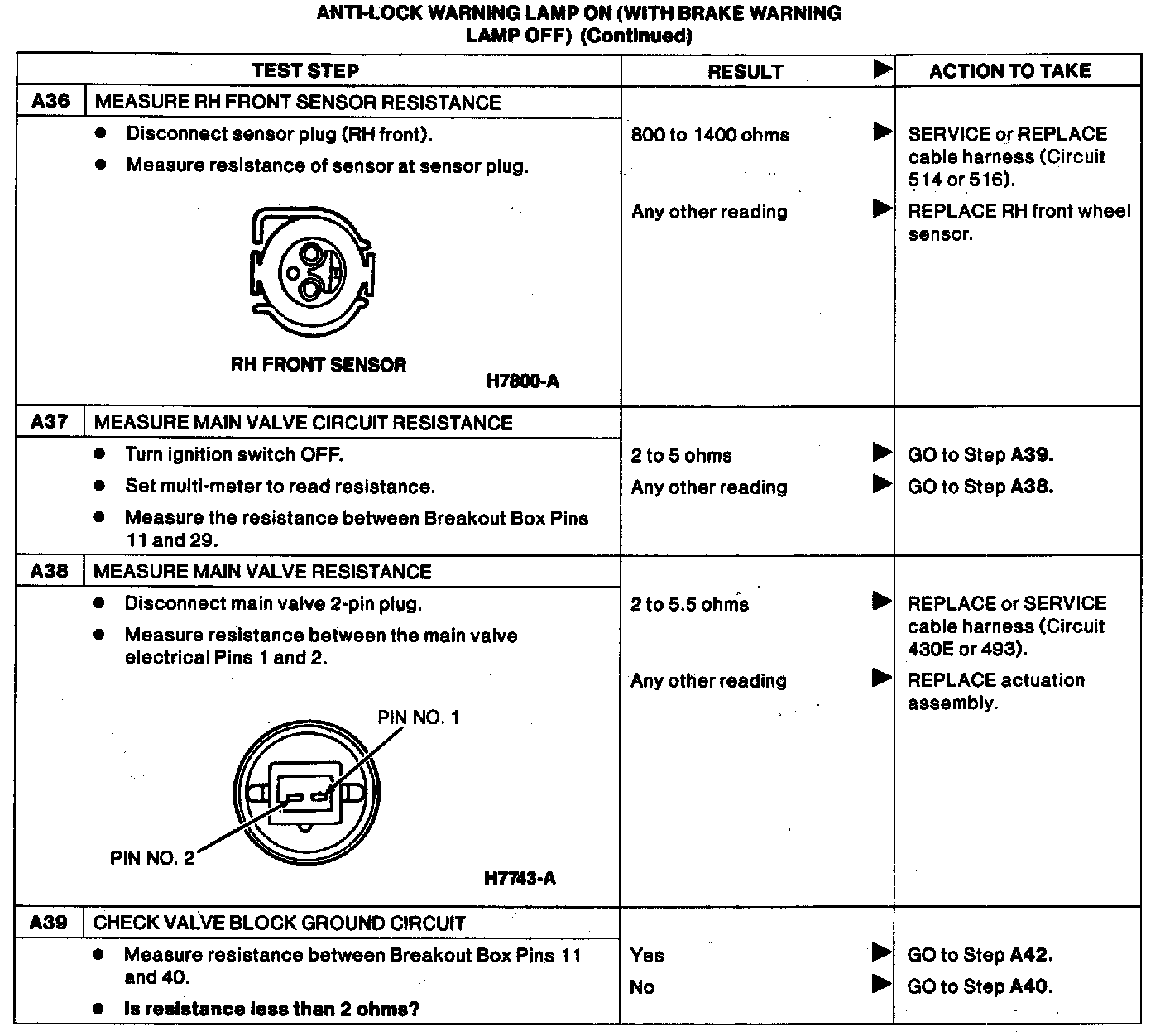

A36-A39:

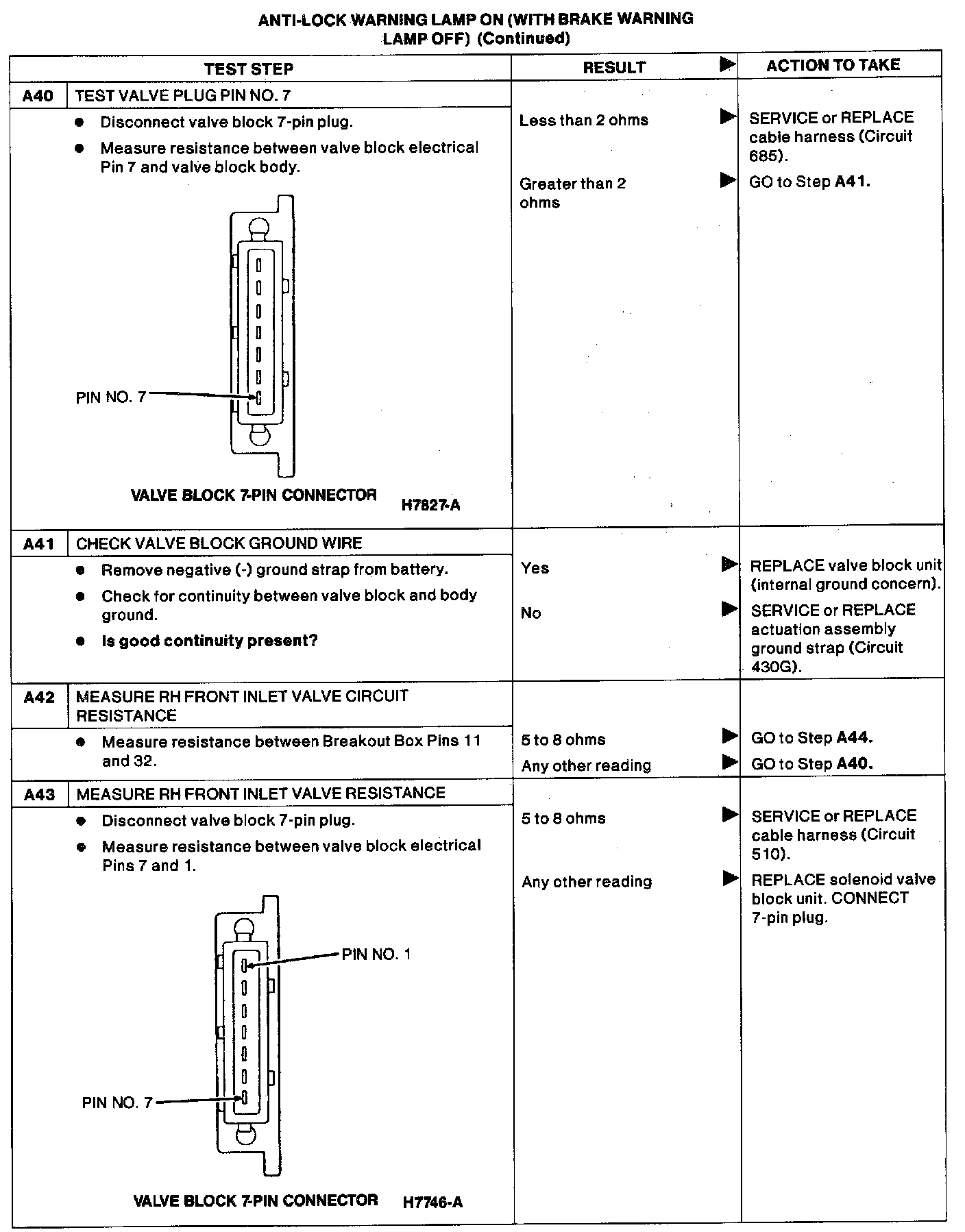

A40-A43:

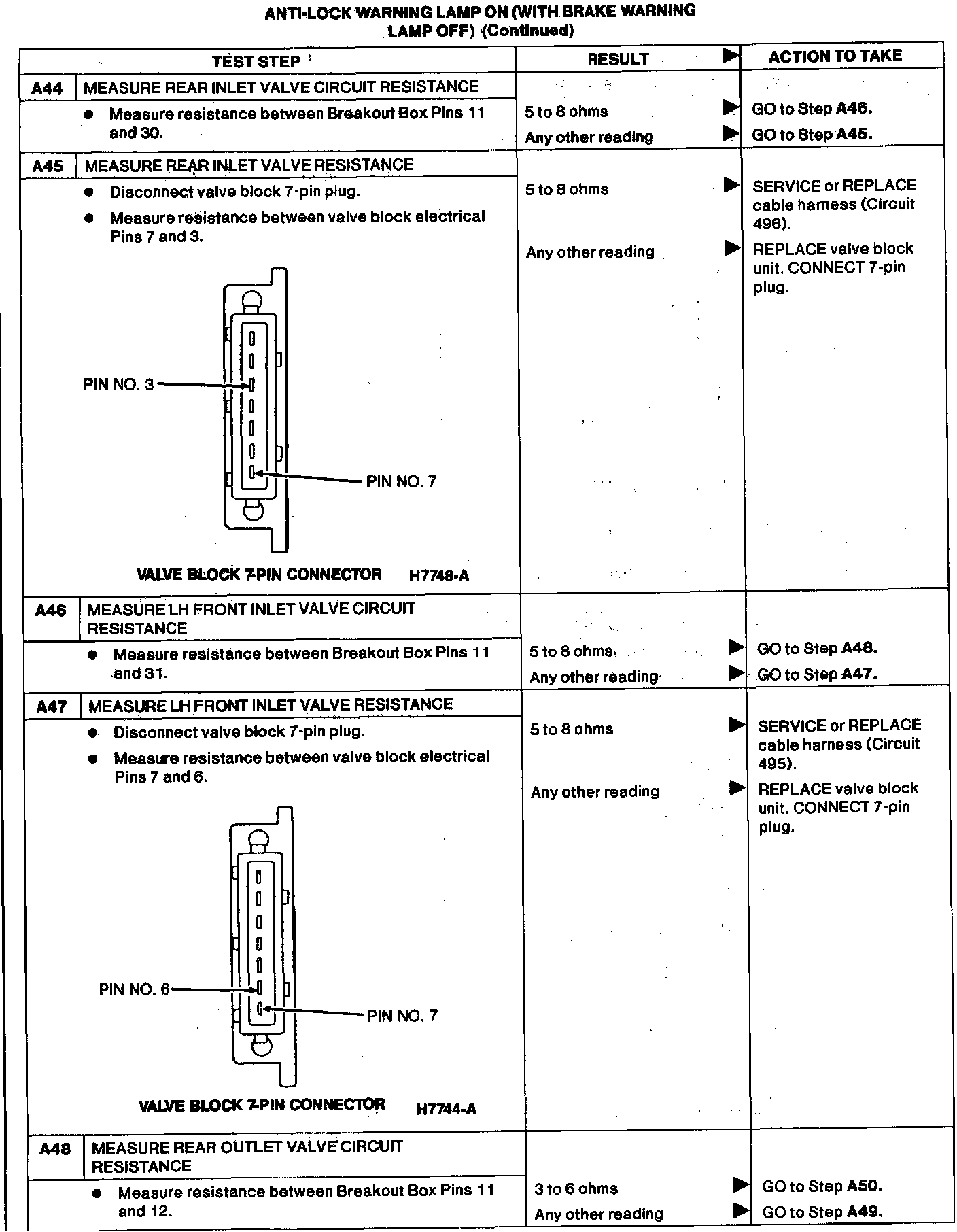

A44-A48:

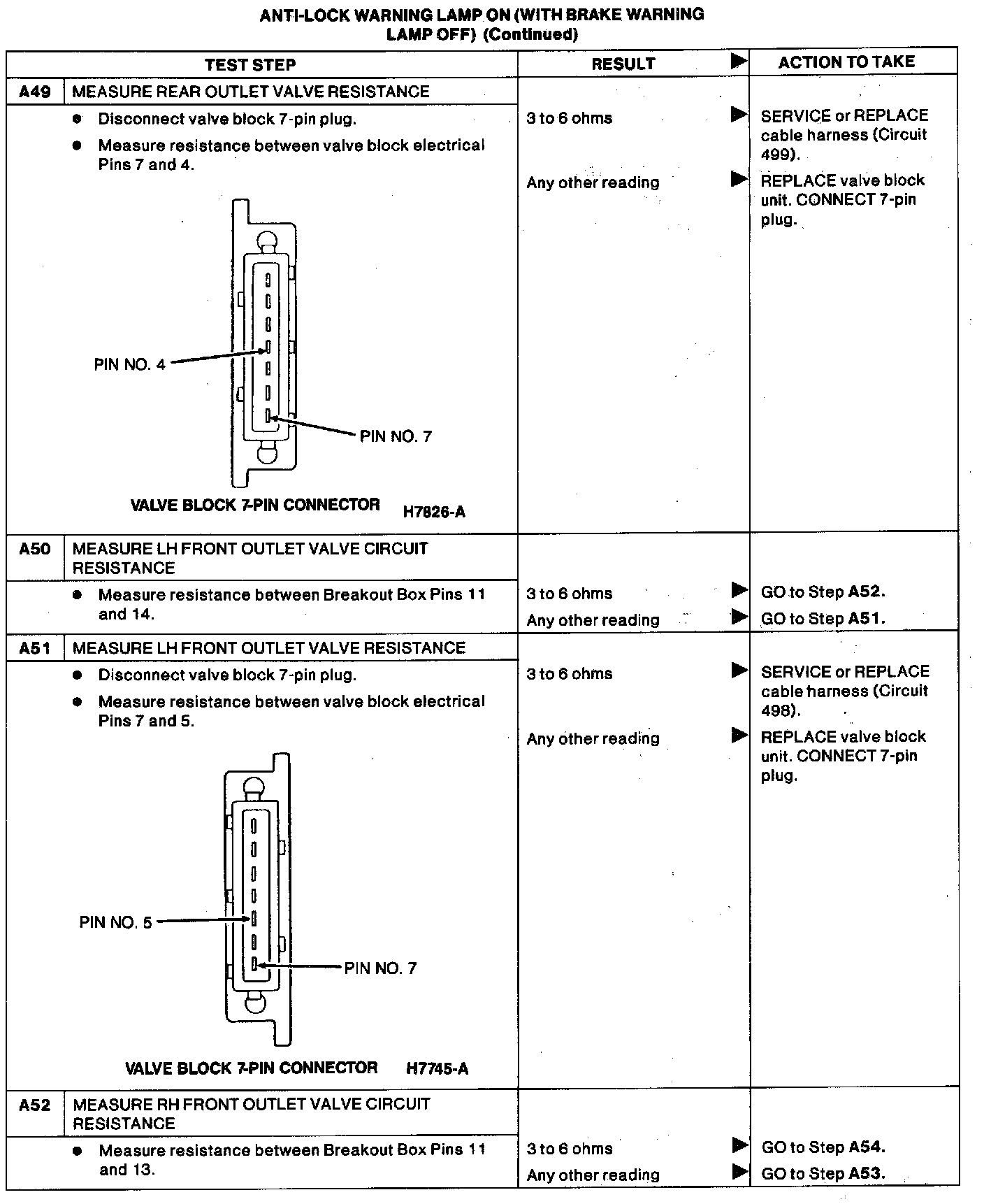

A49-A52:

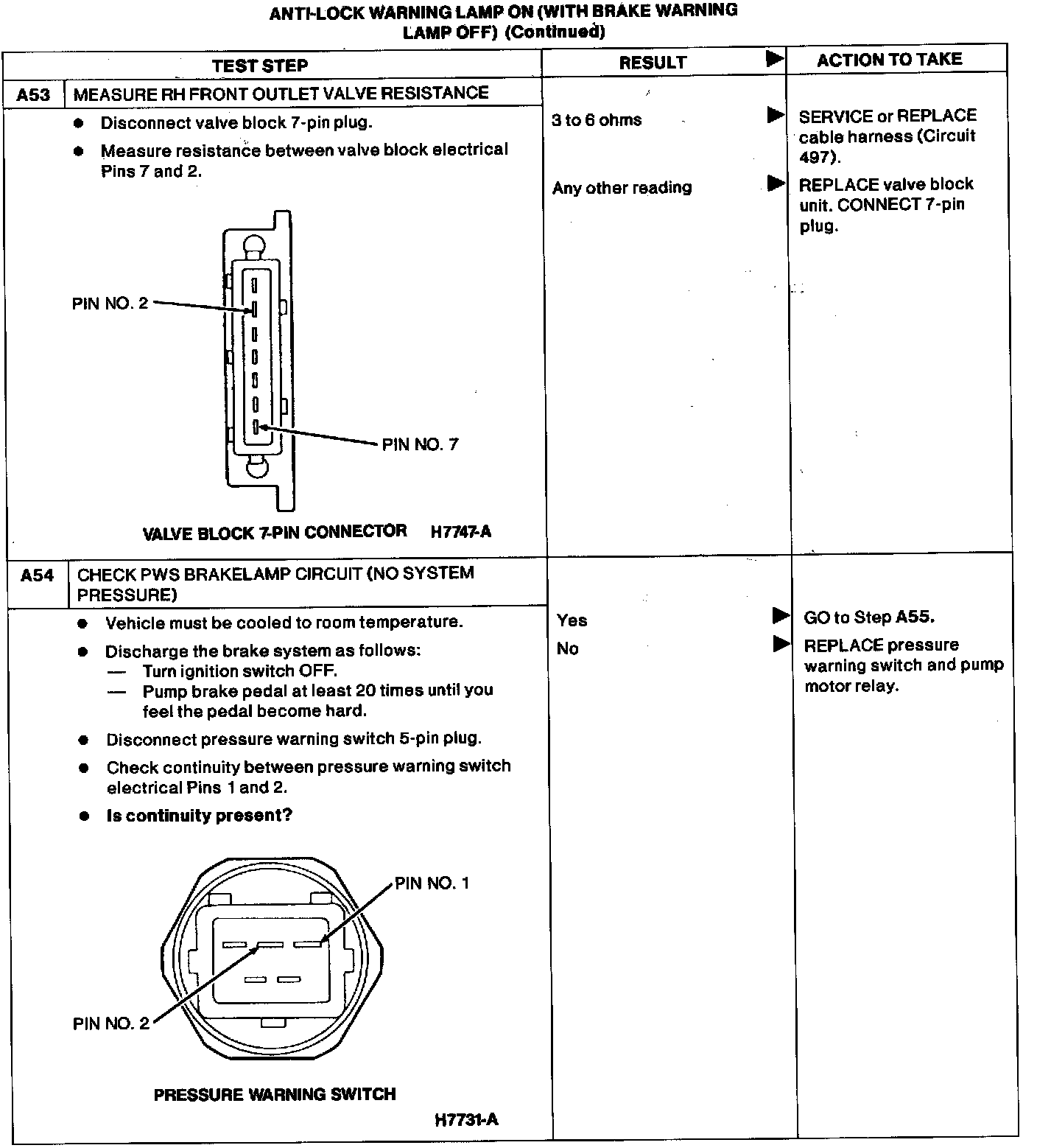

A53-A54:

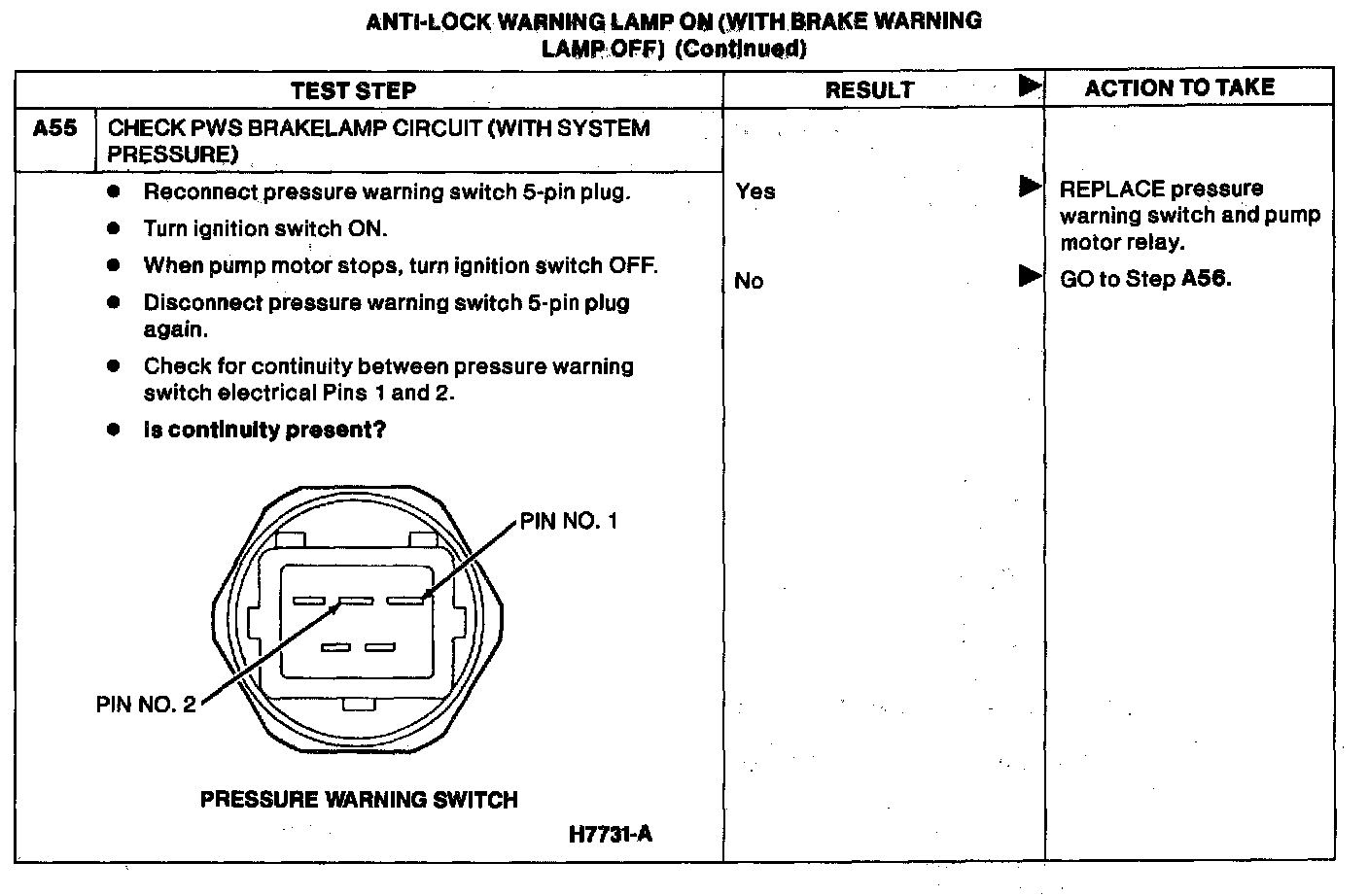

A55:

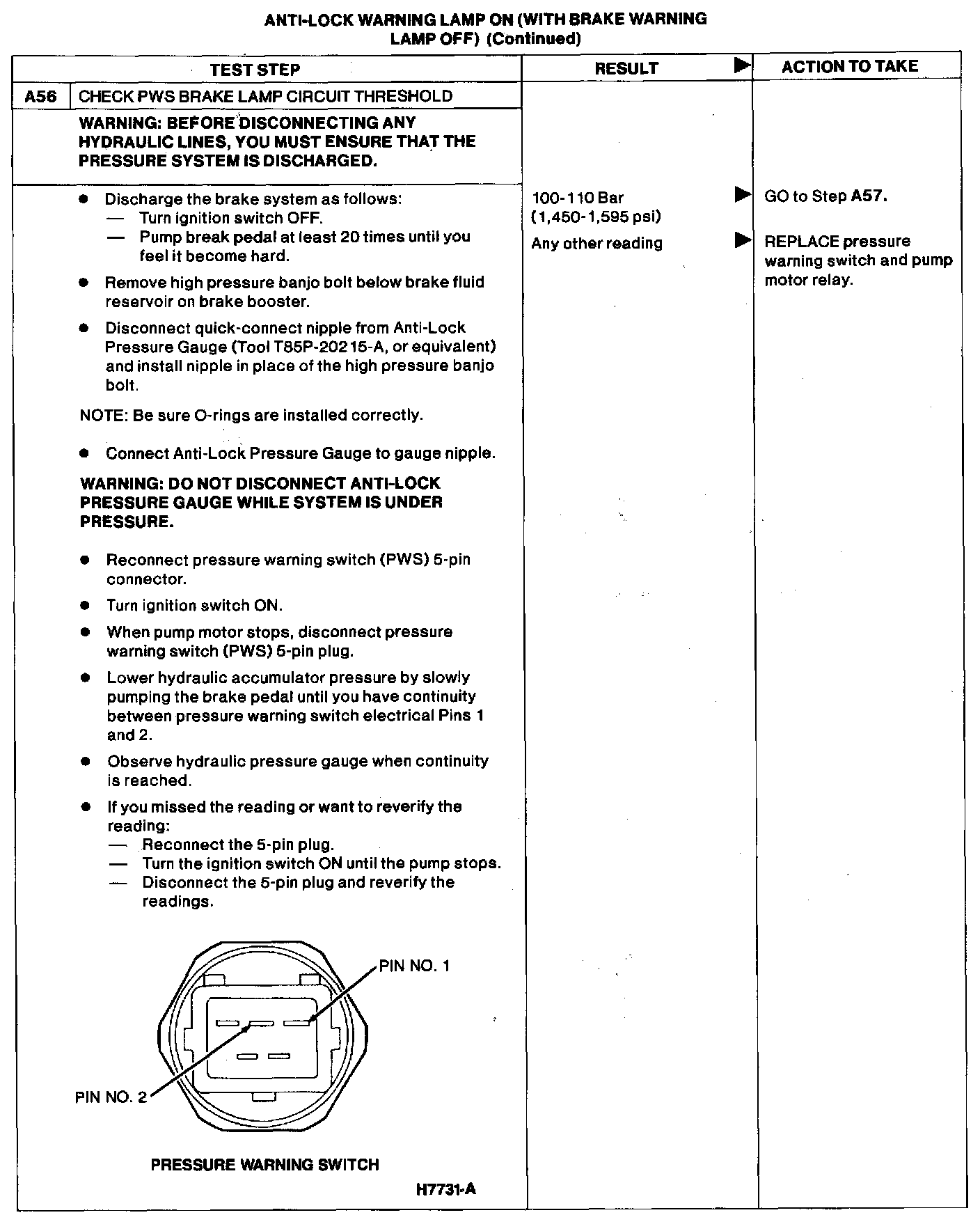

A56:

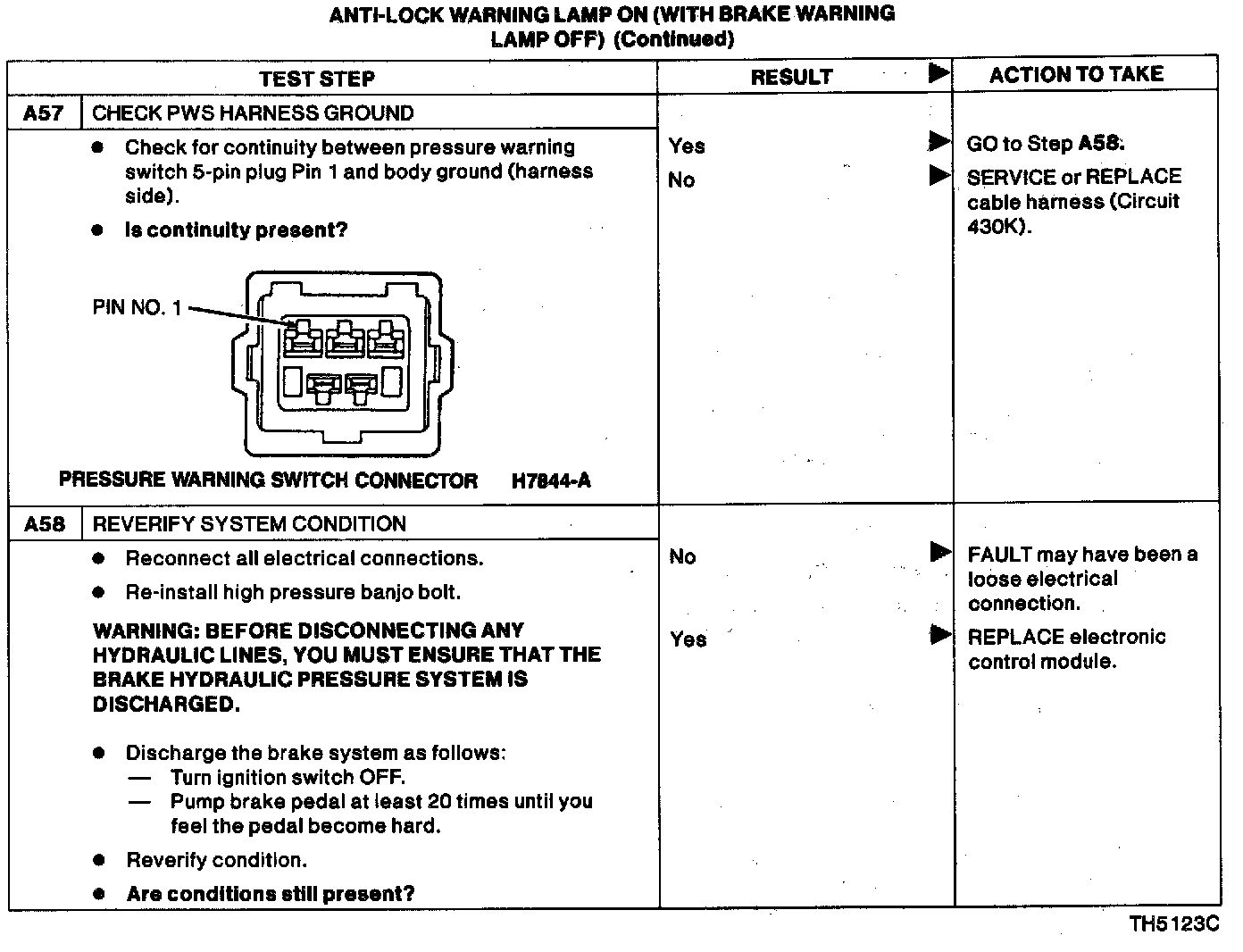

A57-A58:
