Home >> Lincoln >> 1992 >> Mark VII V8-302 5.0L HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trip Computer >> Tripminder Wiring Circuit

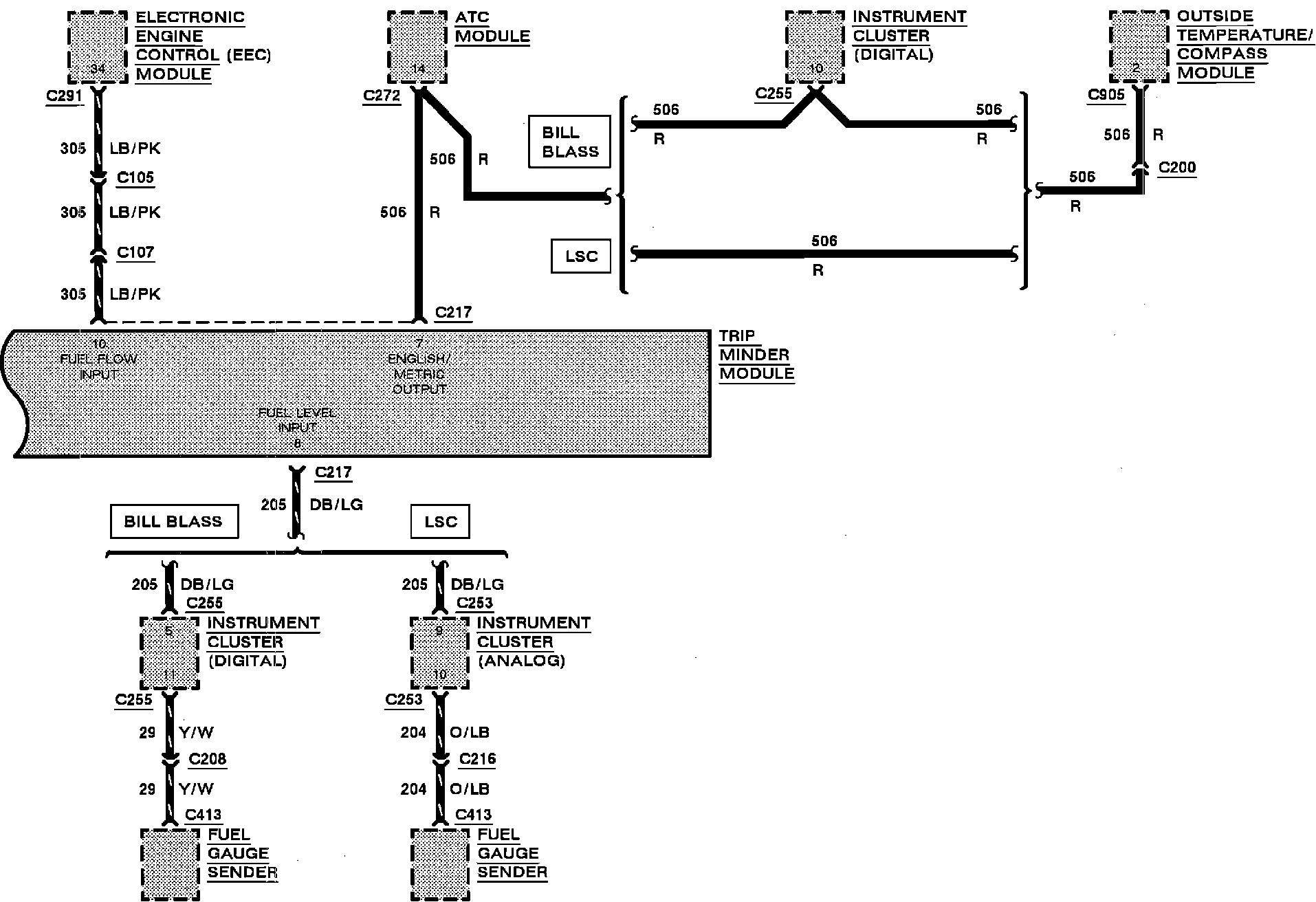

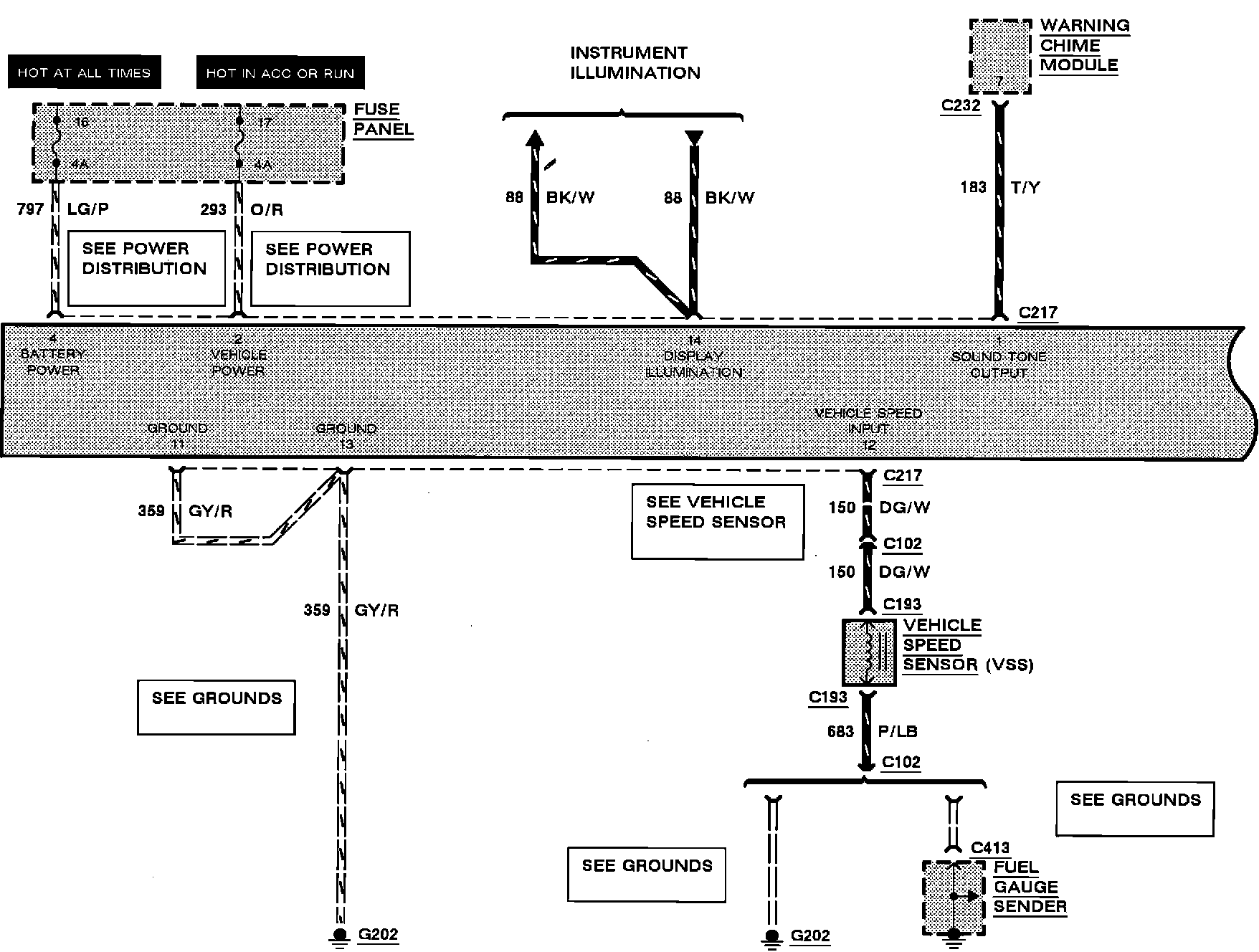

Tripminder Wiring Circuit

Trip Minder:



Trip Minder:
