Home >> Lincoln >> 1992 >> Mark VII V8-302 5.0L HO >> Repair and Diagnosis >> Heating and Air Conditioning >> Relays and Modules - HVAC >> Control Module HVAC >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test B: Panel/ Floor Door Actuator Diagnosis >> B3- B9

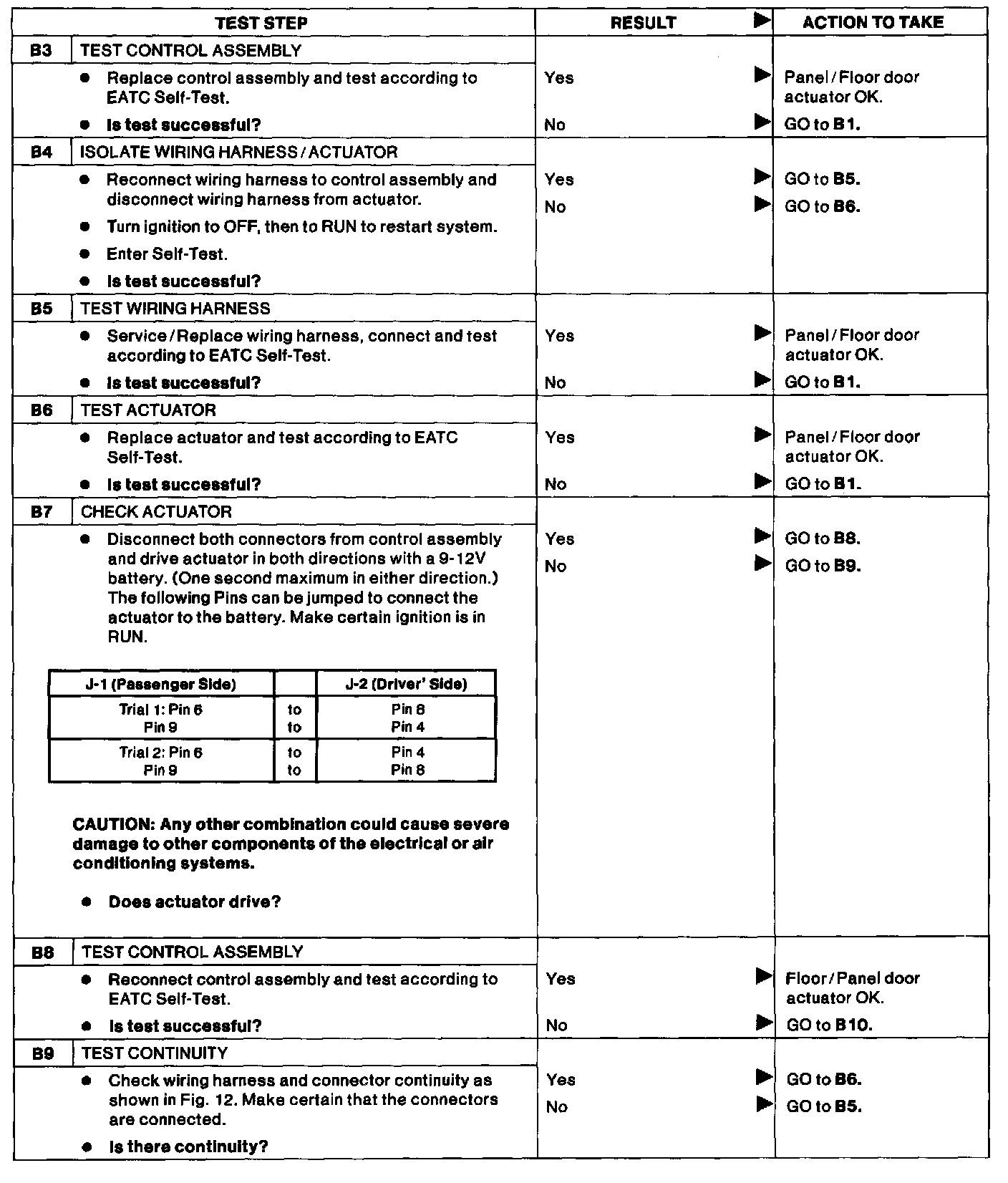

B3- B9
