Technician Safety Information

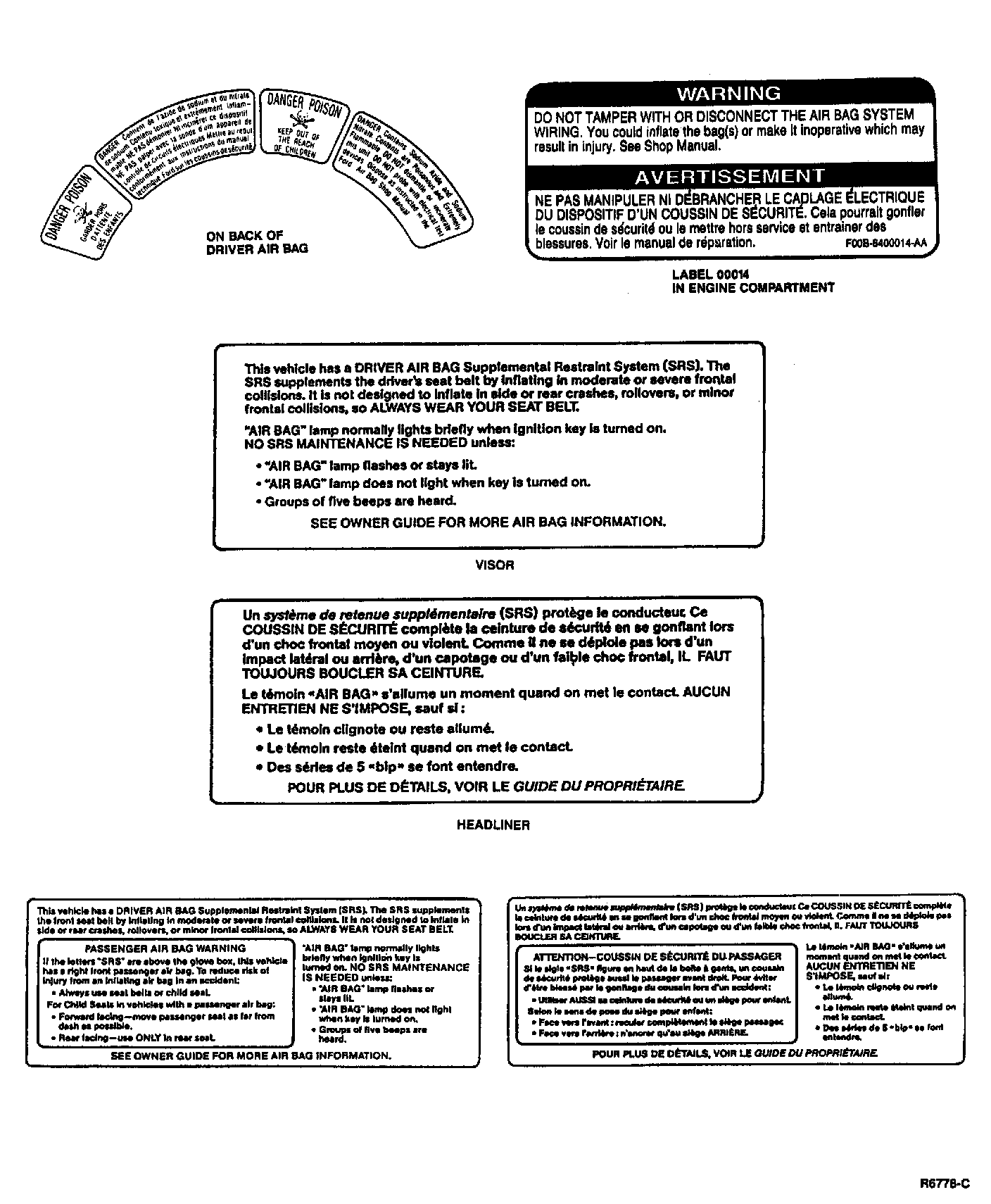

Warning Labels







PARTS REPLACEMENT

Air Bag Modules

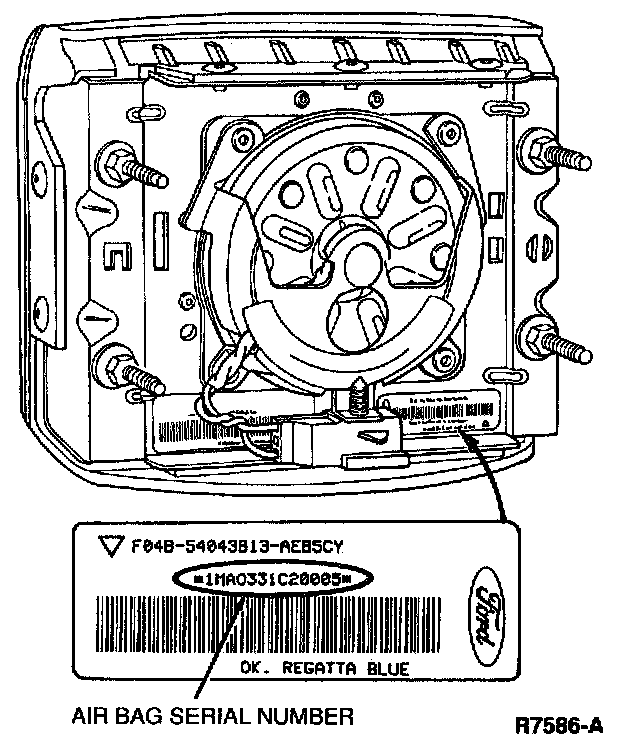

NOTE: When replacing an air bag, a prepaid return postcard is provided with the replacement air bag module. The serial number for the new part and vehicle VIN number must be recorded and sent to Ford Motor Co.

The various major assemblies in the air bag system have been designed to be tamper-resistant and are not to be disassembled for service.

Component may be removed and replaced.

Information on proper handling, storage, and disposal of the air bag inflator assemblies is provided.

Service of Air Bag Equipped Vehicles involved in Accidents
While servicing an air bag equipped vehicle that has been involved in an accident, check sensors and wiring.

SERVICE PRECAUTIONS

WARNING: SAFE HANDLING OF AIR BAG REQUIRES FOLLOWING THE PROCEDURES DESCRIBED BELOW FOR BOTH LIVE AND DEPLOYED AIR BAGS.

ALWAYS WEAR SAFETY GLASSES WHEN SERVICING AN AIR BAG VEHICLE AND WHEN HANDLING AN AIR BAG.

General Instructions
- AIR BAG MODULES WITH DISCOLORED OR DAMAGED COVER DEPLOYMENT DOORS MUST BE REPLACED, NOT REPAINTED.
- BECAUSE OF THE CRITICAL OPERATING REQUIREMENTS OF THE SYSTEM, DO NOT ATTEMPT TO SERVICE SENSORS, CLOCKSPRING, MONITOR, BACKUP POWER SUPPLY OR AIR BAG MODULE. SERVICE IS MADE BY REPLACEMENT ONLY.
- IF EVER A PART IS REPLACED AND THE NEW PART DID NOT CORRECT THE CONDITION, REINSTALL THE ORIGINAL PART AND PERFORM THE DIAGNOSTIC PROCEDURE AGAIN.
- NEVER PROBE THE CONNECTORS ON THE AIR BAG. DOING SO MAY RESULT IN AIR BAG DEPLOYMENT WHICH COULD RESULT IN PERSONAL INJURY.
- ALL COMPONENT REPLACEMENTS AND WIRING SERVICE MUST BE MADE WITH THE POSITIVE BATTERY CABLE DISCONNECTED FOR A MINIMUM OF ONE MINUTE BEFORE SERVICE OR REPLACEMENT IS ATTEMPTED.
- THE INSTRUCTIONS "DISCONNECT" ALWAYS REFERS TO A CONNECTOR. NEVER DETACH A COMPONENT FROM THE VEHICLE WHEN INSTRUCTED TO "DISCONNECT".

VEHICLE SENSOR ORIENTATION IS CRITICAL FOR PROPER SYSTEM OPERATION. IF A VEHICLE EQUIPPED WITH AN AIR BAG SYSTEM IS INVOLVED IN A CRASH WHERE THE FENDERS OR GRILLE AREA HAVE BEEN DAMAGED, INSPECT THE SENSOR MOUNTING BRACKETS FOR DEFORMATION. IF DAMAGED, THE SENSOR SHOULD BE REPLACED WHETHER OR NOT THE AIR BAG IS DEPLOYED. IN ADDITION, ENSURE THAT BODY STRUCTURE IN THE AREA OF SENSOR MOUNTING IS RESTORED TO ITS ORIGINAL CONDITION.
