Air Bag Indicator Fault 23 - Open In Safing Sen Feed Ckt
Air Bag Indicator Fault 23 - Open In Safing Sen Feed Ckt

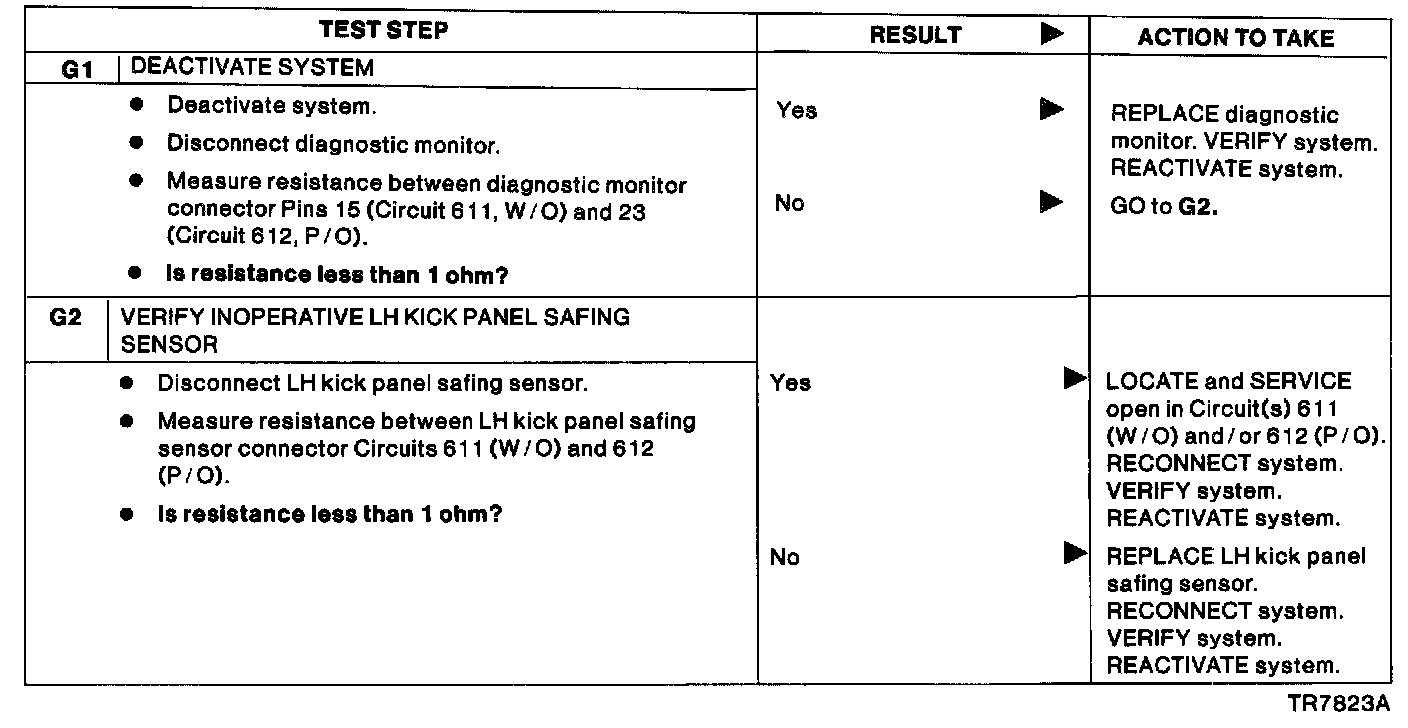

G1-G2:

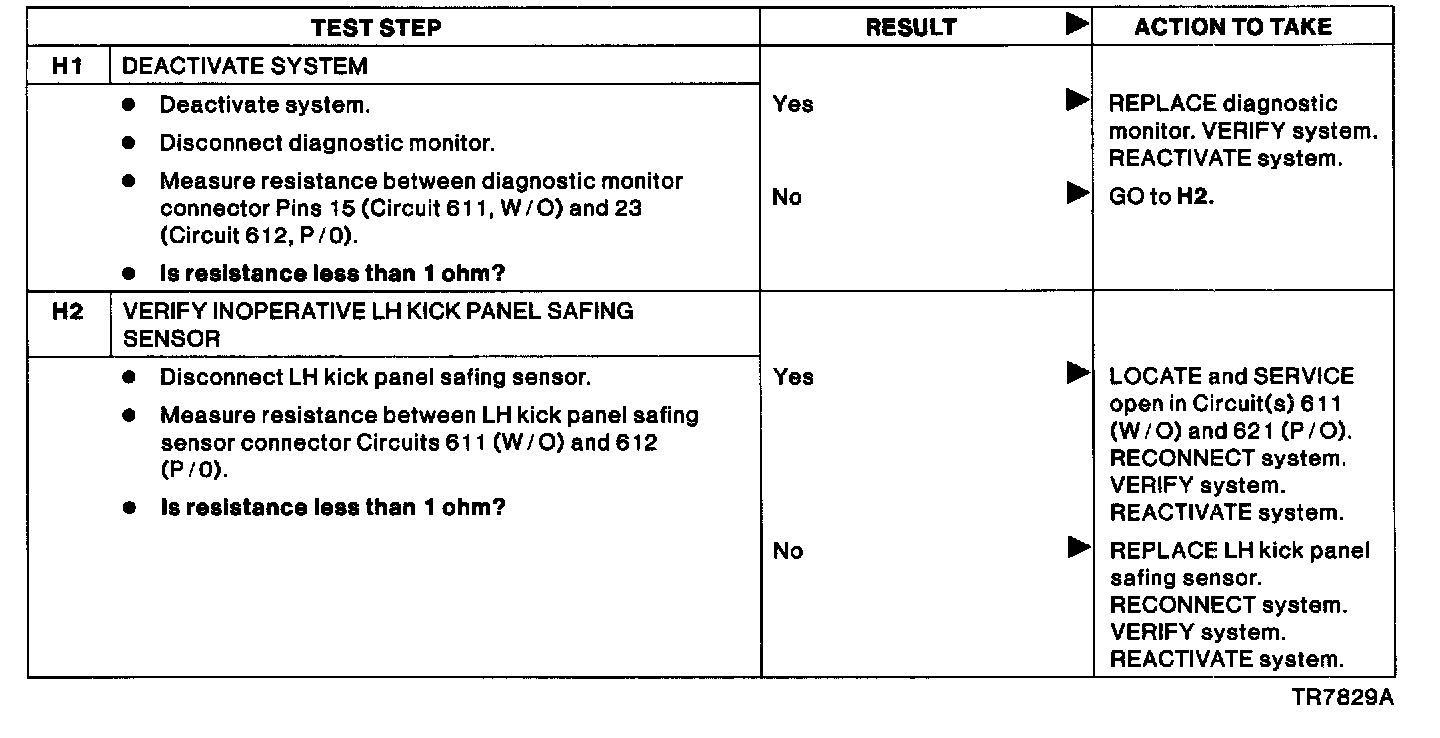

H1-H2:
