Shoulder Portion

ADJUSTMENT

The shoulder restraint portions of the outboard belt system will adjust automatically to a snug fit.

Pull up on shoulder portion of belt to tighten lap portion to a snug fit. Ensure belt is as low on hips as possible.

The belt system allows freedom of movement, locking only on hard braking, cornerning or impacts of approximately 8 km/h (5 mph) or more.

WARNING:
- USE THE SHOULDER BELT ON THE OUTSIDE SHOULDER ONLY. NEVER WEAR THE SHOULDER BELT UNDER THE ARM. NEVER SWING IT AROUND YOUR NECK OVER THE INSIDE SHOULDER. NEVER USE A SINGLE BELT FOR MORE THAN ONE PERSON. BE SURE THE LAP PORTION OF THE BELT IS FITTED SNUGLY AND AS LOW AS POSSIBLE AROUND THE HIPS, NOT ON THE WAIST. FAILURE TO FOLLOW THESE PRECAUTIONS COULD INCREASE THE CHANCE AND/OR SEVERITY OF INJURY IN AN ACCIDENT.

- DO NOT INTRODUCE SLACK INTO THE SAFETY BELT SYSTEM BECAUSE THE BELT LOCKS UPON IMPACT WHERE IT IS POSITIONED. USE THE SHOULDER SAFETY BELT ON THE OUTSIDE SHOULDER ONLY. NEVER WEAR THE SHOULDER BELT UNDER THE ARM. NEVER SWING IT AROUND THE NECK OVER THE INSIDE SHOULDER. NEVER USE A SINGLE BELT FOR MORE THAN ONE PERSON. ENSURE THE LAP PORTION OF THE BELT IS FITTED SNUGLY AND AS LOW AS POSSIBLE AROUND THE HIPS, NOT ON THE WAIST. FAILURE TO FOLLOW THESE PRECAUTIONS COULD INCREASE THE CHANCE AND/OR SEVERITY OF INJURY IN AN ACCIDENT.

After unbuckling the belt, it is recommended that care be taken during retraction to prevent it from striking other passengers, hitting trim panels, or painted surfaces.

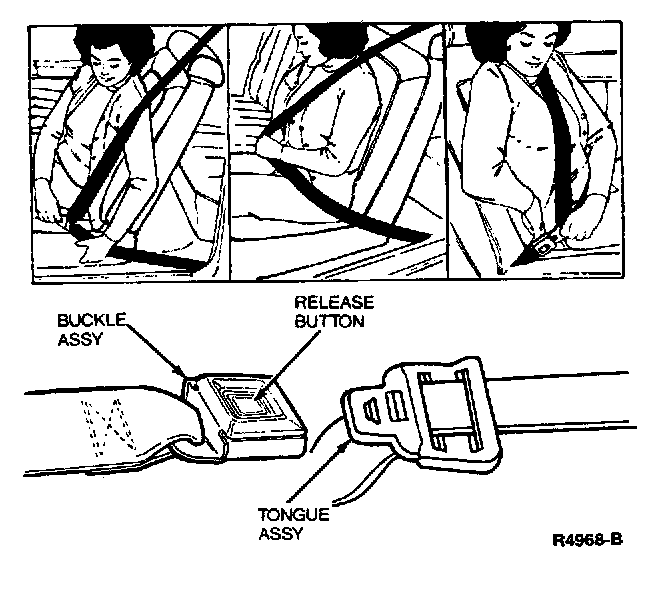

The vehicle is equipped with a manually adjusted lap belt for the rear center seat occupant. Insert the belt tongue into the proper buckle until a snap is heard. Pull on both sides of belt to ensure the buckle is latched. Pull up on the end of the belt to tighten the lap portion to a snug fit. Ensure the belt is as low on the hips as possible.

WARNING: EACH SEATING POSITION IN THE VEHICLE HAS A SPECIFIC SAFETY BELT ASSEMBLY WHICH CONSISTS OF ONE BUCKLE AND ONE TONGUE. THE SAFETY BELT ASSEMBLY IS DESIGNED TO BE USED AS A PAIR AND IS NOT TO BE USED ACROSS SEATING POSITIONS.
