Lincoln
>>
1992
>>
Mark VII V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Suspension Control ( Automatic - Electronic )
>>
Diagrams
>>
Connector Views
Connector Views

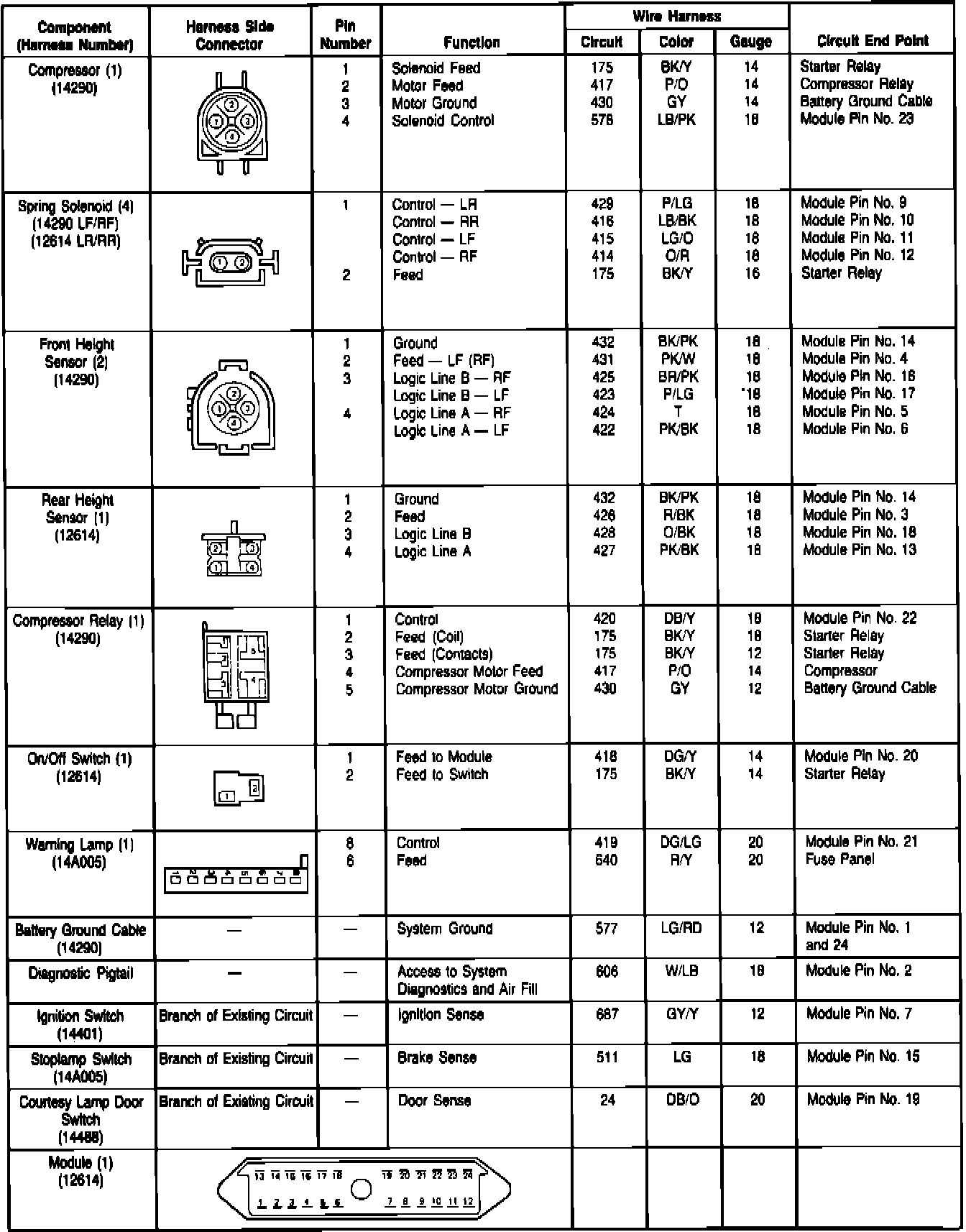

Air Suspension System Connector Identification:

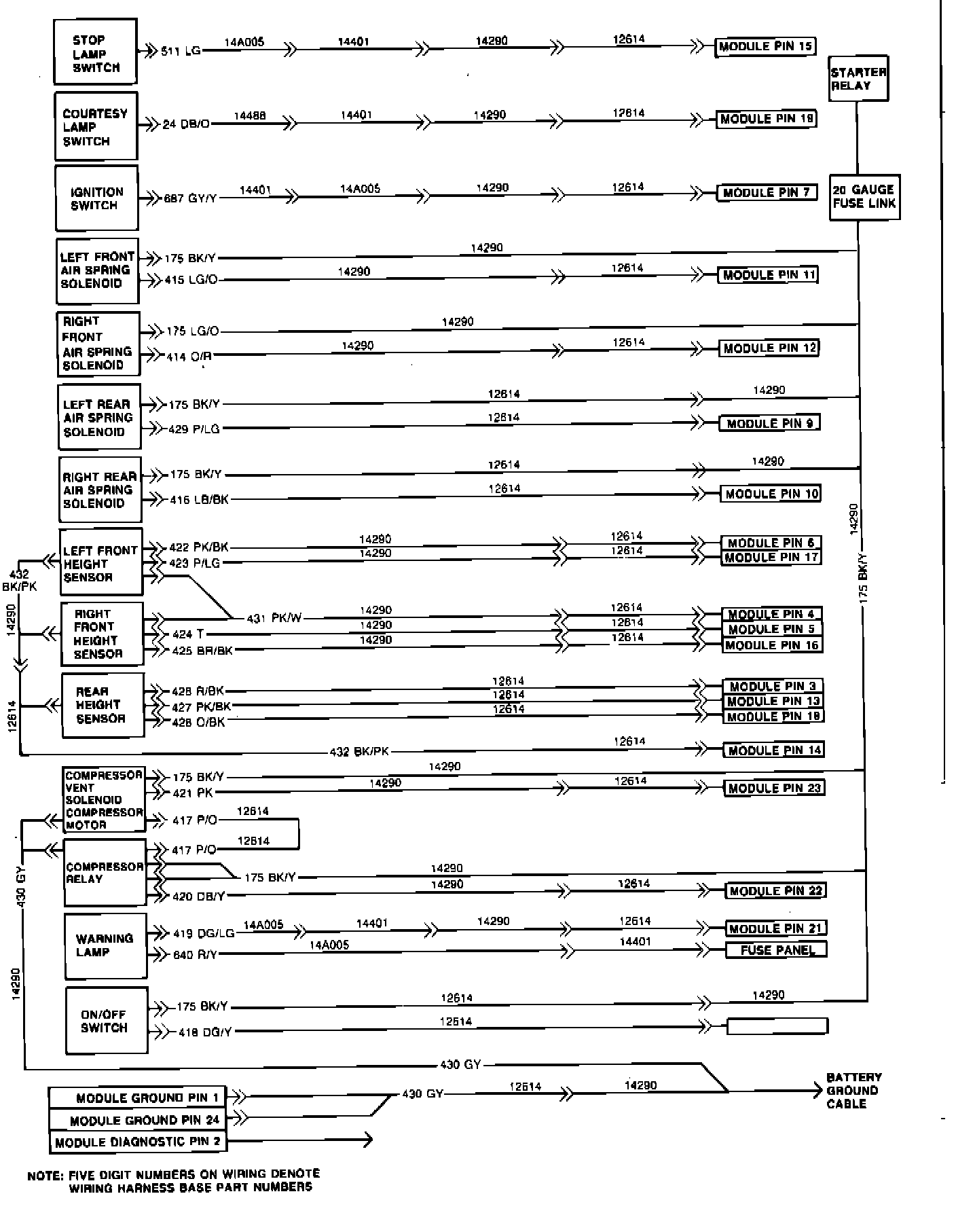

Air Suspension Wiring Circuit:
