Test Schematics: Diagrams

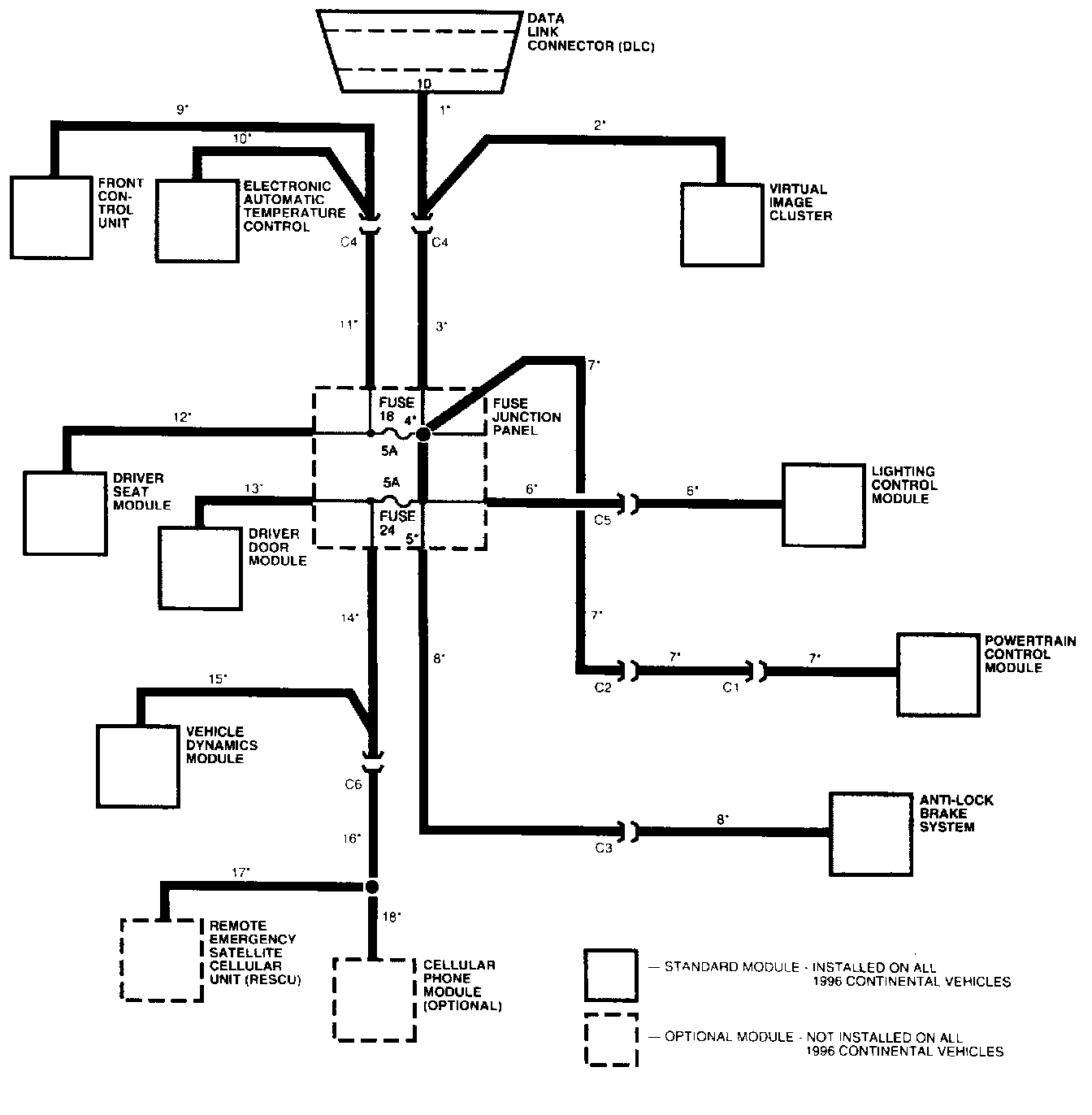

Multiplex Communication Network Circuit 914 (Bus +):

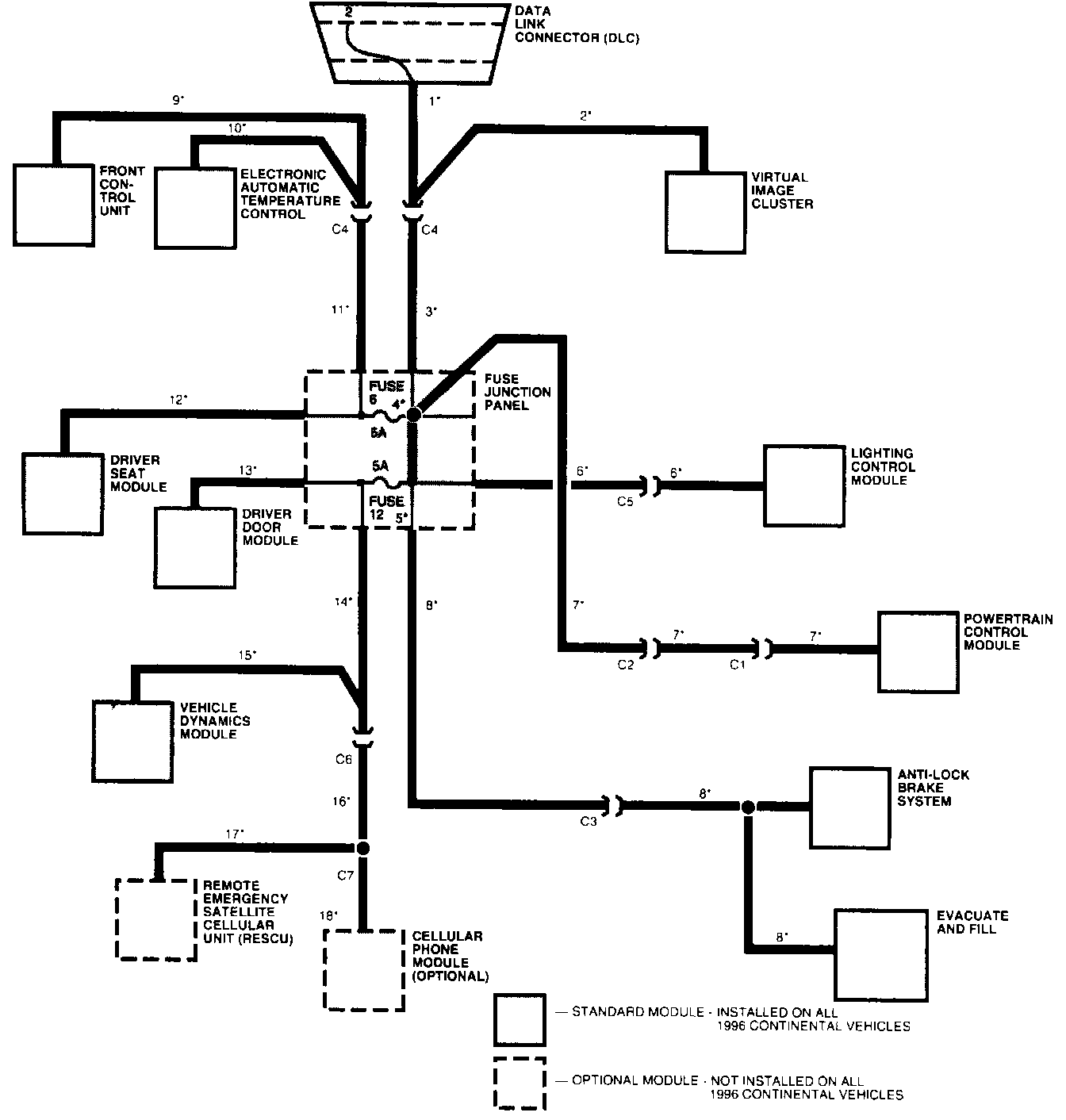

Multiplex Communication Network Circuit 915 (Bus -):

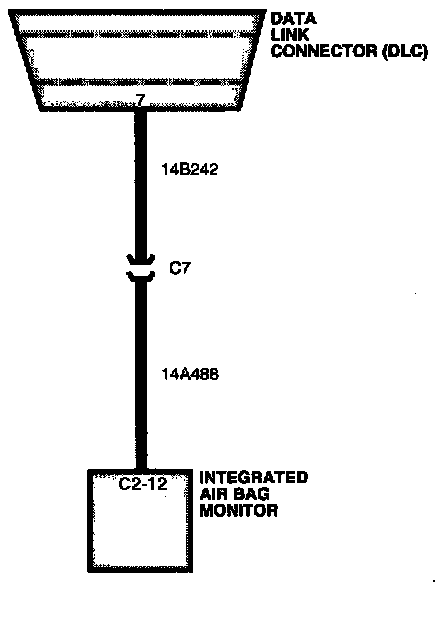

Data Link Connector To Integrated Air Bag Monitor:
