Fuse 21

Fuse 21 - Protects the following circuits:
^ Evaporative Emissions (EVAP) Canister Vent Solenoid
^ EVAP Vapor Management Valve
^ Heated Oxygen Sensors
^ Transmission Solenoids

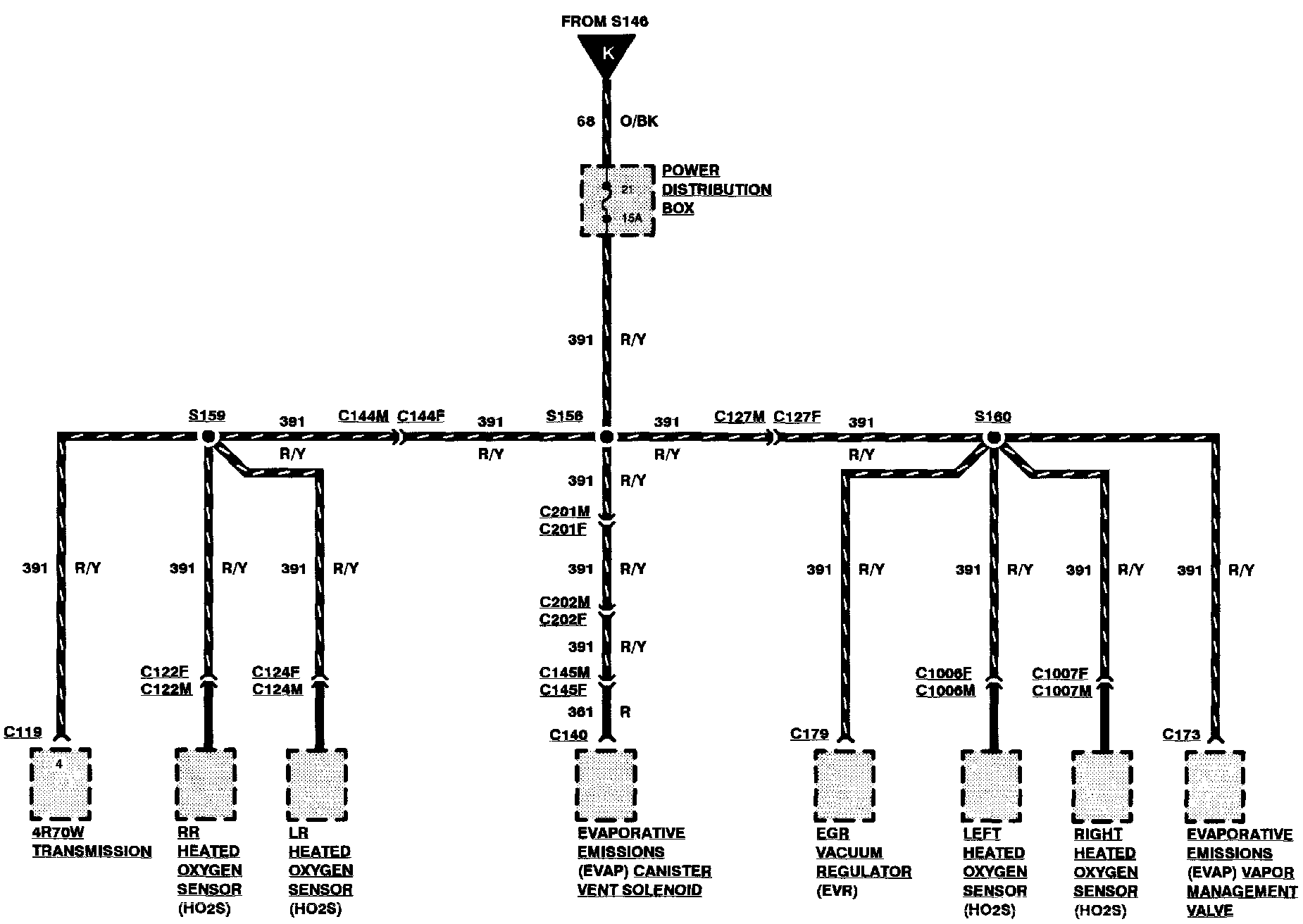

Power Distribution:
